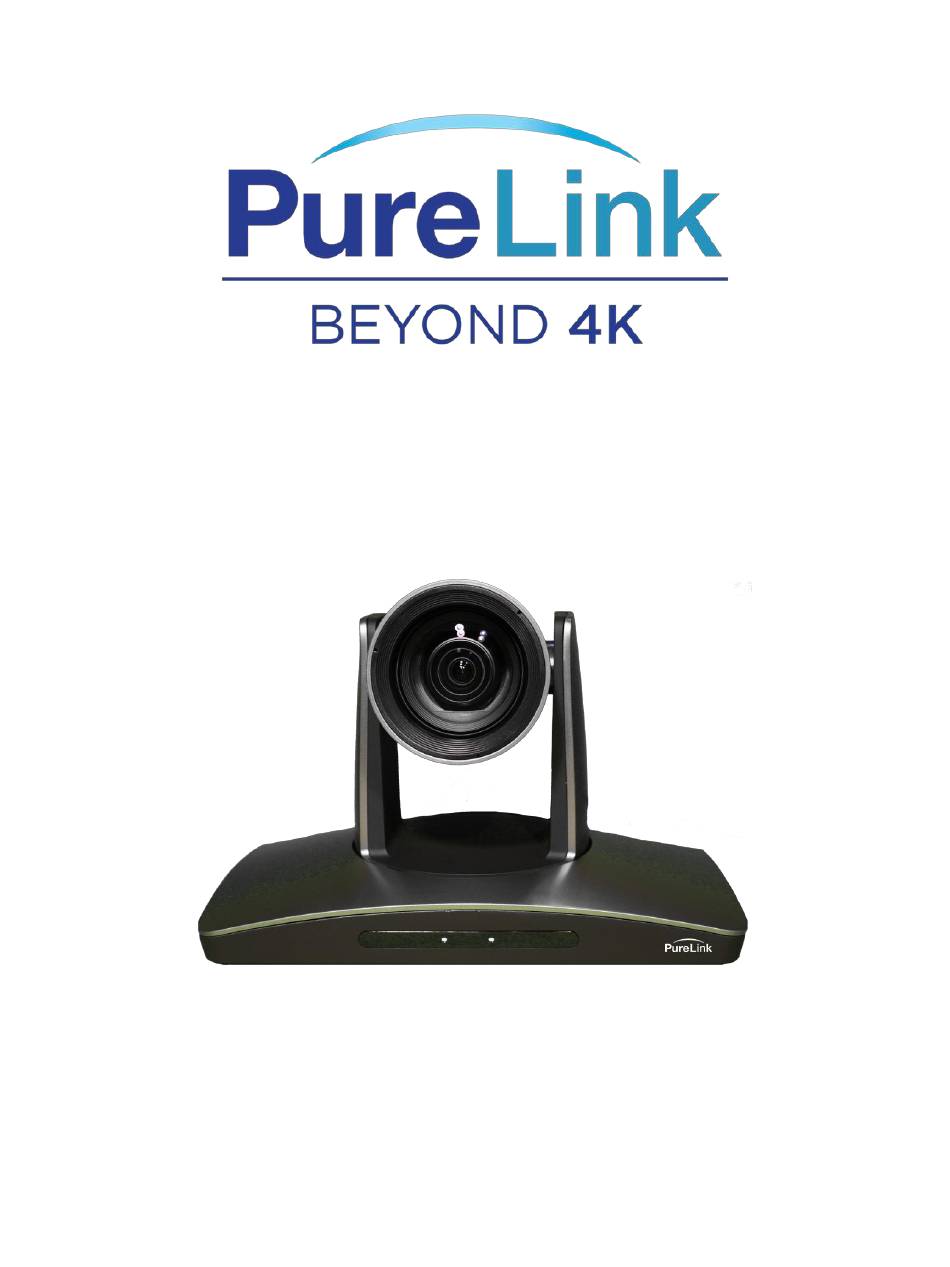

- Page 1 Purelink VIP-CAM-30-20x User Manual V1.0 VIP-CAM-30-20x Pro PTZ Camera with HDMI, USB 2.0, & LAN Output...
-
Page 2: Table Of Contents
Purelink VIP-CAM-30-20x User Manual V1.0 Contents What’s in the Box ............................3 Product Description ............................3 Specifications ..............................3 HDMI Video Output Formats ........................3 Network ................................. 4 Features ..............................4 Protocols ..............................4 Panels ................................4 Front ................................4 Rear ................................5 Bottom ...............................5 Remote ................................6 Installation ..............................7... -
Page 3: What's In The Box

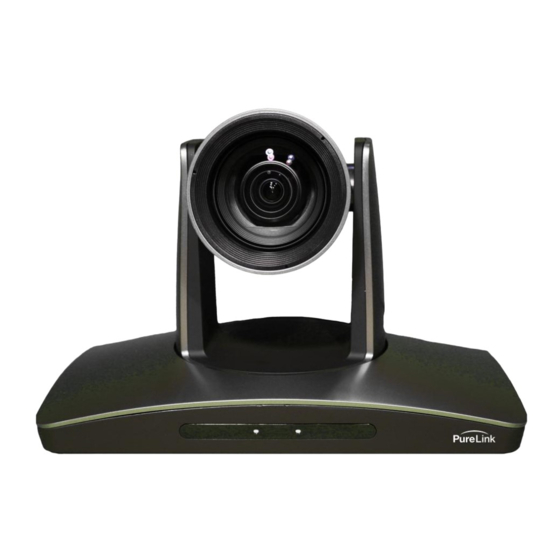

Purelink VIP-CAM-30-20x User Manual V1.0 What’s in the Box 1x VIP-CAM-30-20x 1x RS-232 Cable 1x Remote Control Product Description The VIP-CAM-30-20x is a 1080p camera with 20x optical zoom & and 8x digital zoom for capturing HD images from long distances. -
Page 4: Network
Purelink VIP-CAM-30-20x User Manual V1.0 Network Features Max Support 1920x1080@30 Image Compression H.265, H.264 Audio Compression support AAC Support Dual Stream Protocols TCP, UDP, RTSP, ONVIF Panels Front 20x Optical, 8x Digital Power LED Indicator... -
Page 5: Rear
Purelink VIP-CAM-30-20x User Manual V1.0 Rear HDMI Out USB 2.0 Audio In Ethernet RS232 In RS232 Out 12VDC power inlet Bottom Dip Switch Mounting Holes... -
Page 6: Remote
Purelink VIP-CAM-30-20x User Manual V1.0 Remote Home: returns camera to default position Camera select: Sets remote for control of cameras addressed to 1,2,3 or 4. Functions: Reserved for future Auto/Manual Focus: Sets camera to auto or manual focus mode Focus Trigger Focus: Performs auto focus when pressed. -
Page 7: Installation
Purelink VIP-CAM-30-20x User Manual V1.0 Installation The VIP-CAM-30-20x can be oriented the following ways: Wall Mount Ceiling Mount (Optional) Device Management Device Connection Connect the camera to the network via an Ethernet cable, then power on the camera... -
Page 8: Wan Connection
Purelink VIP-CAM-30-20x User Manual V1.0 WAN Connection When using WAN the CameraCMS software cannot automatically search for the camera(s) compared to LAN. This is a 3 Step process to search for the cameras using WAN Step One: Set the camera’s IP address in LAN: connect the user PC to the LAN (Router 1) where the camera is connected according to the LAN connection instructions, using the Camera Control Software locate and find the camera, then add it to manage;... -
Page 9: Search And List The Camera
Purelink VIP-CAM-30-20x User Manual V1.0 Search and List the Camera CameraCMS Software: Install and open the CameraCMS software on the PC, open “Device Management” If the camera is in the LAN of PC, click “Start Search”, then searching starts and all online devices will be listed, as the... -
Page 10: Configuration
Purelink VIP-CAM-30-20x User Manual V1.0 To control and preview a camera, choose the device first, modify its IP address to the IP address of the same LAN, then click “Add to Client” as the picture shown below. If it is a camera in the WAN, click “WAN access” directly to add the camera. - Page 11 Purelink VIP-CAM-30-20x User Manual V1.0 **It should be noted that higher definition, resolution, etc. also mean higher bandwidth requirements of the network.** Bitrate Type: CBR and VBR Frame rate: Represents the number of frames per a second Key frame interval: Configure the number of frames between the two key frames.
-
Page 12: Network
Purelink VIP-CAM-30-20x User Manual V1.0 Network Port: streaming port(RTSP) and application port(SDK connection) can be configured. The range of stream ports is 3479~7999 and 554, the default is 554. The range of application ports is 3479~7999, the default is 5000;... -
Page 13: Transparent Transmission
Purelink VIP-CAM-30-20x User Manual V1.0 Transparent Transmission Function: Transmit commands through VISCA-over-IP, Transmit the status code of camera, Enable: enable transparent transmission; Protocol: choose TCP or UDP protocols; Camera: choose Client or Server; IP: when the camera is set as client, the IP address of the transmitted camera is needed. When the camera is set as server, the IP address can be left as black;... -
Page 14: Upgrade
Purelink VIP-CAM-30-20x User Manual V1.0 Upgrade Click “Upgrade” menu to enter the main interface, as the picture shown above. Click … to search and load the updating firmware, then click “Upgrade” to start upgrading. Do not power off the camera during upgrading. -
Page 15: Preview
Purelink VIP-CAM-30-20x User Manual V1.0 b) Whether time information and display format are displayed on CMS video; c) NTP (network time service) configuration. Preview Introduction to Video Preview Click “Main View” to get into camera control and preview part as below. - Page 16 Purelink VIP-CAM-30-20x User Manual V1.0 Device Control: Any camera selected in the “Device List” can be controlled via the remote Video Preview: Double click the camera in the “Device List”, the mainstream of the camera will be displayed, or you can also select the sub-stream through clicking the right button for display.
-
Page 17: Menu
Purelink VIP-CAM-30-20x User Manual V1.0 Menu Category Options Function Used to adjust the sharpness of image and image edge. The higher the sharpness, the higher and clearer SHARPNESS the contrast. But the sharpness value is too high, easy to cause the image distortion. - Page 18 Purelink VIP-CAM-30-20x User Manual V1.0 PTZ TRIG AF When the camera moves horizontally, vertically and multiplies, it automatically focuses. POWER UP This operation is performed when the camera is powered on and doesn't receive the control command. PROTOCOL Change the camera address by software without setting the camera address through dip switch.
-
Page 19: Warranty
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its... - Page 20 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
