Summary of Contents for PureLink RPS-1218

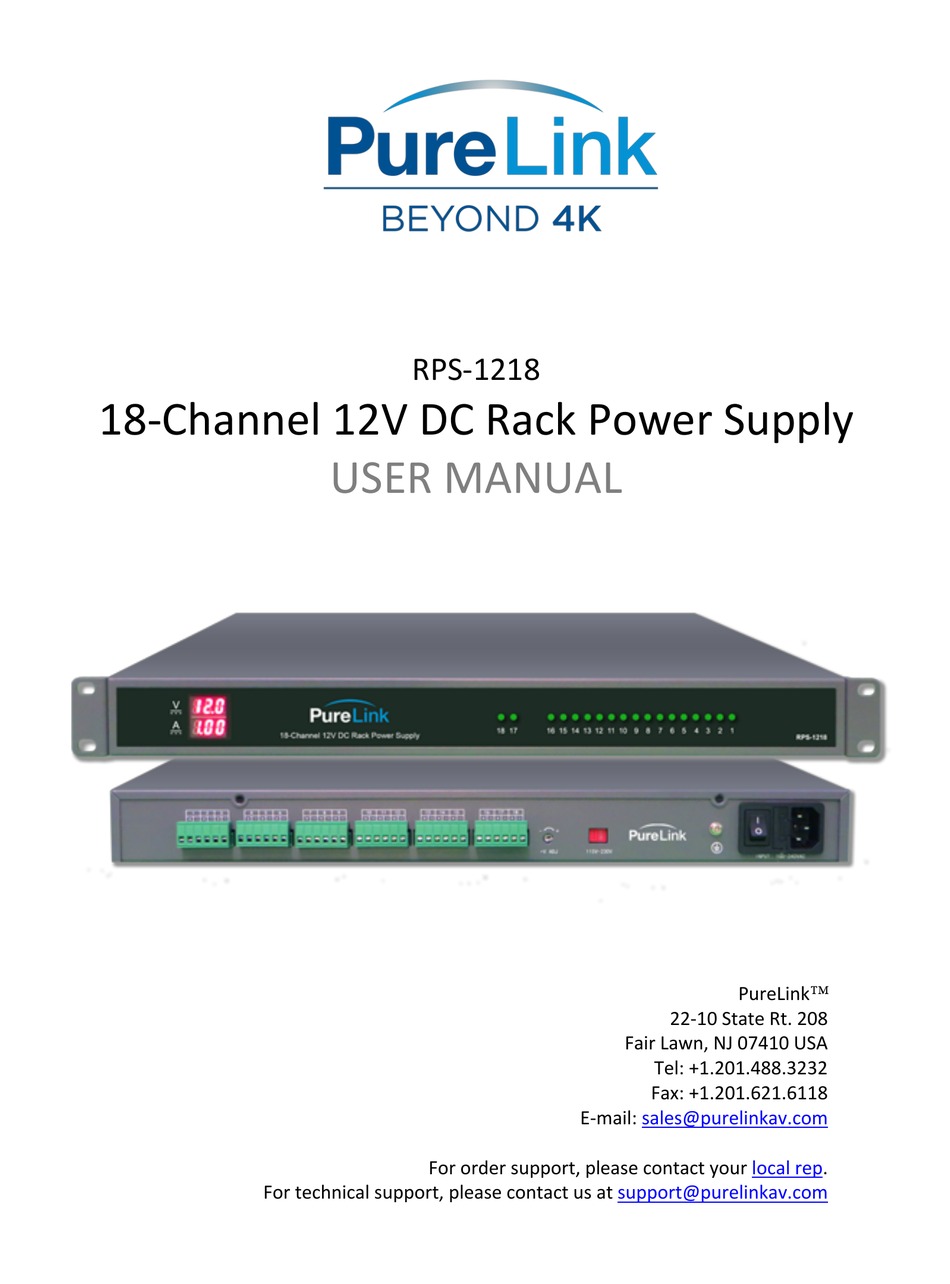

- Page 1 RPS-1218 18-Channel 12V DC Rack Power Supply USER MANUAL PureLinkÔ 22-10 State Rt. 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local rep. For technical support, please contact us at...
-
Page 2: Table Of Contents
Decoding/Viewing with VLC Player ............Error! Bookmark not defined. Decoding/Viewing with YouTube Live ............ Error! Bookmark not defined. Decoding/Viewing with Facebook Live ........... Error! Bookmark not defined. Glossary ..................Error! Bookmark not defined. PureLink™ Three (3) Year Limited Warranty ................9 RPS-1218 User Manual (ver. 1.0) -
Page 3: What's In The Box
RPS-1218 • 1 x RSP-1218 1U Rack Power System • 1 x IEC Power cable for 120VAC Optional Accessories • RPS-12VDC-leadpack Use Manual can be found online in the Resources tab of the VIP-STREAM-100 product page. RPS-1218 User Manual (ver. 1.0) -
Page 4: Product Description
Product Description The RPS-1218 rack power supply system provides eighteen channels of 12 VDC outputs using installation convenient phoenix output connectors. Each output is protected by an automatic PTC fuse, providing protection from overcurrent and shorts. Output channels 1 through 16 provide up to... - Page 5 Provides real time total current draw of outputs Master output voltage fine adjustment Allows fine tune adjustment of system output voltage level Output channel status indicators Displays on/off status of each output channel. Normally on (greed led), off condition would indicate PTC fuse activation. RPS-1218 User Manual (ver. 1.0)
- Page 6 Rear Panel Input Mains selector Ground lug IEC power inlet 12v DC Outputs RPS-1218 User Manual (ver. 1.0)
-
Page 7: Things To Know Before You Start
Outputs 1-16 The maximum current capacity of each output 1 through 16 is 1.6 Amps. Please note the total current capacity of the RPS-1218 is 20 Amps. Outputs 17-18 The maximum current capacity of each output 17 and 18 is 5 Amps. Please note the total current capacity of the RPS-1218 is 20 Amps. - Page 8 PTC fuse protection In the event of a PTC fuse engaging, the fuse will automatically reset upon correction of a short condition, and/or reduction of thermal overload. RPS-1218 User Manual (ver. 1.0)
-
Page 9: Purelink™ Three (3) Year Limited Warranty
You may also have other rights which vary from state to state. TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial... - Page 10 PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
