Summary of Contents for SINAMICS SM120

Page 1 SM120 Module User Guide V1.01...
Page 2 USING THE UNIT SAFELY INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS About Notices. Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly. Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.
Page 3 Be sure to use only the AC adapter supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adapter’s body. Other AC adapters may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.
Page 4: Power Supply
At regular intervals, you should unplug the AC adapter and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time.
Page 5: Top Panel

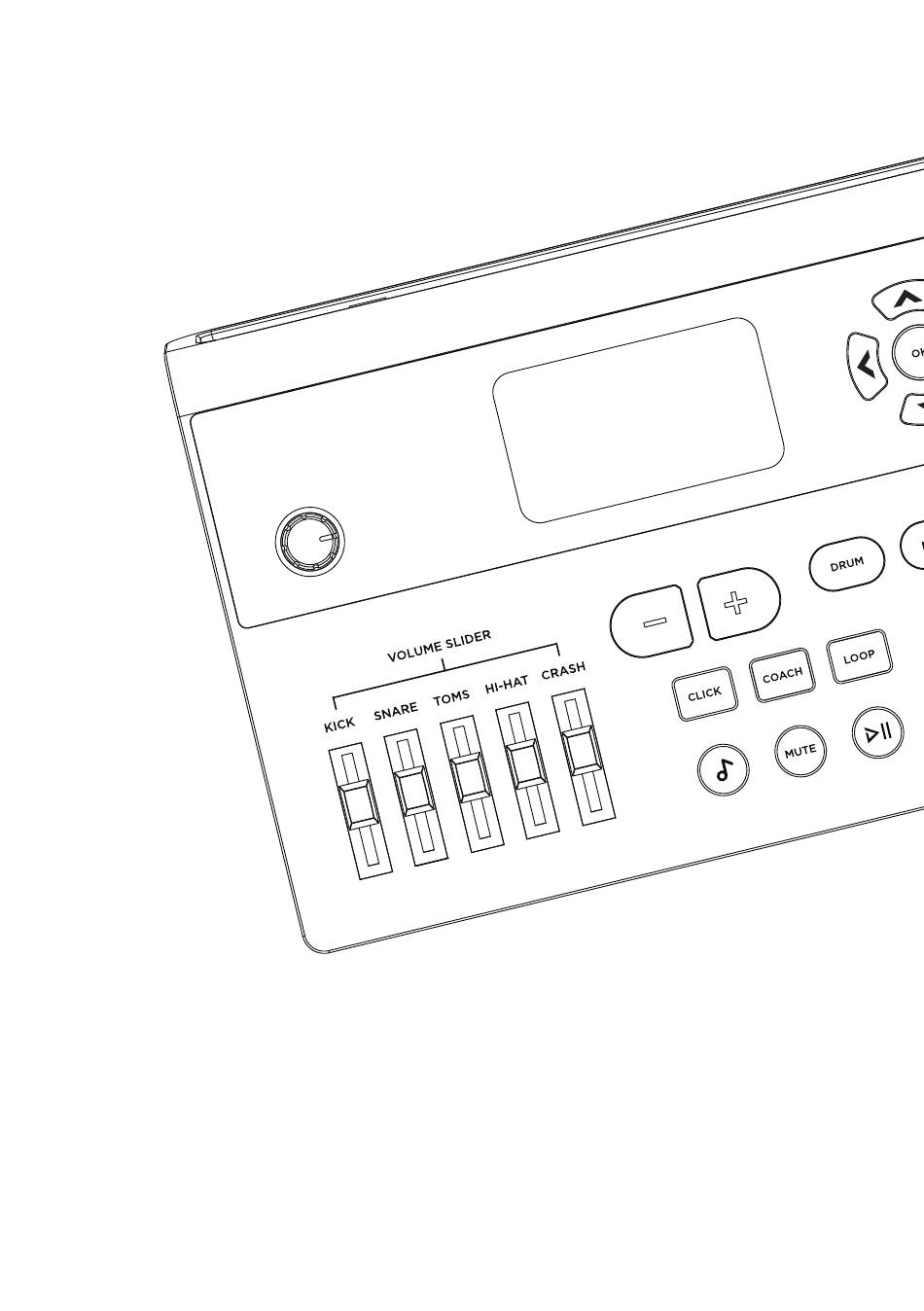

TOP PANEL 1. Screen 6. [♪] This shows the drum kit name in Press this to play back a song or playing mode, or other information access the song-related settings. displays will appear. 7. [MUTE] 2. Volume knob When a song is playing back, use Adjusts the volume of the unite.
Page 6: Jack Panel
11. Cursor [< > 15. [MENU] Use these buttons to move the Press this button to set the menu. cursor on the screen. 16.[PAD] 12. [OK] Review the sounds, when setting the sounds, press this button to Press this button to save the setting listen the sounds.
Page 7 1. CRASH 2 6. USB MIDI Use this jack to add a Crash. Using as MIDI device to connect PC. 2. TOM 4 7. DC IN jack Use this jack to add a Tom. Connect the included power adapter here. 3.
Page 8: Use Guide
Use Guide D. Indicate the name of drum kit. The name of user kit can not be To prevent damage to your hearing, exceed 13 characters. speakers and other audio equipment, reduce the volume and have the power E. Indicate the velocity of hitting. off before connecting to any other The greater the force, the more equipment.
Page 9: Loop Function
LOOP FUNCTION Rhythm 7 different click patterns are available. Short press [LOOP] to enter into LOOP mode. Then long press [LOOP] to enter into the setting of LOOP. Volume Controls the metronome volume. Range: 0-127. Controls the pan of the metronome output, 0=Fully Left, 64=Centre, A.
Page 10: Song Mode
SONG MODE Note: 1. The unit can only save one loop file, when record again, the previous Press [♪] to enter into song mode. recorded file will be overwritten. (As shown below) 2. If the maximum number of recorded notes (1000) is exceeded, the recording will stop automatically.
Page 11 MENU Press [MENU] to enter the setting of MENU. (As shown below) COPY Press [OK] to copy the current drum kit and enter into the edit interface. DELETE To delete the current drum kit, press Use [∧] and [∨] to select the option [OK] to pop up the confirmation to set, press [OK] to enter the setting, interface (preset drum kit cannot be...
Page 12: Pad Setting
Sensitivity Changes how sensitive the pad is, adjust from 1-32. 1 is low sensitivity, 32 is most sensitive. Curve At this interface, use [+], [-] or [∧], This setting allows you to control [∨] to select sound. Long press [+], the relation between playing [-] to quickly browse the sound list;...
Page 13 The sound is at the maximum velocity. volume This occurs in particular at the decaying edge of the waveform. Re-trigger Level detects such distortion in and prevents strength Mask Time re-triggering from occurring. When set to high value, it will be difficult This setting prevents double to play very quickly.
Page 14: Midi-Related Settings
MIDI-RELATED SETTINGS System Real MIDI device information output. Default value is OFF. MIDI CODE Specifies a MIDI code for a pad. Use [∧], [∨] to select the parameters When the MIDI code of several pads to be adjusted, and use [+], [-] to is same, “*”...
Page 15: Options Setting
OPTIONS SETTING Use [∧] and [∨] to select the parameters to be adjusted, and use [+] and [-] to modify the value or type of the selected parameters. LCD CONTRAST Adjust the display contrast. Range: 0-20 AUTO TRACE Turn on or off the pad tracking function.
