Air Techniques H4150 Replacement Instructions

Mojave lt motor replacement kit

Introduction

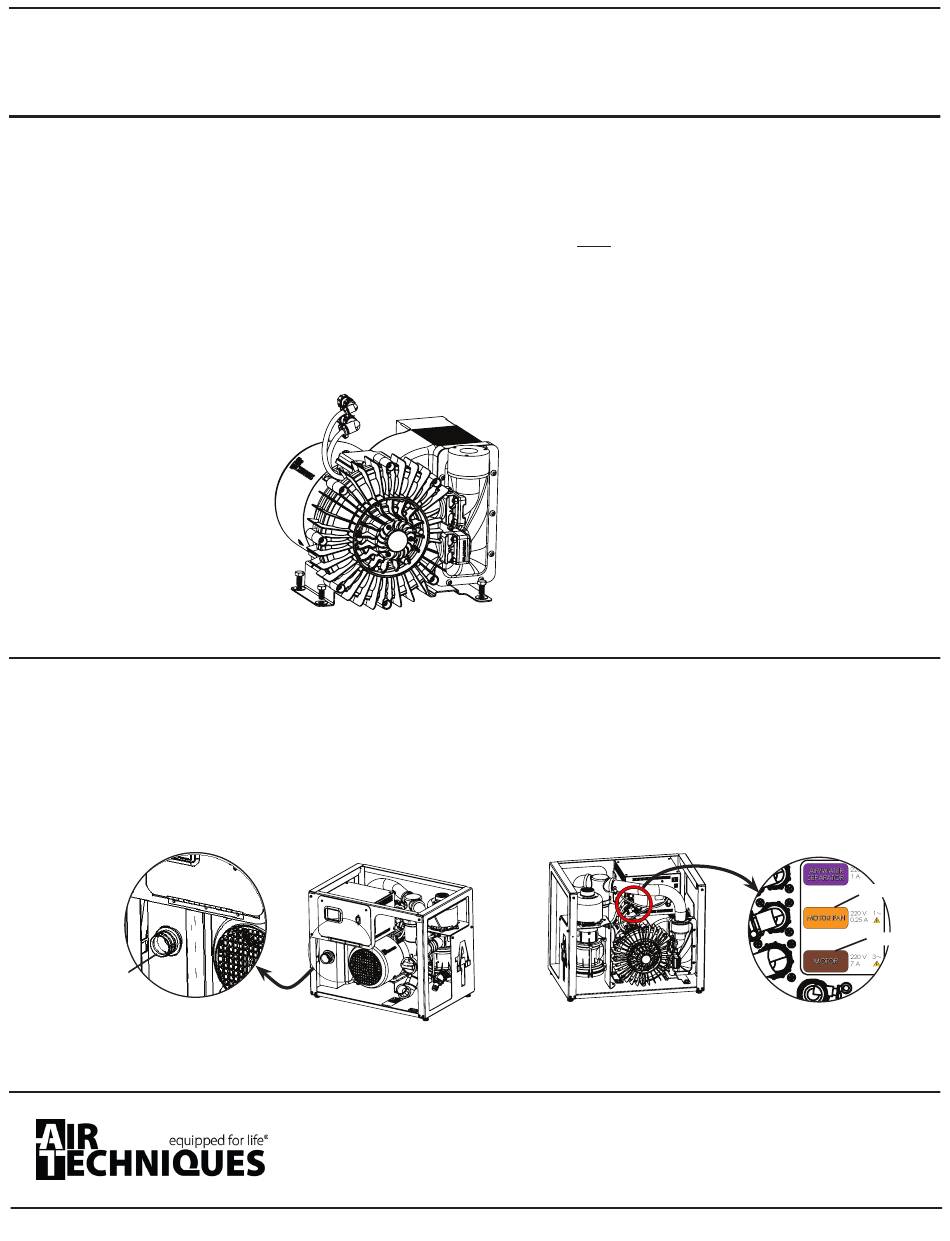

This document provides instructions for using replacement kits (P/N H4150 and H4151) to replace a motor assembly of a

MOJAVE LT Dry Vacuum System.

Replace the faulty motor using the replacement or refurbished motor by performing the following steps.

Turn power to the device OFF.

Remove any hoses connected to the motor exhaust port.

Disconnect the brown MOTOR and orange MOTOR FAN circular connectors from the back of the electrical box by

loosening the locking ring closest to the electrical box on each connector.

Motor

Exhaust Port

Motor Exhaust Connection

Mojave LT Motor Replacement Kit

Part No: H4150 and H4151

Replacement

All personnel servicing the MOJAVE LT system must read and understand the Operator's Manual

before operating or performing any service of the unit. Only a trained technician from a qualified Air

Techniques dealer should perform any service.

Never work on equipment connected to live power. Remove power by disconnecting mains

power to the unit prior to performing any replacement procedures.

Motor Assembly

Mojave LT Front View

1295 Walt Whitman Road

Phone: 800-247-8324

Website: www. airte chnique s.co m

Instructions

Mojave LT Rear View

MOTOR and MOTOR FAN Connections

Melville, New York 11747- 3062

Fax: 888-247-8481

Orange

Brown

Table of Contents

Do you have a question about the H4150 and is the answer not in the manual?

Page 1 Part No: H4150 and H4151 Replacement Instructions Introduction This document provides instructions for using replacement kits (P/N H4150 and H4151) to replace a motor assembly of a MOJAVE LT Dry Vacuum System. Important Information Service Personnel All personnel servicing the MOJAVE LT system must read and understand the Operator's Manual before operating or performing any service of the unit.
Page 2 Using a 4 mm hex key, remove the (3) bolts and washers securing the inlet manifold to the motor inlet. Using a 9/16 inch wrench, remove the (3) bolts and washers securing the motor to the bottom chassis. Note: Use extra caution not to damage the grounding lug for the Air Water Separator. Slide the motor out from the unit chassis.
