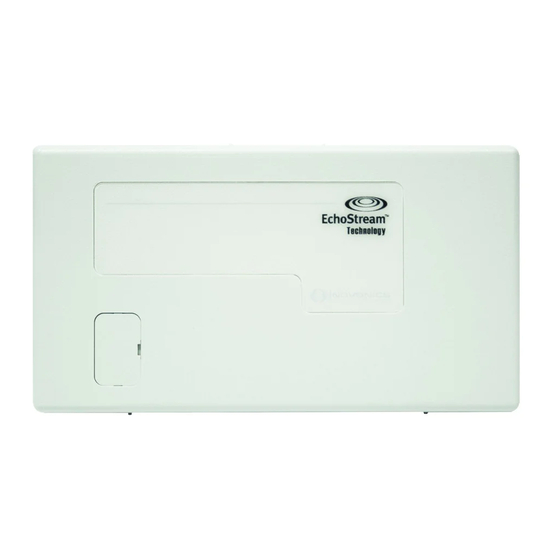

Hills Reliance NX-EchoStream NX-1248 Installation Manual And Programming Manual

1. Dipswitch Settings on Receiver Module
This section describes the dipswitch settings and functions for the NX-EchoStream Receiver
1.1. Setting the Module Address
Switches 1 and 2 on the dipswitch are used to set the Module address of the receiver. Use the table
below for dipswitch settings:
1.2. Setting Functions on Transmitters
Switches 3 and 4 on the dipswitch are used to set the functionality of Buttons 1 and 4 on 4 button
Transmitters. Use the table below for dipswitch settings:
Button 1 Partial Arm,
Button 1 Relay 2 Momentary,
Button 1 Partial Arm,
Button 1 Relay 2 Toggle,
Button 2 – Arm
Button 1 – Partial or Relay 2
2. Program Location Descriptions
This section describes what each programming location in the NX-EchoStream Receiver refers to.
2.1. Transmitter Learning Location
Location 0: This location is used to initiate the auto enrolment of sensors.
When a '0' is in the location, programming is not being attempted.
Enter the number of the zone you wish to learn in and press * to save. Press the reset button within 150
seconds on a transmitter that is NOT already learnt into the system. A chime tone (ding-dong) will sound
on the partition 1 keypad indicating a successful enrolment of the transmitter.
The keypad will sound an error (triple beep) if the number entered is not valid or is already used by an
existing transmitter. Check the number of zones enrolled (receiver supports up to 48 zones), the
capability of the control panel and bank offset value in location 194.
If Auto-Increment is enabled in location 193, the next zone value will be automatically entered into this
location and subsequent transmitters can be enrolled without returning to the keypad. If there is not a
successful enrolment within 150 seconds the keypad will sound an error beep.
The enrolment can be stopped at any time by entering a value of '0' into this location.
Page 1
NX-1248 – NX-EchoStream Receiver Module
Installation Manual and Programming Guide
35 OFF
36 ON
37 OFF
38 ON
Function
Button 4 Relay 1 Momentary
Button 4 Relay 1 Momentary
Button 4 Relay 1 Toggle
Button 4 Relay 1 Toggle
1 2 3
OFF NA
OFF NA
ON NA
ON NA
Button 3 – Disarm
Button 4 – Relay 1
4
NA
NA
NA
NA
1 2 3
NA NA OFF
NA NA ON
NA NA OFF
NA NA ON
4
OFF
OFF
ON
ON
