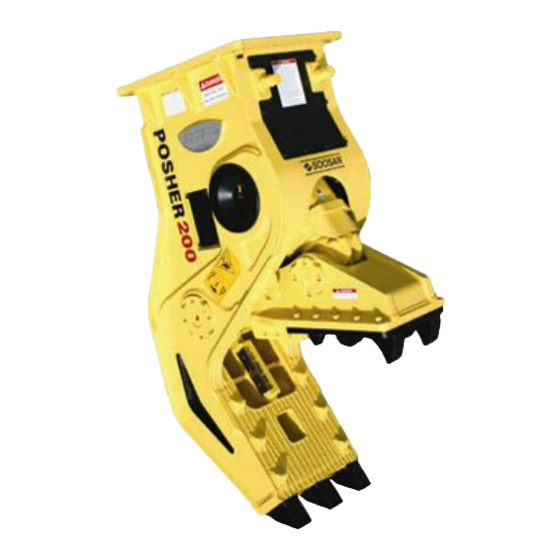

- Page 1 D511560 SOOSAN HYDRAULIC PULVERIZER SOOSAN...
- Page 2 6. Do not allow the pulverizer to drop and strike a material or strike against the side of a material. 7. Store the pulverizer with the hydraulic cylinder retracted. 8. In order not to diffuse of dust, Use FOG-FOUNTAIN-NOZZLE which is very effective. Soosan Heavy Industries Co.,Ltd...
- Page 3 We appreciate your purchasing a Soosan Hydraulic Pulverizer. The Hydraulic Pulverizer, designed and built to provide durable operation under any working conditions, has been developed by Soosan's excellent engineering techniques with accumulated experiences for many years. Without proper handling, regular inspection and maintenance, however, the machine fails to display its full capacity, resulting in various troubles of machine parts.
-
Page 4: Table Of Contents
Soosan Hydraulic Pulverizer OPERATION MANUAL 1. STANDARD SPECIFICATIONS AND EXTERNAL DIMENSIONS 2. INSTALLING AND REMOVING FROM HYDRAULIC SHOVEL 3. INSPECTION BEFORE OPERATING 4. PRECAUTIONS FOR PULVERIZER 5. MAINTENANCE 6. REPLACEMENT OF REINFORCED CUTTER Soosan Heavy Industries Co.,Ltd... -
Page 5: Standard Specifications And External Dimensions
1.2 External Dimensions 7 5 0 7 1 0 7 6 0 6 2 0 4 6 0 4 8 0 1 2 4 9 5 8 0 1 4 8 2 5 4 0 6 3 0 Soosan Heavy Industries Co.,Ltd... -
Page 6: Installing And Removing From Hydraulic Shovel
C> Close the stop valve to prevent the hydraulic oil from flowing out. D> After disconnecting the oil hoses, install the hose plugs to the oil hoses to prevent the hydraulic oil from flowing out of the pulverizer and mud, dust, etc. from getting into the pulverizer Soosan Heavy Industries Co.,Ltd... -
Page 7: Inspection Before Operating
B> Operate the pedal to move the pulverizer arm several times for checking if each movable part moves smoothly. Soosan Heavy Industries Co.,Ltd... -
Page 8: Precautions For Pulverizer
Since the entire concrete pulverizer is longer than the bucket (see above the picture: A<B) so, the force of about 1.5~2 times is directly applied to the bucket cylinder, or bucket link, swivel bearing. Keep in mind above, otherwise, the bucket,, cylinder bucket link, swivel bearing will be broken. Soosan Heavy Industries Co.,Ltd... - Page 9 [4] Perform the pulverizing operation by utilizing the pulverizing force. Do not move the pulverizer body in all directions with a material gripped with pulverizer arm because an unreasonable force may be applied to each part of body. Soosan Heavy Industries Co.,Ltd...
- Page 10 Soosan Hydraulic Pulverizer [5] Operating the pulverizer beyond equipment's power causes shorten pulverizer's life also shovel's [6] Beware of electric contact!! Keep away from the Pulverizer when working in energized area. Soosan Heavy Industries Co.,Ltd...
- Page 11 [7] Because works always have danger of collapse, Demolish the building from the upstairs. Consult Soosan for modifications if you have an underwater requirement. [8] Pulverizer mainly works under Hard working condition, therefore the Teeth are worn out very fast, so if the pulverizing parts are worn out, Built it up by welding.(see the table of 11page)
- Page 12 Soosan Hydraulic Pulverizer [9] Don't lift, move, or load an overweighted material with pulverizer. Otherwise, Not only the pulverizer but also the shovel will be damaged. Soosan Heavy Industries Co.,Ltd...
-
Page 13: Maintenance
B> Check the piping connections for oil leakage and damage. C> Check the pins and bushes for wear and damage. D> Check the bolts and nuts for looseness, coming off the damage. 5) When replacing a part, use a genuine SOOSAN PART. Soosan Heavy Industries Co.,Ltd... -
Page 14: Replacement Of Reinforced Cutter
The clearance between the cutters are factory -adjusted to 1mm or below. ① When replacing a reinforced cutter, check the two cutters for engagement and adjust with the shim if necessary.(Two Shims <0.5mm> are supplied) ① Soosan Heavy Industries Co.,Ltd... - Page 15 L 4 1 1 5 9 s h i m - 1 t = 1 . 0 L 4 1 1 6 0 s h i m - 0 . 5 T = 0 . 5 Soosan Heavy Industries Co.,Ltd...
