Summary of Contents for HUABAO HB-A5W

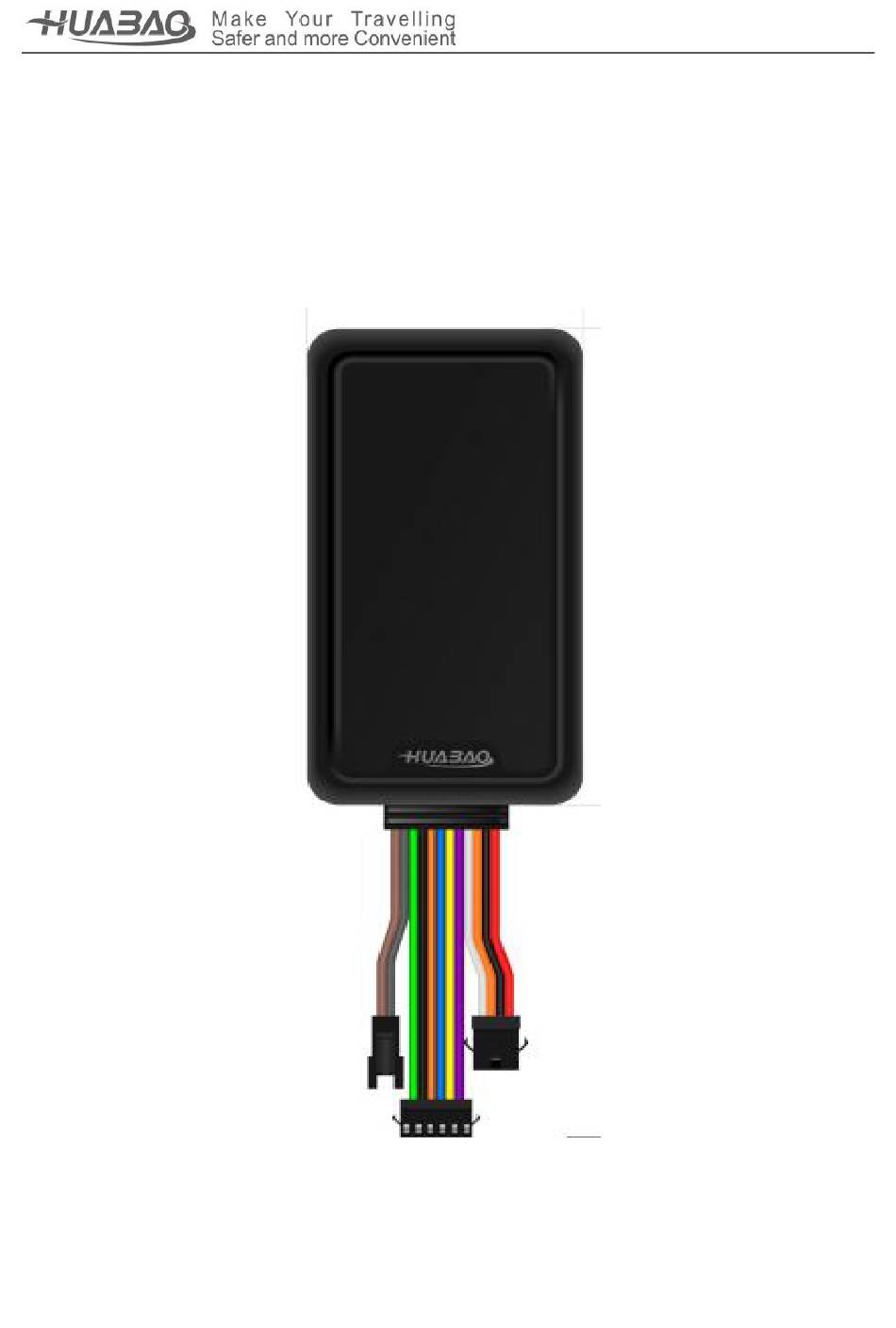

- Page 1 Vehicle GPS Tracker HB-A5W (3G Network) Product Manual 06.07.2020 CHINA-HUABAO...
-
Page 2: Table Of Contents
CONTENT 1. Product Overview........................2. Product Features........................3. Product Specifications........................ 4. Product connection port......................4.1 Port1 Power port........................4.2 Port2 Serial port......................... 4.3 Port 3 Panic button port......................5. LED light status description......................6. Product installation........................6.1 Installation position........................6.2 SIM card installation........................6.3 Power connection........................ -
Page 3: Product Overview

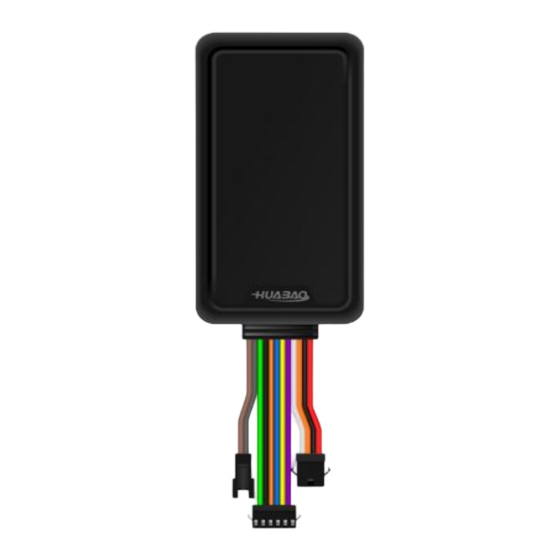

1. Product overview HB-A5W GPS vehicle tracker is an easy install, stable & reliable and low power consumption device, it can connect to external panic button, Relay for remotely fuel cut-off, handset, Fuel sensor etc. This device is 3G network module. - Page 4 Functions HB-A5W Note 850/900/1900/2100M Communication 850/900/1800/1900M ○ Positioning GPS+BDS GPS/BDS Configurable transmission time. The ● Real-time positioning default setting is 20 seconds/ 1 data. ● Dead zone Record 800 pieces of backup data. ● Mileage statistics ● Remotely fuel cut-off Disconnect vehicle power via relay.
-
Page 5: Product Specifications
3. Product specifications Communication module WCDMA: 850/900/1900/2100MHz (MTK 6276) GSM: 850/900/1800/1900MHz Sensitivity：Location:-162dBm ; Capture: -148dBm Based on 64 channel Humbird chip GPS Parameters UM220-III N high sensitivity location chip (ublox-G7020) Frequency：GPS L1BDS B1 Location accuracy：<10m Cold start:30s Hot start: 1s Speed accuracy <0.1m/s Accelerated speed accuracy... -
Page 6: Product Connection Port
4. Product connection port... -
Page 7: Led Light Status Description
4.1 Port 1---Power port Cable color description Power (+12/+24V) Black Orange Ignition detection White CUT-OFF 4.2 Port 2---Serial port Cable color description Purple One wire (Temperature Sensor) Yellow RS232-RX (Fuel Sensor) Blue RS232-TX (Fuel Sensor) Orange Black Green 4.3 Port 3---Monitor port Cable color description RS232-RX2 (Serial cable) / MIC... -
Page 8: Product Installation
6. Product installation 6.1 Installation position 6.2 SIM Card Installation The device needs to work with a SIM card. Please make sure the SIM card has the following functions: (1) Already activated the GPRS and SMS function. (2) Have enough remaining credit. (3) PIN code removed. -
Page 9: Relay Installation
White Wire 6.4 Relay Installation for fuel and power cut off---Port 1 Pin4 The Relay is an optional accessory. There are two types relay: 12VDC and 24VDC. Please choose the correct type before installing Relay (Please use power meter to detect the vehicle voltage to choose the correct type of relay). Connecting method: (1) Port 1 Green line connect to relay 86 feet (2) Relay 85 feet connect to main power supply of the vehicle. -
Page 10: Basic Parameters Setting
Notes: The device should be installed hiddenly, before installation, please pay attention to the following: (1) The device have built-in GSM and GPS antenna, please make sure the front side up and no metal shelter when installing. (Glass and plastic are without influence.) (2) Avoid putting close to the heat and emission source, such as engine, controller, reverse radar, burglar alarm and other vehicle communication device. -
Page 11: Basic Function Operation
7.2 Basic function operation Read Location through SMS Please edit SMS send to the SIM which inside the device Command format is : #000000,RDDL Then the device will respond a command to the mobile phone together with location information. Example: 1036 Nan Xin Lu,Nanshan Qu,Shenzhen Shi,Guangdong Sheng, China,518052 Located,URL:http://maps.google.com/maps?q=N22.515370,E113.916970... - Page 12 HB-A5W Reply content on success V:HB_A5W_1.3 200701,//Program version No ID:0868817040089672,//Device ID IMEI:40572930558,//Device IMEI ICCID:898604132218C0033412,////SIM ICCID TID:0000000,//Terminal ID ACC:0,//ACC status #000000,RDST IP:183.62.139.75,6608,//IP&Port APN:CNNET,//APN NET:OK,//Platform link status ON:10,OFF:300,//ACC ON/OFF Upload interval CSQ:18,GPS:0,//GSM signal strength and GPS satellites TZ:+0,0//Device time zone #000000,STIP:211.103.40.133,7788 SET OK! IP:183.62.139.75 PORT:6608...
-
Page 13: Faq
8. FAQ 8.1 Equipment Non-online (1) Inspecting the equipment signal light, it shows general server connection normal when green GSM signal light keep on; It shows SIM card loose or no connection with server when this light flash every 1 second, and it can be tried to shutdown and install the SIM card again. -
Page 14: After Sales Service
contact the customer service and add this IMEI account into the system. 9. After sales service ● The customers can choose refunding, changing or after-sale service if it appears performance failure in this product within seven days purchasing the products. ●... - Page 15 Warranty Card User Name Phone number Address Model Product ID Purchase Date Sales person Distributor Name Distributor Address Remark...
