SHIELD SMART TAIL LIGHT
User Manual
SHIELD-SET-MANUAL-EN-Rev.02
1 / 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHIELD and is the answer not in the manual?

Questions and answers

Summary of Contents for eesens SHIELD

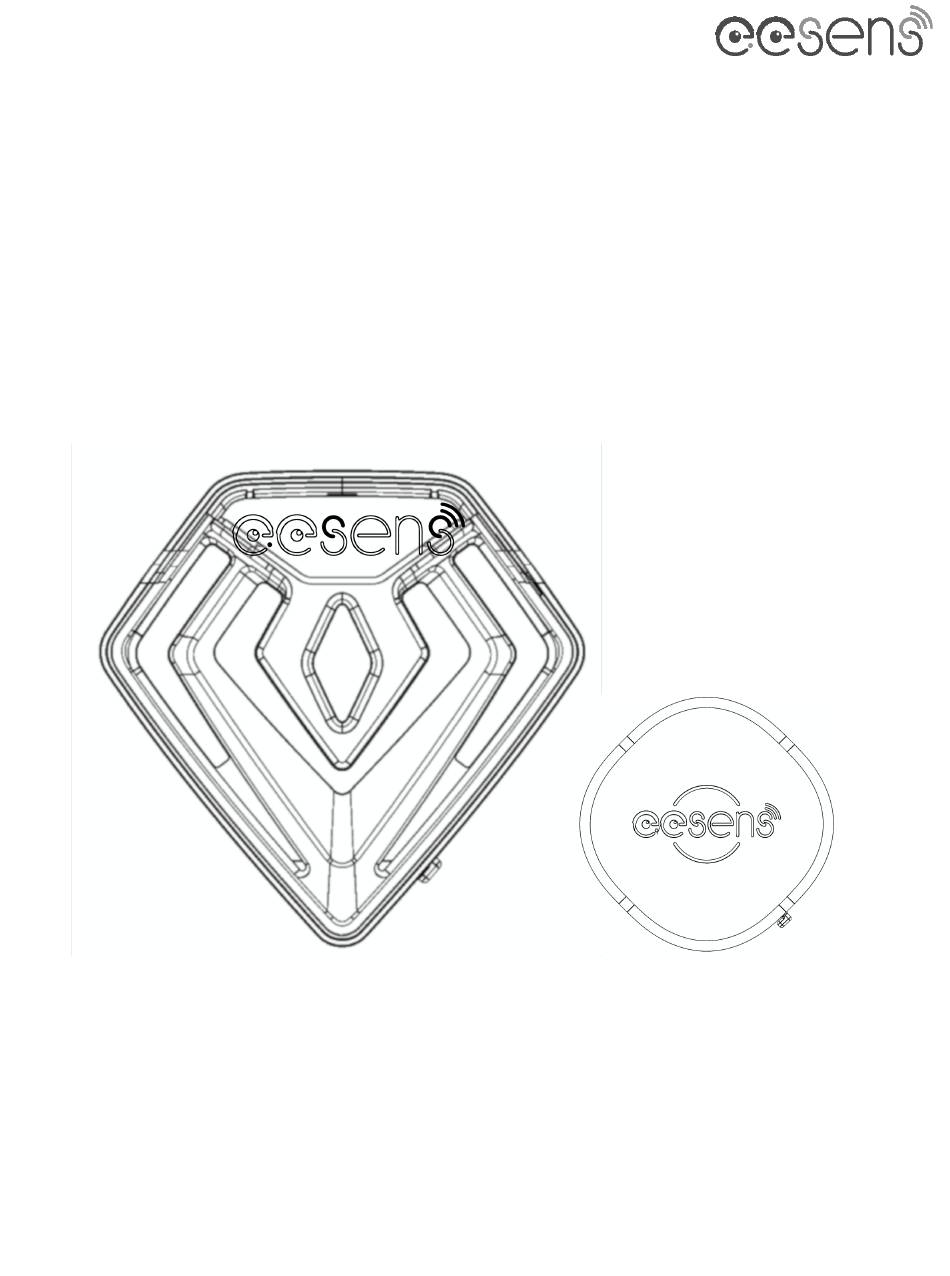

  • Page 1 SHIELD SMART TAIL LIGHT User Manual SHIELD-SET-MANUAL-EN-Rev.02 1 / 24...
  • Page 2 Welcome to the EESENS family Thank you for choosing EESENS’ product. We strive to build something unique and useful for cyclers by embodying smart technologies, creativeness and design. Connect to EESENS www.eesens.com Support@eesens.com Facebook.com/Eesens.inc SHIELD-SET-MANUAL-EN-Rev.02 2 / 24...

  • Page 3: Safety Information

    Safety Information Read the manual carefully before using your SHIELD. SHIELD is designed for paved road. Recommend not to use it in trail to prevent damaging the tail light. Always pay attention to the remaining battery power while using. Charge devices when the ambient temperature is between 41°F and 104°F (5°C and 40°C).

  • Page 4: Package Content

    Package Content SHIELD-SET-MANUAL-EN-Rev.02 4 / 24...
  • Page 5 60 lumens*5 / Capacitive touch / Status LED / 100dB Buzzer 1 Status LED | 2 Left turn signal | 3 Wide-angle light | 4 High beam | 5 Right turn signal | 6 Touch Button | 7 Buzzer | 8 USB port SHIELD-SET-MANUAL-EN-Rev.02 5 / 24...
  • Page 6 Li-Ion rechargeable battery / 5V USB charging / FSK wireless / 6-axis motion sensor / Capacitive touch / Status LED / 60dB Buzzer 1 Status LED | 6 Touch Button | 7 Buzzer | 8 USB port SHIELD-SET-MANUAL-EN-Rev.02 6 / 24...

  • Page 7: Getting Started

    4. Install Controller to Helmet 1. Activate and Charge Devices Before using you will need to activate the SHIELD device. Pull the silicone lid over the port. Then, plug in USB-C cable into the charging port. Charging the device from empty to full (Status LED is solid green) with 5V 1A adapter takes about 2 hours.
  • Page 8 (You can read our privacy policy at https://www.eesens.com) 3. Follow instructions in app to connect to your SHIELD device. 4. Once connected, you can control your SHIELD and configure the settings. 3. Install Tail Light to Seat post 1. Adjust the fitting with the Silicone Band by inserting it inside the Seat Post Fixture.
  • Page 9 4. Install Controller to Helmet Attach Sensing Controller to helmet, according to the shape of your helmet. Ensure that you install the controller correctly. 1. Use the Zip Tie to mount on the back of helmet SHIELD-SET-MANUAL-EN-Rev.02 9 / 24...
  • Page 10 2. Use the Silicone Ring to mount on size adjustment wheel To accurately read rotation angle, the controller is recommended to +/- 15° to horizontal line vertically. Tutorial videos are shared at https://www.eesens.com and Eesens’ YouTube channel SHIELD-SET-MANUAL-EN-Rev.02 10 / 24...
  • Page 11 2. Feedback of devices includes LED and beeps to notify you the status or command result of device. Motion: SHIELD devices can detect motion to execute automation functions, like on/off, brake or head-gesture. 3. Eesens APP can control all functions, customize settings and update features of your tail light and controller.
  • Page 12 5 seconds: Turn on/off Carry Mode hold >10 seconds: Restart device Status Indicators 3 flashing red: input wrong actions Repeated flashing red: rebooting system System 5 flashing red/green: enter/exit Carry Mode 2 flashing yellow: start entering disarm tapcode SHIELD-SET-MANUAL-EN-Rev.02 12 / 24...
  • Page 13 The auto-off timer can be configured in Eesens APP. Trigger/Cancel Turn Signals You can trigger and cancel Turn Signals of SHIELD tail light by moving your head. You can customize your pattern in Eesens APP.
  • Page 14 You can cancel turn signal by lowering your head within 6 seconds after triggering turn signal. Controller notifies you successful canceling with beeps. Practice the action before using SHIELD for your ride Sensing Brake Deceleration triggers brake light. The sensitive level can be configured in Eesens APP →...
  • Page 15 You can turn off the alarm by Eesens APP or entering disarm tapcode on Tail Light. All functions may be updated with new release of software. Read the release note to know the changes in Eesens website. Subscribe our newsletter or follow our Facebook page to get latest information.
  • Page 16 App, turning off Bluetooth/phone or rebooting devices. This may cause the devices failure. We recommend strongly you to charge SHIELD to high battery level and to follow the instructions in Eesens APP before update. Some functions may be changed with the new software.
  • Page 17 Functional Modes of Tail Light SHIELD Tail Light has other functional modes, which stop ride lights. You need to switch back to ride mode before riding bike. Security mode Turn on the anti-theft alarm manually or by device automatically for securing your bike. Moving tail light trigger alarms.
  • Page 18 Ride light is set to lowest intensity. SHIELD shows warning indication of low battery level. Charge your device as soon as possible. SHIELD-SET-MANUAL-EN-Rev.02 18 / 24...

  • Page 19: Troubleshooting

    Troubleshooting If you are having trouble with your SHIELD, follow these steps. Not powering on Charge the device using the USB-C cable. Not charging Make sure the USB-C power source is switched on and plugged correctly. The LED indicator will display a slow pulse when charging.

  • Page 20: Warranty

    Warranty EESENS warrants all products sold by EESENS to be free of defects in material and workmanship for a period of one (1) year from the date of purchase. If the product fails to work during normal use, EESENS will be responsible for replacing or repairing the defective parts only.
  • Page 21 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: SHIELD-SET-MANUAL-EN-Rev.02 21 / 24...
  • Page 22 —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. SHIELD-SET-MANUAL-EN-Rev.02 22 / 24...
  • Page 23 3 (b) / nmb 3 (b). This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 SHIELD-SET-MANUAL-EN-Rev.02 23 / 24...
  • Page 24 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. SHIELD-SET-MANUAL-EN-Rev.02 24 / 24...
