H3C LSWM2MGT8P & LSWM2XMGT8P Interface Cards
User Manual-6PW102
H3C LSWM2MGT8P & LSWM2XMGT8P 接口模块扩展卡 用
户手册-6PW102
Overview 简介
The LSWM2MGT8P interface card provides eight 5G/2.5G/1000BASE-T
Ethernet ports. The LSWM2XMGT8P interface card provides eight
10G/5G/2.5G/1000BASE-T Ethernet ports.
LSWM2MGT8P 接口模块扩展卡对外提供 8 个 5G/2.5G/1000BASE-T 自适
应以太网端口，LSWM2XMGT8P 接口模块扩展卡对外提供 8 个
10G/5G/2.5G/1000BASE-T 自适应以太网端口。

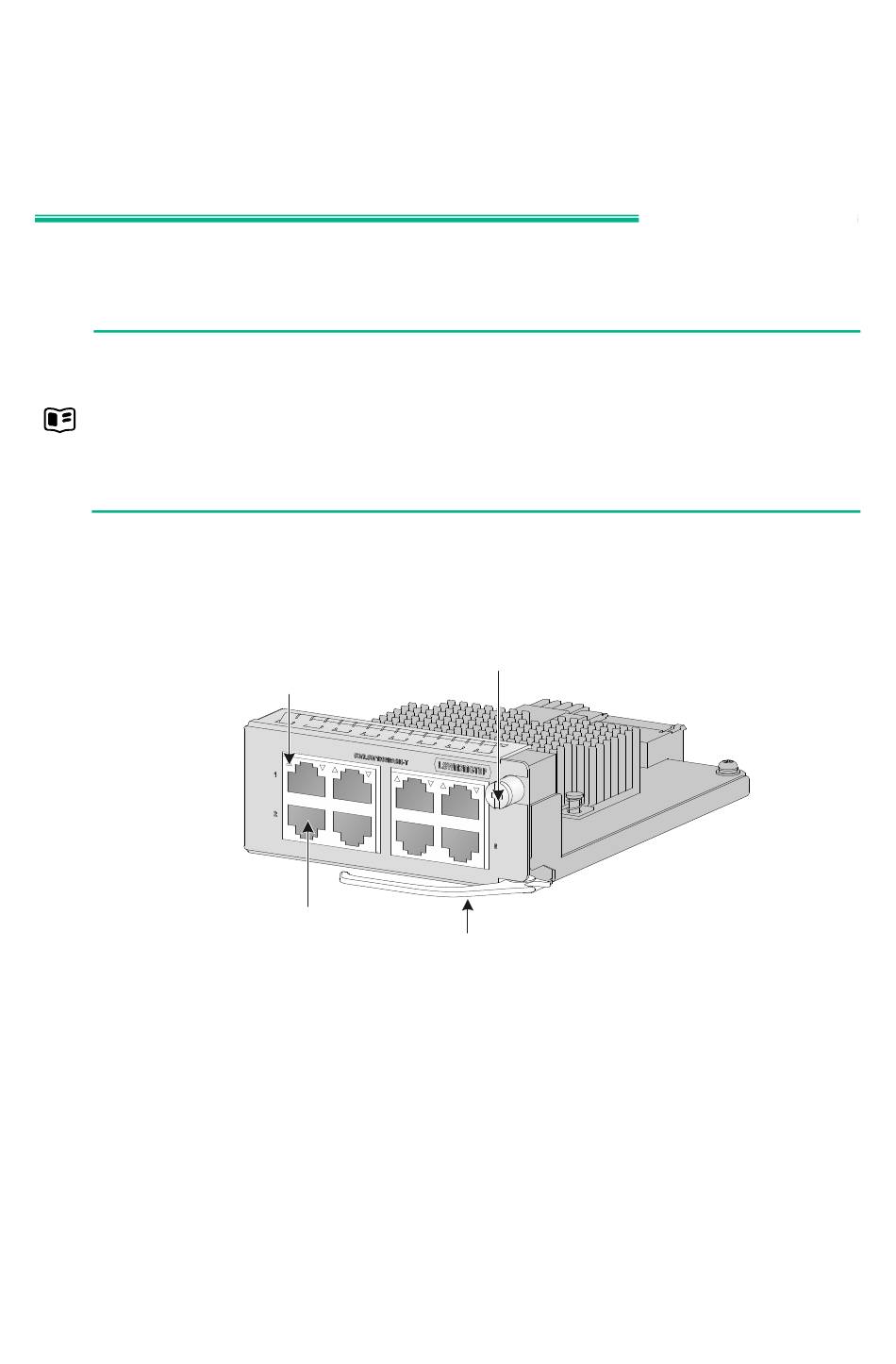

1. LSWM2MGT8P
5G/2.5G/1000BASE-T
autosensing Ethernet port LED
5G/2.5G/1000BASE-T
自适应以太网端口状态指示灯
autosensing Ethernet port
5G/2.5G/1000BASE-T
5G/2.5G/1000BASE-T
自适应以太网端口
Captive screw
松不脱螺钉
Ejector lever
扳手
1
BOM: 3101A0PK
Advertisement
Related Manuals for H3C LSWM2MGT8P
Summary of Contents for H3C LSWM2MGT8P
- Page 1 User Manual-6PW102 H3C LSWM2MGT8P & LSWM2XMGT8P 接口模块扩展卡 用 户手册-6PW102 BOM: 3101A0PK Overview 简介 The LSWM2MGT8P interface card provides eight 5G/2.5G/1000BASE-T Ethernet ports. The LSWM2XMGT8P interface card provides eight 10G/5G/2.5G/1000BASE-T Ethernet ports. LSWM2MGT8P 接口模块扩展卡对外提供 8 个 5G/2.5G/1000BASE-T 自适 应以太网端口，LSWM2XMGT8P 接口模块扩展卡对外提供 8 个...
- Page 2 The switch models that the LSWM2MGT8P and LSWM2XMGT8P interface cards are applicable to might change over time. For the most up-to-date list of applicable switch models, contact H3C Support or marketing staff. LSWM2MGT8P & LSWM2XMGT8P 接口模块扩展卡适 用于 H3C 多款交换机产品， 其适用机型的准确信息随着时间变化有更新的...
- Page 3 1. Safety precautions 安全注意事项 • Before you install or remove the card, wear an ESD wrist strap and make sure the strap makes good skin contact and is reliably grounded. 在安装 和拆卸过程中，操作者需自行准备并佩戴防静电腕带，请确保防静电腕带 已经正确接地并与皮肤良好接触。 • To avoid device damage, do not use excessive force when you install or remove the card.
- Page 4 After the installation is complete, determine whether the card is operating correctly. If the card fails to operate correctly, perform the following steps: • Reinstall the card following the installation procedures described in this document. • If the problem persists, contact H3C Support. 全部安装完成后，在交换机运行正常的情况下，若发现接口模块扩展卡无法 正常工作： • 您可以按照手册中介绍的方法重新安装接口模块扩展卡。 •...
- Page 5 Ports 接口 1. LSWM2MGT8P Item 属性 Specifications 描述 Connector RJ-45 连接器类型 5 Gbps, full duplex. 5Gbps 全双工 2.5 Gbps, full duplex. 2.5Gbps 全双工 Transmission rate 端口属性 1 Gbps, full duplex. 1Gbps 全双工 MDI/MDI-X, autosensing. MDI/MDI-X 自适应 ...
- Page 6 For more information about the port LED mode switching button, see the installation guide for the switch. 该指示灯不受交换机上端口 状态指示灯模式切换按钮的影响，关于端口状态指示灯模式切换按钮的详细 介绍请参见交换机的配套安装手册。 1. LSWM2MGT8P LED Status 指示灯状态 Description 指示灯含义 Steady green The port is operating at 5 Gbps, and a link is present on the port.
- Page 7 端口工作在1G、2.5G或5G模式下，正在接收或发送数据 No link is present on the port. 灭 端口没有Link Up Copyright © 2021, New H3C Technologies Co., Ltd. The information in this document is subject to change without notice. Copyright © 2021 新华三技术有限公司 版权所有，保留一切权利 本文档中的信息如有更改，恕不另行通知 如需了解产品及安装方面的更多信息，请登录 H3C 网站 www.h3c.com...
