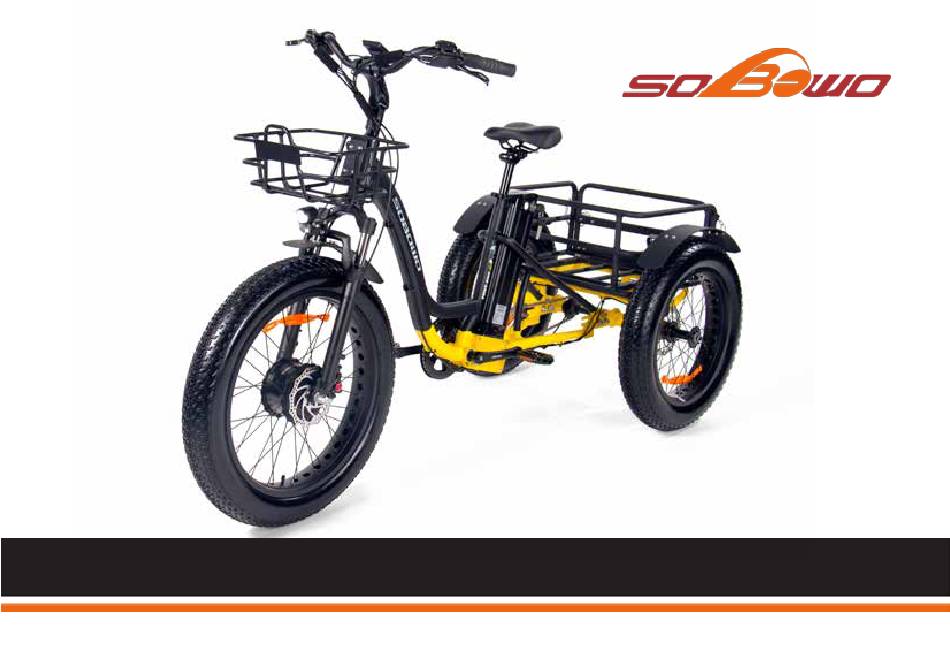

- Page 1 SOBOWO FAT Trike User Manual Page 1...
- Page 2 Why read this user manual ? So you will understand your new Sobowo electric tricycle features, performance, safe use, & maintenance. This manual will help you: ENJOY - Get the most from every single ride RIDE SAFER - Both for yourself and other road users...
-
Page 3: Introduction
Sobowo Electric Tricycle Welcome Thank you for purchasing your new Sobowo electric FAT Trike. We bring you this premium product for your enjoyment, commuting and recreational use. Sobowo electric tricycles are vehicles which; operate with zero emissions using battery power, have safe performance, unequalled stability, and industry leading after-sales service. -
Page 4: Table Of Contents
Index Sobowo Electric Tricycle Introduction ..........................Parts description ........................... Battery charging ..........................Additional charging information ..................... About charging ..........................Daily checks ........................... Riding ............................Riding range ..........................Display information ........................Display operation ........................... Basic maintenance ......................... Troubleshooting ..........................Recommended torque values ...................... -
Page 5: Parts Description
Parts Description Sobowo Electric Tricycle LCD Display Brake lever Hand grip Handlebar stem Seat Suspension fork Tyre Spokes Valve Charging port Battery Controller Foot pedals Twist throttle Display buttons Disc brake Front hub motor Parking brake Page 5... -
Page 6: Battery Charging
Battery Charging Sobowo Electric Tricycle • NOTE: FUlly charge yoUr battery beFore the First Use oF yoUr electric tricycle. • The battery can be recharged after each use. • There is no memory effect with lithium batteries, so you can charge the battery after short periods of riding without concern or damage. -
Page 7: Additional Charging Information
Additional charging information Sobowo Electric Tricycle • Switch off the power to the tricycle by turning the key to the OFF position • The battery can be charged in position, or removed from the tricycle. • Swing the charging port cover open. -
Page 8: About Charging
• The charger is for indoor/undercover use only. Please keep it in dry and in a well-ventilated place. • If you notice a strange smell from the charger, or the charger is too hot, please stop charging and contact Sobowo od your Sobowo Dealer. -
Page 9: Daily Checks
Daily checks Sobowo Electric Tricycle For maximum safety, make the following checks before riding • Normal operation of the front and rear lights, brake system, and brake lever power cut-off system. • Check parking brakes are in the OFF position and released. -
Page 10: Riding
• Ride within your abilities and the conditions, especially when learning. • Position the tricycle on level ground clear of any obstacles, especially until you get used to riding your Sobowo tricycle. • Firstly, decide if you are going to ride the tricycle with, or without electric assistance. - Page 11 • Turn the Sobowo electric tricycle on by turning on the handlebar controller. The colour LCD display will light up. Select the desired starting speed. The speed range 1-5. 1 is the slowest setting with 5 being the fastest.
- Page 12 • Slowly squeeze the brakes to get the feel of how they work and their strength. • The brakes on your Sobowo electric tricycle are high-performance, hydraulic disk brakes, and they will reduce your speed very quickly. About 70% of the braking power will come from the front wheel, but use front and rear brakes together for the best stopping performance.
-
Page 13: Riding Range
Riding range Sobowo Electric Tricycle Average distance from one charge is between 25-40 km. The distance will differ based on different riding conditions, rider weight, pedal assistance effort and other factors. Conditions for testing shown below: operation with throttle only, wind speed: light to moderate; atmosphere pressure 1013mb;... -
Page 14: Display Information
Display information Sobowo Electric Tricycle Power Button Display Information Page 14... -
Page 15: Display Operation
Display operation Sobowo Electric Tricycle speed selection Turn the key on the battery to the ON position. Electrics on the tricycle will only operate when the key is turned on. To select the speed level, short press the Plus Button Minus Button to change the speed level. - Page 16 Display operation continued Sobowo Electric Tricycle headlight / tail-light switch Press and hold the Plus Button (1 second), the brightness of the display decreases, and the front and rear lights are turned on. Press and hold the Plus Button again (1 second), the display backlight will return to its original brightness, and the front and rear lights will be turned off.
-
Page 17: Basic Maintenance
Basic maintenance Sobowo Electric Tricycle To ensure safe riding conditions you must properly maintain your electric tricycle. You should follow the basic guidelines below, and see your local bike shop seasonally to ensure your electric tricycle remains in a safe condition for riding. -
Page 18: Troubleshooting
Troubleshooting Sobowo Electric Tricycle Symptoms Possible causes Most common solutions (1) Insufficient battery power (flat battery) The tricycle (1) Charge the battery (2) Faulty connections doesn’t work (2) Check all connections (1) Insufficient battery power (1) Charge the battery Irregular acceleration... -
Page 19: Recommended Torque Values
Recommended torque values for threaded fasteners Sobowo Electric Tricycle item Part torque required in N.M. Handlebar 18-20 Handlebar Stem 18-20 Saddle 18-20 Seat post 18-20 Front Wheel 16-25 Rear Wheel 25-35 Bottom Bracket 35-55 Page 19... -
Page 20: Wiring Diagram
Wiring diagram Sobowo Electric Tricycle Charging Battery Port Sobowo Electric Tricycle simplified wiring diagram Controller Brake Pedal Motor Throttle Lever Sensor Headlight Taillight Page 20... -
Page 21: Saving Battery Power And Extending Your Range
Avoid cold temperatures below 2°C, cold or below freezing will damage your battery. • Never use your battery for anything except its intended purpose. • Never use a battery charger which was not supplied with your Sobowo electric tricycle. • Never charge the battery on its side or upside down. Page 21... -
Page 22: Useful Tips
• Make sure to perform a safety check before each ride, throttle, brakes etc. • Only people who have read and understood these operating instructions for the Sobowo electric tricycle are allowed to ride. Page 22... -
Page 23: General Warning
General warning Sobowo Electric Tricycle Like riding a bicycle, riding this electric tricycle also has the risk of injury and damage. If you choose to use this electric tricycle, you will have to bear such risks, so you need to understand the rules of safe riding and maintenance. -
Page 24: A Note For Parents And Guardians
All children should always ride with adult guidance. The Sobowo company recommends that you periodically review and reinforce the information in this manual with younger riders. You are required to inspect and maintain your child’s electric tricycle to ensure their ongoing safety. -
Page 25: Safety Notes Before First Use
Safety notes before first use Sobowo Electric Tricycle This electric tricycle is intended for riders older than 16 years. Do not ride the electric tricycle if you suffer from reduced physical, sensorial, or mental issues. Riders with a lack of experience or knowledge should ride carefully. Children should not play with the electric tricycle, nor should cleaning or maintenance be attempted by children. -
Page 26: Additional Safety Notes
Failure to wear a helmet when riding may result in serious injury or death. • Do not use this electric tricycle with standard bicycle trailers, stands, or vehicle bicycle racks. Please contact Sobowo to check if your equipment will work with the electric tricycle before use. •... - Page 27 • Sobowo electric tricycles do have strength and integrity limitations. Extreme riding should not be performed, otherwise you can be seriously injured. •...
- Page 28 Most accidents could be prevented by riding slower. • Any changes to the electric tricycle not expressly approved by Sobowo will void warranty and could adversely affect your safety while riding. • Because electric tricycles are heavier and faster than normal tricycles, they require extra caution and care while riding.
-
Page 29: Warranty
Warranty Sobowo Electric Tricycle Sobowo electric tricycles carry a warranty against manufacturing defects and faults for normal use (as listed below), and a 6 month warranty for commercial use. • Frame = 2 years • Motor = 18 months •... -
Page 30: Specifications
Specifications Sobowo Electric Tricycle Model: Sobowo - Fat Wheel Electric Tricycle Common Name: Sobowo-Trike Bike, Fat Wheel Electric Tricycle SKU: TB-24-SOBOWO build Material 6061 T3 Aluminium Alloy electrics Motor: 48V 500W Bafang Front Hub Motor Electronic Controller: Lishui Intelligent Brushless Controller... - Page 31 Operated through handlebar mounted keypad Lighting LED Headlight, LED tail light with brake function Wheel Details Front Rim: 24” x 4.0″ Fat Tyre Front Tyre: Kenda Krusade 98-507 Rear Rim: 20” x 4.0″ Fat Tyre Rear Tyre: Kenda Krusade 98-406...
- Page 32 Specifications continued Sobowo Electric Tricycle Mudguards: Font and rear wheels Crankset: Alloy 42 teeth chain ring Rear Sprocket: Shimano 18 teeth Gears: Single Speed Shimano 18 teeth Chain: KMC Bottom Bracket Sealed bearing bottom bracket with Rothwell aluminium cranks and Wellgo oversize pedals Rear Axle High strength, hardened steel rear axle, 20mm Ø, 4 sealed bearings...
- Page 33 Specifications continued Sobowo Electric Tricycle tricycle Dimensions Overall length: 190 cm Handlebar width: 66 cm Overall width: 80 cm Typical handlebars height: 120 cm basket Dimensions Rear Basket: 55cm wide x 45cm long x 24cm deep Front Basket: 37cm wide x 28cm long x 15cm deep...
- Page 34 Notes: Record your serial/frame number here: Page 34...
-
Page 35: Certification
Certification Sobowo Electric Tricycle Type European Conformity Approved This product(s) have been manufactured to applicable standards on a voluntary basis with compliance to ISO 9001, CE and ECM standards. The product(s) satisfies the requirements for the attachment of these certification marks. - Page 36 Australian Distributor for Sobowo electric Trikes and Scooters Unit 2, No. 481 Scottsdale Drive Varsity Lakes, QLD 4227. Phone: 07 5522 0583 Email: bigm@trike-bike.com.au This document text, images and layout are copyright to Trike Bike Australia ©...
