Summary of Contents for SAIGE E5-C
- Page 1 Electric Tricycle User Manual E5-C...
-
Page 2: Table Of Contents
Catalogue Catalogue ..........................1 Preface ............................. 3 Main Parameters and Specifications ................4 Motor Vehicle Safe Driving Instructions ..............5 Motor Vehicle Number ..................... 6 Operating Parts ........................7 Checking List before driving ..................10 Electric Motor Use Method ................... 11 Maintenance ........................ -
Page 3: Preface
Preface Dear E5L1500 electric vehicle users: Thank you for choosing E5L1500! The E5L1500 electric tricycle has reasonable structure, simple operation, reliable quality, safe and comfortable riding, and is deeply loved by users. The car is designed in strict accordance with the requirements of national standards. -
Page 4: Main Parameters And Specifications

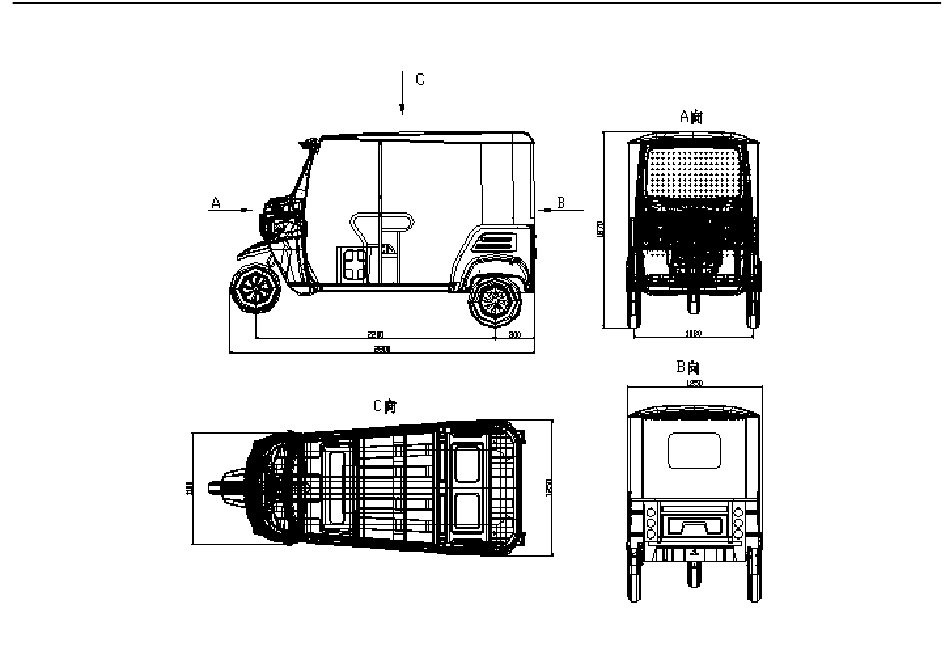

Main Parameters and Specifications of E5 - C Parameter Item Lithium Battery Version Dimension 2800*1250*1780mm Curb Weight 310kg without battery Tyre Front & Rear400-12 Brake Front Disc Rear oil Drum Motor 60V/1500W Controller 30 T Battery General 60V 100A-120ALithium Max Speed ≤40KM Passenger 1driver+5passengers... -
Page 5: Motor Vehicle Safe Driving Instructions
Wheel Base 2220mm Multimedia Reverse Camera, USD multimedia, Anti-theft alarm Motor Vehicle Safe Driving Instructions 1. Read the manual first to understand the performance and usage of the vehicle before using the electric tricycle. 2. Please do not lend the tricycle to someone who can't operate an electric vehicle for riding. -
Page 6: Motor Vehicle Number
Motor Vehicle Number The number of the frame and the electric motor is essential when you apply for an electric vehicle license. When you order components or entrust special For special services, this number can enable our company's sales unit to provide you with good service. -
Page 7: Operating Parts
Operating Parts... -
Page 9: Checking List Before Driving
1. Vehicle speed 2. Vehicle speed 3. Vehicle power 4. Manufacturer LOGO 5. Multimedia buttons 6. Multimedia display 7. Vehicle mileage 8. Vehicle power ratio 9. Vehicle manual braking 10.Vehicle speed control 11. Forward and reverse gears 12. Storage box 13.Multimedia horn in the car 14. Light switch 15. Fog light switch 16.Wiper switch 17. -
Page 10: Electric Motor Use Method
Brake Gear Check whether the operation is flexible and stable, and lubricate/adjust if necessary. Tyre/Wheel Check tire pressure, wear and damage. Fastener Check all chassis parts and fasteners. Tighten and adjust if necessary. Lights and Check whether the car lights and indicator lights are correct, and whether the Indicators horn performance is good. -
Page 11: Maintenance
5. When using the motor, prevent debris and soil from entering the motor and causing damage. 6. After the motor has been running for one month, please open the rear cover, check the commutator, and remove the carbon brush powder. 7. - Page 12 4. The machine rotates, and the lubricating oil is added to the running parts in time to ensure the flexible operation of all parts and reduce wear. 5. Frequently check the contact points of each circuit (such as wire connection, controller, reverse switch (combination switch), speed control Whether the connection between the controller and the motor is reliable, and there should be no looseness.
- Page 13 Recycling by a certified recycling agency. 8. After the vehicle has run in for 100km, replace the lubricating oil. In the future, add oil and butter to the differential and the axle shafts every month. 9. If it is a water-cooled motor, always check whether the motor coolant is lacking. If it is missing, please add coolant in time.
- Page 14 Maintenance schedule Required Mileage（km） Item Method 1200 1600 1500 Brake Inspection/adjustm ○ ○ ○ ○ ○ ent/repair Motor Check/adjust ○ ○ ○ ○ ○ Tyre Check/inflate ○ ○ ○ ○ ○ Fastener Check/tighten ○ ○ ○ ○ ○...
-
Page 15: Fastener Torque Specifications
Fastener torque specifications torque 【 specifications 】 Use a torque wrench to tighten each part, and users are expected to check these tightened parts at any time. Especially before long-distance driving, it cannot be ignored. The tightening torque of nuts and bolts of various 。... - Page 16 Common Failure Method Failure phenomenon Failure Reason Resolve Method T u r n o n a s 1. Whether the fuse is blown or 1. Replace the fuse of the same “ ”but lights not on loose. specification. 2. The power contacts are loose. 2.
-
Page 17: Common Failure Method
Common Failure Method Failure Reason Resolve Method Failure 1. Insufficient tire air. 1. Adequate air pressure. 4 Mileage not 2. Insufficient charging or malfunction of 2. Recharge or repair the motor. enough per the charger. 3. Repair the battery. charge 3. -
Page 18: Electric Tricycle Wire Drawing
Electric Motor Tricycle Wire Drawing （No Inform is Any Update）... -
Page 19: Guarantee Rules
Guarantee Rules (For Reference Only) ◆No free exchange under the following circumstances: 1. The warranty period has expired; 2. The parts replaced during the warranty period will lose the warranty at the same time as the warranty period expires; 3. Caused by improper use, such as: water shortage of the battery, unclear date of the battery, unauthorized modification, motor, charging The motor and controller are disassembled privately, and the inner tube has a patch, etc.;... - Page 20 The accumulator or electric motor will be charged 100 yuan each (unit) for joint liability compensation. 2. During the warranty period, if the battery (above 48V) travels no less than 30 kilometers, it is not included in the replacement list and belongs to the maintenance Protect the scope of repair.
- Page 21 User Profile Card User Name Contact No Address Purchase Date Dealer Model Contact No. Name Product Model Number Name Motor Model Number Supplier Chassis Battery Number Brand Use for Person local Road Note Condition...
- Page 22 E l e c t r i c V e h i c l e M a i n t e n a n c e R e c o r d Date Details...
