Scolmore CLICKsmart RFSC-61 Quick Start Manual

www.click-smart.com

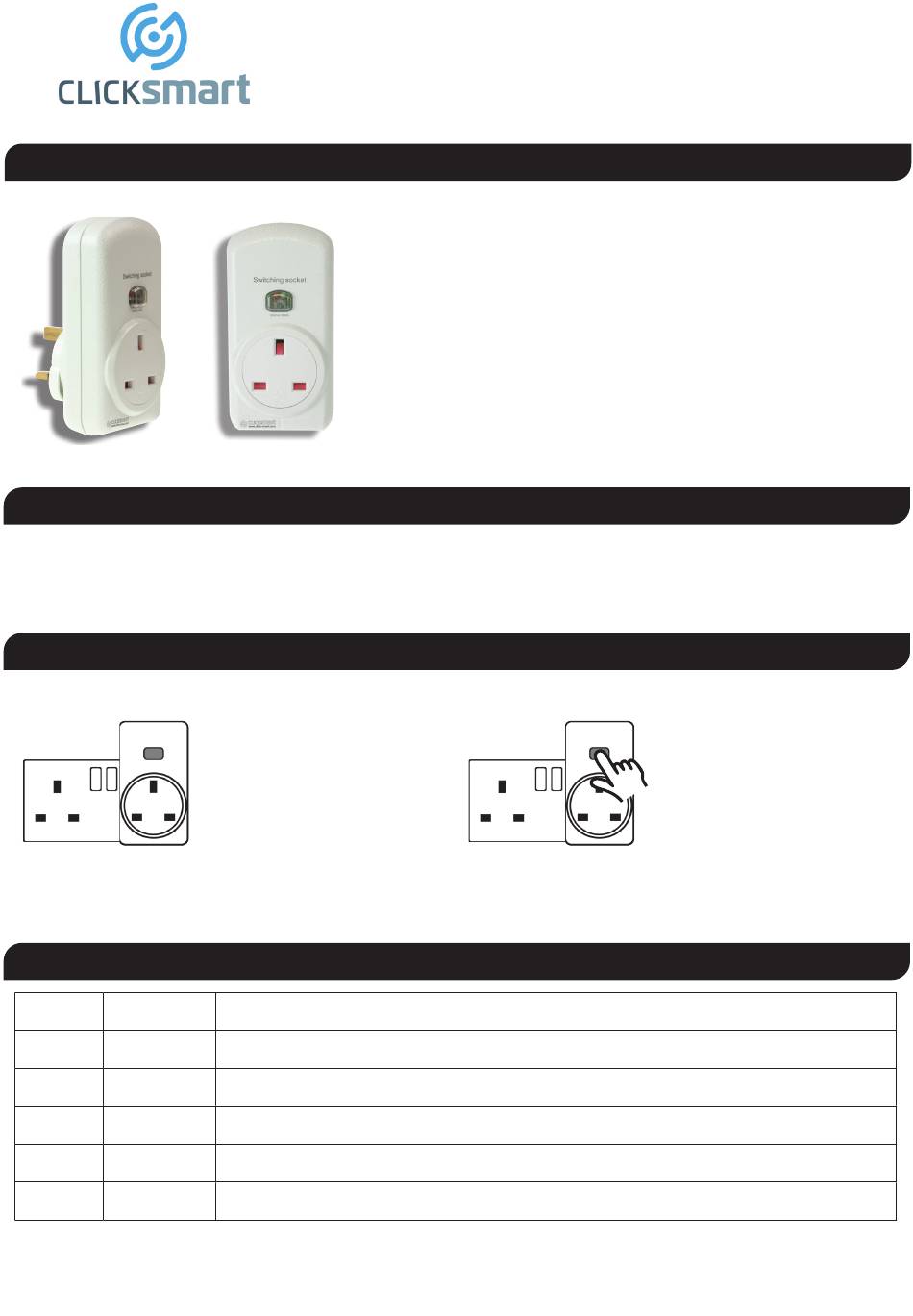

1 RFSC-61 - Wireless Plug In Switching Socket
2 Signal Range
The RFSC-61 has a signal range in free air of up to 200 metres.
Once the signal penetrates building materials etc. the signal range will be reduced. See the installation guidance notes supplied
with this device.
3 Programming
1
CS2 Memory: The product marked CS2 enables the receiver to remember the status (if engaged) in the event of a power cut.
Once engaged and the current status has be running for longer than 15 seconds the current status will be stored.
See Section 7 overleaf.
4 Functions (Switching Receivers)
Function 1 Press button
Function 2 'On' button
Function 3 'Off' button
Function 4 On/Off button
Function 5 'Off' delay
Function 6 'On' delay
Functions 5 & 6 (timed elements) are programmed in real time. If you require 40 minutes you have to wait for the 40 minutes to
complete the pairing.
For 5+ minute timed elements, we always recommend conducting a few shorter timed elements (e.g. 10 seconds) to ensure both the
correct function and the correct timed element are programmed.
Any device with the signs of damage and/or missing parts should NOT be installed and
should be returned to the seller.
Please refer to 'Installation Guidance Notes' supplied before commencing with the
installation.
Devices are designed to be mounted internally only.
The unit described in these instructions are for use in a Standard UK Plug
Socket, they also feature a Standard UK Plug Socket on the front side of the
product.

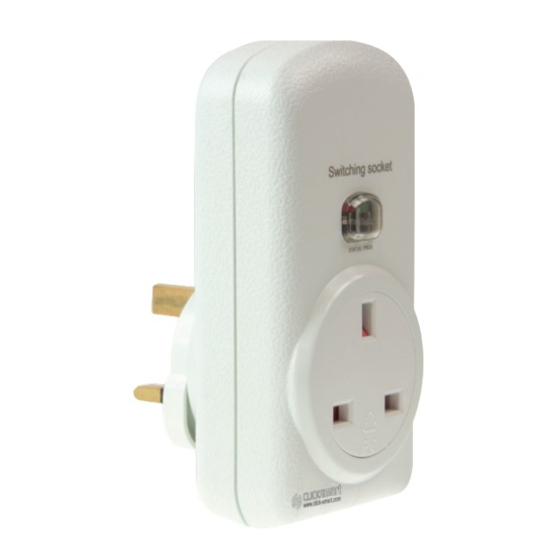

On the RFSC-61 the front socket is used to remotely switch an appliance that is
plugged into it.
Supply Voltage:
Frequency:
Signal Range (free Air):
Ingress Protection:
Dimensions:
Load Capacity Rated Current:
Applicable Standards:
Plug in the Switching
Socket and turn on the
power at the mains
socket.
Press for ON, release for OFF
Press for ON
Press for OFF
Press for ON, press again for OFF
Press for ON, device will turn off after pre-determined time period as set in step 3 of programming
(2 secs - 60 mins max)
Press to start timer. 'On' delay will be as pre-determined in step 3 of programming (2 secs -60mins)
230V~
868MHz
200M
IP20
60 x 120 x 80mm
13A
EN60669, EN300 220, EN301489
2
Press and hold the "STATUS/
PROG" button for 2 Seconds.
The red indicator will flash every
second indicating the product is in
programming mode.
