Manual On/Off Remote Control with Timer for Millivolt Valve
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS. DO NOT ATTEMPT TO INSTALL OR
OPERATE
This Manual on/off remote control with Timer transmitter is designed to be used with millivolt valve gas
appliances. It can be operated on/off from the transmitter or turned on and off manually from the receiver.
Transmitter

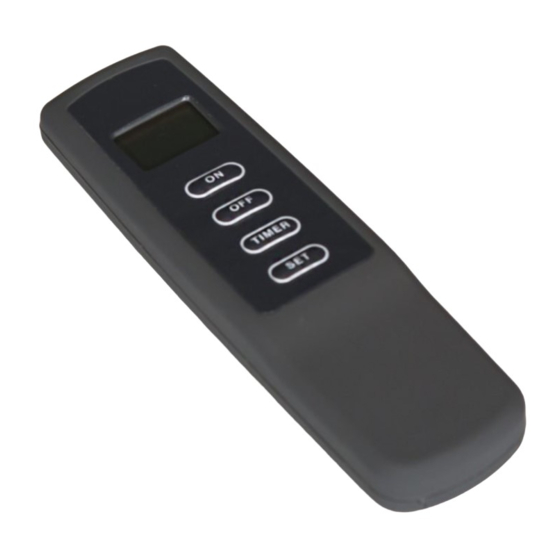

GCRK Timer remote control Transmitter
Receiver Box
Slide Button-Black and White Color (On/RS/Off)
Wall Cover Plate-Black and White Color
Battery Door- Black and White Color
Plug-In Wiring Assembly – 22" Inches
Installation Instructions
#6 3/4 Screws (for Wall Cover Plate and Remote control)
#6 3/4 Screws (for fireplace system control covers)
Plastic wall anchors (for installing transmitter)
NOTE: Due to the sensitive temperature monitoring components in the transmitter, it is necessary to allow the
transmitter to stabilize to room temperature before accurate room temperature are displayed, If the transmitter is
activated from a severe cold condition allow 15 minutes for accurate temperature reading to appear on the LCD.
Read this manual thoroughly prior to installing, programming or operating any remote control.
•
•
This remote-control system is designed for use with a millivolt or 24V gas valve system. Do not use
this remote-control system on applications with voltages above 24 Volts AC/DC and 1 amp current.
This remote-control system requires two (2) "AAA" and four (4) "AA" alkaline batteries to power the
•
transmitter and receiver.
•
Turn appliance OFF (at the appliance or remote receiver) if you are away from your house for a
long period of time.
Easy Operate Manual on/off and Timer Control
•
Battery Powered Transmitter and Receiver
•
•
Low battery Indication
Select Between °C and °F display
•
Child Proof Lock-out
•
•
16 Security Codes
Quick Disconnect Wiring Assembly
•
GCRK
CONTENTS OF KIT
Description
WARNING
Important Safety Information
FEATURES/SPECIFICATIONS
Page 1 of 6
Quantity
1
1
1
2
2
2
1
1
4
2
2
Advertisement
Table of Contents
Summary of Contents for Grand Canyon Gas Logs GCRK
- Page 1 It can be operated on/off from the transmitter or turned on and off manually from the receiver. CONTENTS OF KIT Description Quantity Transmitter GCRK Timer remote control Transmitter Receiver Box Slide Button-Black and White Color (On/RS/Off) Wall Cover Plate-Black and White Color Battery Door- Black and White Color Plug-In Wiring Assembly –...
-
Page 2: Learning Transmitter To Receiver
Turn appliance OFF and allow to cool before installing or servicing. DO NOT connect 110-120 VAC wiring to the millivolt gas control valve. The remote operator must be installed exactly as outlined in these instructions. Read all instructions completely before attempting installation. - Page 3 OPERATIONS: The GCRK Remote Control has two (2) operating modes: Manual and Timer. (15 min. -180 min. in 15 minutes increments). The max setting time is 180 min. The transmitter will operate the remote receiver from 1 foot to 30 feet. The distance is reduced when batteries are low or when the receiver is inside a metal enclosure.
-
Page 4: Hearth Mount
Make sure that the wires do not contact the appliances any place other than at the terminals. Exposure to temperatures higher than 250℉(105℃) may cause the receiver to malfunction or cause a fire hazard. Receiver: Begin by installing (4) AA-size batteries. Slide open the battery cover on receiver. It is recommended that ALKALINE batteries always be used for this product. -
Page 5: Troubleshooting
Connect one wire from the remote receiver to the TH terminal on the gas valve Connect the other wire from the remote receiver to the TH/TP terminal on the gas valve Slide Switch: 1. ON position: the system will remain on until the slide switch is placed in the OFF or REMOTE position. 2. - Page 6 Symptom Causes Action Battery icon on LCD on Low Battery Replace batteries. transmitter. LCD Display is blank Low Battery Check battery installation and replace batteries. Receiver emits the beep in Low Battery Replace batteries. every minute Appliance does not come 1.
