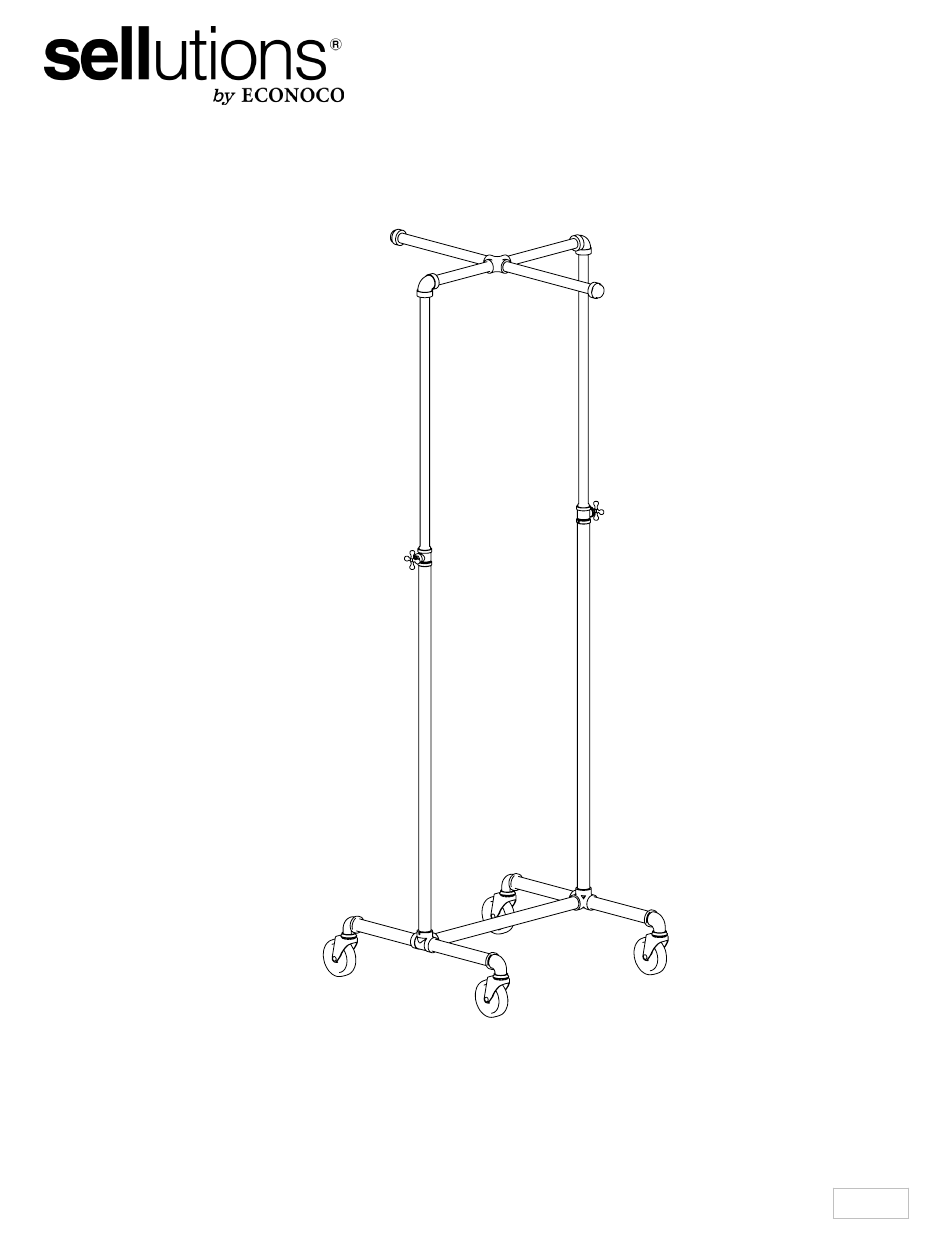

- Page 1 ADJUSTABLE 2-WAY CROSS BAR RACK ITEM#:PS2CBADJ PAGE 1 REVISED ON 7/14/2016...
- Page 2 HANGBAR 1 X FACEOUT 2 X TOP UPRIGHT 2 X SET SCREW 2 X ADJUSTABLE CONNECTOR 2X WRENCH HEX WRENCH BOTTOM UPRIGHT 2 X BASE 1 X CASTER 4 X INCLUDED PARTS AND TOOLS PAGE 2...
- Page 3 SCREW THE CASTERS INTO THE BASE AS SHOWN USING WRENCH PAGE 3...
- Page 4 BY HAND, SCREW IN BOTTOM UPRIGHTS AS SHOWN TO FULLY TIGHTEN UPRIGHT, PLACE INCLUDED WRENCH INTO PIPE SLOTS AS SHOWN. TIGHTEN FULLY. PAGE 4...
- Page 5 BY HAND, SCREW ADJUSTABLE CONNECTORS TO BOTTOM UPRIGHTS SUFFICIENTLY & THEN ADJUST SO THAT IT ALIGNS AS SHOWN BELOW TIGHTEN THE SET SCREW USING HEX WRENCH TO LOCK ADJUSTABLE CONNECTOR IN PLACE. SET SCREW FACING OUT FACING OUT PAGE 5...
- Page 6 BY HAND, SCREW IN TOP UPRIGHTS TO HANGBAR AS SHOWN PAGE 6...
- Page 7 HAND WHEEL (UNTIGHTEN HAND WHEEL) DROP HANGBAR ASSEMBLY FROM STEP 7 AS SHOWN AT DESIRED HEIGHT & LOCK IN POSITION BY TIGHTENING THE HAND WHEEL. PAGE 7...
- Page 8 SCREW IN FACEOUTS TO HANGBAR PAGE 8...
