Summary of Contents for SYXmoto KXD505

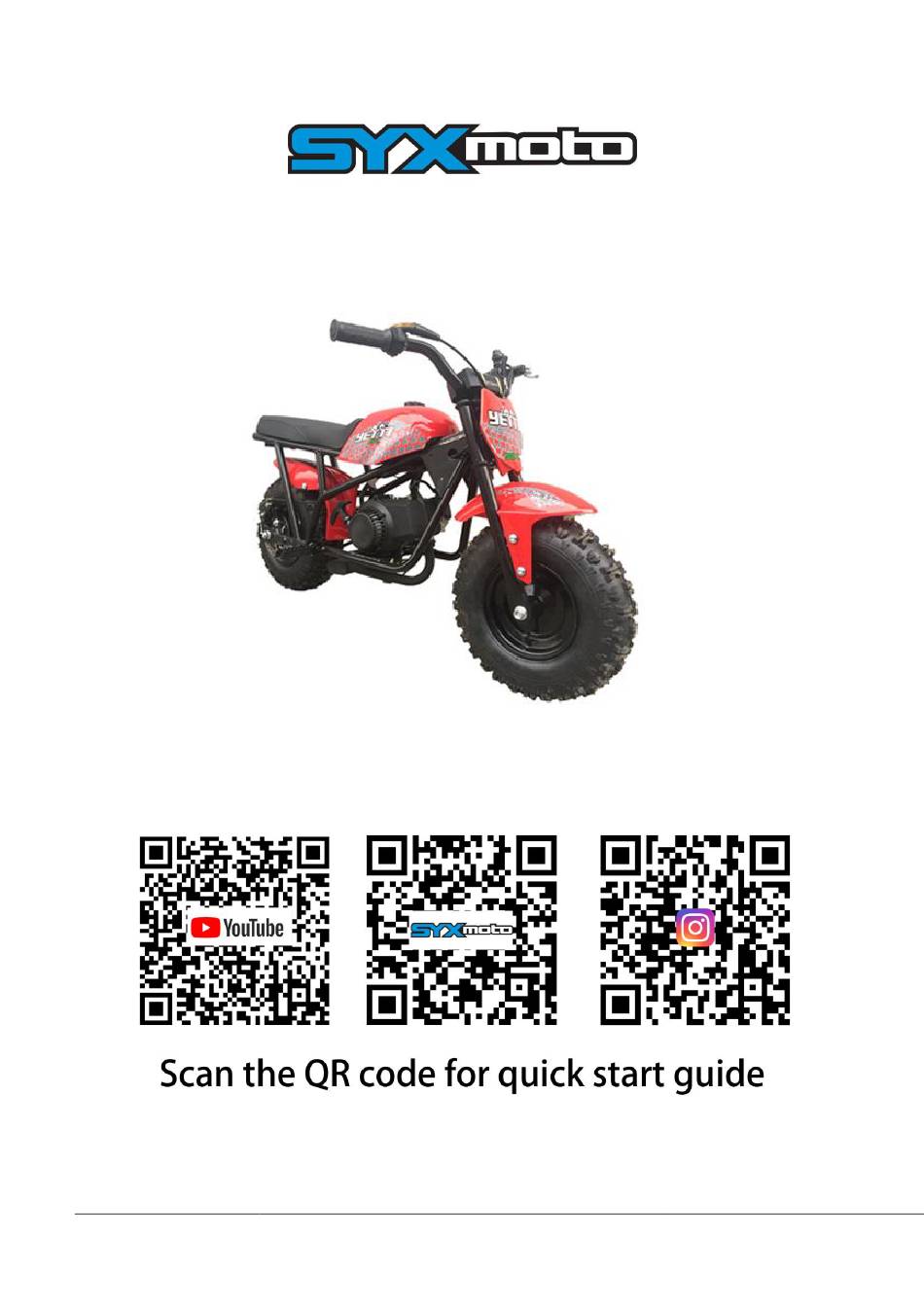

- Page 1 OWNERS MANUAL Please note that this is a general manual. The type of motorcycle that you own may differ from the pictures shown in this manual. support.syxmoto.com live chat or email us via service@syxmoto.com...
-
Page 2: Table Of Contents
Battery check (if available) ---------------------------------------------------------------------------------------------- 16 Tool bag inspection -------------------------------------------------------------------------------------------------------- 16 Protective riding gear ----------------------------------------------------------------------------------------------------- 16 Training ------------------------------------------------------------------------------------------------------------------------------ 17 Starting ------------------------------------------------------------------------------------------------------------------------------- 17 Riding --------------------------------------------------------------------------------------------------------------------------------- 17 Parking ------------------------------------------------------------------------------------------------------------------------------- 18 Cleaning ----------------------------------------------------------------------------------------------------------------------------- 18 Maintenance ----------------------------------------------------------------------------------------------------------------------- 18 Storage ------------------------------------------------------------------------------------------------------------------------------- 19 Trouble Shooting ----------------------------------------------------------------------------------------------------------------- 19 service@syxmoto.com... -
Page 3: Operating Instructions
2. User must understand the content of labels completely, and carry them out. 3. Make sure all the labels are clean and visible on the vehicle. 4. If the labels are damaged or have worn off, please ask your dealers for new warning labels. service@syxmoto.com... -
Page 4: Compliance With The Laws And Directives
To adjust the chain, loosen the axel bolts. Then loosen or tighten the adjuster nuts to get the chain at the proper tension. Finally, tighten the chain adjuster nuts, then the axel bolts. service@syxmoto.com... -
Page 5: The Position Of The Vin
Emergency turn off stop switch It’s will be on the left side, either on the rear frame, or on the left handlebar. Pull or press down the switch and the engine will stop. service@syxmoto.com... -
Page 6: Tire And Tire Gauge
If the number is too high, hold the gauge onto the tire valve until you get to the desired number. Replace the valve cap and screw it on after measuring. The position of spare parts, parameter, Electrical diagram, age warning and other warning labels and plates. service@syxmoto.com... - Page 7 Throttle Stop switch Fuel tank Rear brake lever Vin number Rear wheel Front wheel Rear brake disc Engine Muffler service@syxmoto.com...
- Page 8 PRODUCT NAME DIRT BIKE PRODUCT MODEL KXD505 LENGTH X WIDTH X HEIGHT 1020×610×650 ENGINE MODEL 1E44F-6 (mm) AXLE BASE (mm) BORE×STROKES 44.02x33.20 WHEEL BASE (mm) DISPLACEMENT (ml) 50.53 MIN GROUND CLEARANCE COMPRESSION RATE (mm) TURNING CIRCLE DIAMETER 2000 UNLOADING 2800±150...
- Page 9 LUBRICATE FRONT/REAR RIM TYPE STEEL WHEEL COOLING MODE AIR-COOLED HEADLIGHT SPECIFICATION FUEL BRAND ≥90# PRIMARY REDUCTION RATIO 3.20 MIXTURE RATIO OF FUEL 1:25 &LUBRICANT OIL 11.33 LWA dB(A) FINAL REDUCTION RATIO DRIVE RATIO 36.26 VIBRATION(m/s CIRCUIT DIAGRAM service@syxmoto.com...
- Page 10 service@syxmoto.com...
-
Page 11: Assembly Instructions
2. Install the handlebars. The included tools will be used in this step 3. front wheel installation 4. front fender installation The included tools will be used in this step The included tools will be used in this step service@syxmoto.com... - Page 12 The included tools will be used in this step 7. Mix the gas/oil at a ratio of 20-25/1 8. Now it’s ready to ride! Use regular 2 stroke oil and #91 octane fuel. Mix 1 gallon of fuel to 5.5 oz of 2 stroke oil. service@syxmoto.com...
- Page 13 service@syxmoto.com...
-
Page 14: Caution: Read Before Using
Please check with your local department of motor vehicles for regulations in your country/ state. Transporting your vehicle This is a process of transport the well-packed vehicle. 1. Ensure the packaging will protects the vehicle during transit. 2. Ensure the vehicle is well fixed on the trailer or forklift. 3. Handle with care. service@syxmoto.com... -
Page 15: Delivery
1. Check the rear hand brake. As you pull in the lever, the resistance should be firm. 2. The rear brake is mounted on the left side of the handlebar, or on the right side near the foot peg. service@syxmoto.com... -
Page 16: Battery Check (If Available)
Protective riding gear Protective riding gear is very important and must be worn. It will ensure your safety while riding and help you avoid injuries. Also see the warning labels placed on the vehicle for additional precautions. Protective clothing shown below: service@syxmoto.com... -
Page 17: Training
Make sure to use both the front and rear brake at the same time for efficient stopping. Never grab the brakes too hard, this can reduce the life of the brakes. Do not make dangerous movements while driving. service@syxmoto.com... -
Page 18: Parking
Check after 50 hours of use (1). Refasten the nuts of the cylinder (2). Clean the accumulated carbon both in the combustion chamber and in the exhaust of the cylinder. (3). Clean the accumulated carbon in spark plug, adjust the clearance to 0.5-0.7mm service@syxmoto.com... -
Page 19: Storage
Turn the key switch to “OFF” Clean the chain, and then lubricate it. Lubricate the cables. Place the vehicle in a cool, well-ventilated place to avoid dampness and sun exposure. Trouble Shooting 1. Failure to start service@syxmoto.com... - Page 20 (4). The fuel strainer is blocked. (5). Could be water in the gasoline. (6). The air hole of the tank lid is blocked. 5. Can’t shut off the engine The kill switch is not working correctly. 6. Have more questions? Visit support.syxmoto.com service@syxmoto.com...
