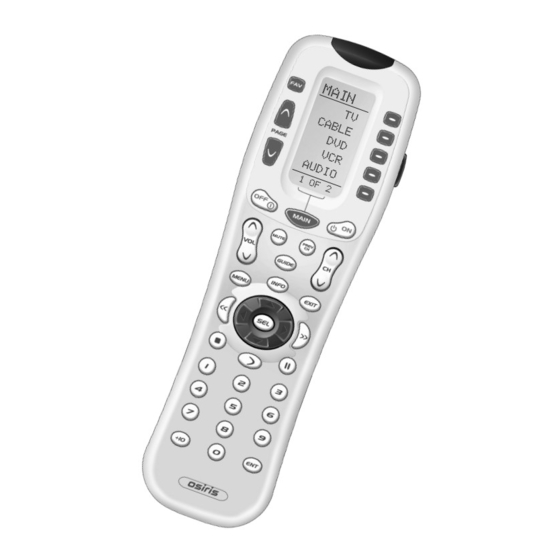

OSIRIS MX-350 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
APPENDIX I
: USER'S MANUAL
EUT Type:
Remote Controller
FCC ID: OZ5URCMX350N
Test Report No.: GETEC-E3-07-073
FCC Part 15 Subpart B,C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-350 and is the answer not in the manual?

Questions and answers

Summary of Contents for OSIRIS MX-350

  • Page 1 Test Report No.: GETEC-E3-07-073 FCC Part 15 Subpart B,C APPENDIX I : USER’S MANUAL EUT Type: Remote Controller FCC ID: OZ5URCMX350N...
  • Page 2 MX-350 Owner’s Manual...
  • Page 3 SIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Osiris is a registered trademark of Universal Remote Control, Inc. Power of Simple is a trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.

  • Page 4: Table Of Contents

    Editing Button Labels Macro Button Setup Favorite Channel Setup Hiding and Adding Pages Erasing Cloning One Osiris to Another Recalling Pre-Programmed Settings Utilizing Optional RF Base Stations IR/RF Signal Setting ID # - Setting Base Station Address EMITT - Setting IR Emitter Outputs...

  • Page 5: Getting Started

    In most systems, all you have to do to setup the Osiris is enter which brands and models you own. If you own a component too new to be in the library, the Osiris uses advanced learn- ing technology to quickly set each Osiris button, one at at time.

  • Page 6: Button Layout

    MAIN Menu. FUNCTION Buttons *Note: When a command, macro or favorite channel is being transmitted, an icon will appear in the top right corner of the display. While the Osiris is “busy”, it will ignore a button push.
  • Page 7 T h e O s i r i s Selecting a New DEVICE Changes All Button Commands Instantly The Osiris can operate ten different devices even though it is only one remote control. Let’s try it now! Press the MAIN button, then press the TV DEVICE button.

  • Page 8: Basic Setup

    You are in SETUP mode now. Note: You have 30 seconds to perform a step while you are in SETUP mode. If you don’t press a button within that time, the Osiris will time out and return to normal operation.
  • Page 9 T h e O s i r i s Press the P-PRO button to select the Pre-Programmed Method. P-PRO Button The display changes so that you can select which Device button to setup. First Five Device Names Press a Page button to display the other five Device names.
  • Page 10 126, 185, 194 and 085 under Sony in the TV TABLE. Using the numbered buttons on the Osiris, I entered 070 and looked at the TV. It didn’t turn off, so I entered 139, then 147 and so on, until I found the code that powered...
  • Page 11 T h e O s i r i s Note: If a component fails to turn off after you have entered all of the code numbers listed for your brand, you can scan through the other brands in the table using the UP and DOWN buttons to change the code number displayed, then tapping either the Power On or Power Off buttons to see if the compo- nent powers on or off (there is a chance that your component was actually manufactured by another brand).

  • Page 12: Learning Method

    “SETUP”. You are in SETUP mode now. Note: You have 30 seconds to perform a step while you are in SETUP mode. If you don’t press a button within that time, the Osiris will time out and return to normal operation.
  • Page 13 T h e O s i r i s The display will show a list of the first five devices. Select the device you would like to teach commands to by pressing the Device button. Press any of the Device Buttons.
  • Page 14 7 until you have learned all the buttons you want. If the “FAILED” label appears on top of the display, try to teach the same button in Osiris once again by repeating steps 6-7. Continue to teach any commands from any of your remote controls by repeating steps 5-7 (to go back to step five, press MAIN once).

  • Page 15: Volume Control Punch Through

    In some systems, it is the TV speakers that make the sound, so you would use the TV device on the Osiris to raise and lower the volume. In another system, it might be a surround sound receiver and speakers that control the sound, so you would use the Osiris’s AUDIO device to adjust the volume.
  • Page 16 U n i v e r s a l R e m o t e C o n t r o l , I n c . Press the device button for the device that doesn’t have volume control commands yet (i.e.,DVD). This is the device you are going to PUNCH TO for the volume and mute commands.

  • Page 17: Advanced Operation

    Advanced Operation Setting Backlight Options You can adjust the amount of time that the Osiris backlight stays on by entering the SETUP mode and proceeding to page two (using the PAGE UP button), then pressing the LIGHT button on the display (not the Backlight button).
  • Page 18 U n i v e r s a l R e m o t e C o n t r o l , I n c . Adjusting Contrast You can make the text darker by pressing both the MAIN and cursor UP buttons at the same time.

  • Page 19: Advanced Setup

    You are in SETUP mode now. Note: You have 30 seconds to perform a step while you are in SETUP mode. If you don’t press a button within that time, the Osiris will time out and return to normal operation. Press the EDIT button.
  • Page 20 U n i v e r s a l R e m o t e C o n t r o l , I n c . Press the button you wish to edit. The first character of your button label blinks.
  • Page 21 T h e O s i r i s When you are finished editing the button, press the button you edited and “SAVED” will flash at the bottom of the display. To change any other button labels on the same device, press the next button, then repeat steps 6-8.

  • Page 22: Macro Button Setup

    Enter the SETUP mode by pressing and holding both MAIN and ENT for three seconds. Note: You have 30 seconds for each step, otherwise the Osiris will time out automatically. Press the MACRO button. The top of the display will show “MACRO”.
  • Page 23 T h e O s i r i s Navigate to the Device and Page that has a button you want in your macro using the MAIN, DEVICE and PAGE buttons. Then press the button with the command you want. Whenever a button is pressed, another Macro step is counted and displayed at the bottom of the screen.

  • Page 24: Favorite Channel Setup

    Favorite Channel button, follow these steps: Enter SETUP mode by pressing and holding both MAIN and ENT for three seconds. Note: You have 30 seconds for each step, otherwise the Osiris will time out automatically. Press the FAV display button.
  • Page 25 T h e O s i r i s Note: If a number is repeated when setting the channel (for example,channel “33” or “522”) it is usually best to set a half second delay in between the identical numbers by pressing the PAUSE button. Each press of the PAUSE button increases the delay by a half second.

  • Page 26: Hiding And Adding Pages

    However, after you finish Macro setup, you can hide pages without affect- ing operation of your macros. Enter SETUP mode by pressing and holding both MAIN and ENT for three seconds. Note: You have 30 seconds for each step, otherwise the Osiris will time out automatically. Press the EDIT button. EDIT Button Press the PAGE button.
  • Page 27 T h e O s i r i s Navigate to any page, using the MAIN, DEVICE, FAV, and PAGE but- tons. Button DEVICE Buttons PAGE Buttons MAIN Button When you select a page, the top of the screen indicates whether you want to “ADD?” or “HIDE?” the page dis- played.

  • Page 28: Erasing

    Enter SETUP mode by pressing and holding both MAIN and ENT for three seconds. Note : You have 30 seconds for each step, otherwise the Osiris will time out automatically. Press a PAGE button to display page two of Setup.

  • Page 29: Cloning One Osiris To Another

    Button Cloning One Osiris to Another If you own two or more Osiris, you can copy and transfer all the setup from one Osiris to another. Just follow these easy steps: Enter SETUP mode by pressing and holding both MAIN and ENT for three seconds.

  • Page 30: Recalling Pre-Programmed Settings

    U n i v e r s a l R e m o t e C o n t r o l , I n c . Recalling Pre-Programmed Settings If you didn’t write down the code numbers you setup your Osiris with, you can recall them via this simple process: Enter SETUP mode by pressing and holding both MAIN and ENT for three seconds.

  • Page 31: Utilizing Optional Rf Base Stations

    Osiris. In operation it’s simple: when you select a device located in the Den, the Osiris only talks to the base station in the Den. When you select a device located in the Family...
  • Page 32 U n i v e r s a l R e m o t e C o n t r o l , I n c . The Osiris sends radio signal to the MRF-100, MRF-250 or the MRF-300 RF Base Stations.
  • Page 33 T h e O s i r i s RF Settings Overview The Osiris is factory set to work out of the box with an MRF-100 base sta- tion, which is not addressable. The only setting that affects operation with an MRF-100 is the RF/IR setting (to operate, the Osiris must be set to IR/RF or RF- it will not operate the MRF-100 in IR mode).

  • Page 34: Ir/Rf Signal Setting

    (one directly from the Osiris, one from the RF base station). A good reason to set the signal to IR only is that another room has an MRF-100 base station (no RF address) so...
  • Page 35 Osiris. Then, go to Step 4. Select DEVIC to change the signal settings to just one of the devices in the Osiris. Then, go to Step 3. The display changes to a list of the names of your devices. If you have two pages of devices, pressing either of the page buttons will display the other page.

  • Page 36: Id # - Setting Base Station Address

    You can operate up to 15 different equipment locations, each with an MRF-250 or MRF-300 assigned a unique Receiver ID#. You program each or all of your Osiris devices to the appropriate equipment location by assigning the corresponding ID# in the RF Settings Menus.

  • Page 37: Emitt - Setting Ir Emitter Outputs

    Each button push (or macro step) is rout- ed to the specific IR Line Output you’ve assigned to a device. In the factory set default settings, the Osiris is set to route IR com- mands from any device to ALL IR Line Outputs simultaneously. To change the Osiris default settings follow these steps: From the RF Settings Menu, select EMITT.

  • Page 38: Blast - Setting The Front Panel Blaster On Or Off

    U n i v e r s a l R e m o t e C o n t r o l , I n c . The display changes to a list of the names of your devices. If you have two pages of devices, pressing either of the page buttons will display the other page.
  • Page 39 Osiris. Select ALL to change the blaster settings to ALL devices in the Osiris. Then, go to Step 4. Select DEVIC to change the blaster settings to just one of the devices in the Osiris. Then, go to Step 3.

  • Page 40: Pre-Programmed Code Tables

    U n i v e r s a l R e m o t e C o n t r o l , I n c . Pre-Programmed Code Tables The Osiris’s Pre-Programmed code library is divided into categories (TV, VCR, AUX, etc.). Each category actually includes many types of components. For example, the VCR category includes TV/VCR combo units.
  • Page 41 TV - TVs, Plasmas, Projectors and Monitors BRAND CODE NUMBERS ADMIRAL 072 081 161 160 ADVENT AKAI 197 146 248 A MARK 112 143 AMPRO 167 073 157 183 AMSTRAD ANAM 043 054 056 080 112 131 197 004 112 058 APEX DIGITAL 006 310 AUDIOVOX...
  • Page 42 TV (continued) - TVs, Plasmas, Projectors and Monitors BRAND CODE NUMBERS 038 034 070 083 145 199 210 240 241 KENWOOD 197 070 KLOSS 002 059 043 197 143 154 113 116 102 004 106 112 119 127 143 243 284 363 365 LODGENET LOEWE LOGIK...
  • Page 43 TV (continued) - TVs, Plasmas, Projectors and Monitors BRAND CODE NUMBERS SOLE 231 232 SONY 070 139 147 126 185 194 085 213 277 279 SOUNDESIGN 028 004 003 043 SPECTRICON 004 043 SUPRE MACY SYLVANIA 197 003 059 060 063 064 164 044 160 127 SYNTAX OLEVIA TANDY TATUNG...
  • Page 44 CABLE (continued) - Cable Set Top Boxes BRAND CODE NUMBERS CENTURION CENTURY CHARTER 043 074 CITIZEN COGECO COMBANO 080 081 COMCAST 043 074 110 COMSAT COX DIGITAL 043 074 DIGICABLE EAGLE 020 030 040 EASTERN 057 066 ECHOSTAR ELECTRICORD GEMINI 008 054 GENERAL ELECTRIC GENERAL INSTRUMENT 074 103 104...
  • Page 45 CABLE (continued) - Cable Set Top Boxes BRAND CODE NUMBERS STARCOM 002 004 008 009 STARGATE 008 030 097 104 SUSQUEHANNA 043 074 TIME WARNER 043 074 TOCOM 039 040 056 TOSHIBA UNITED CABLE 004 053 UNIVERSAL 005 007 014 032 035 VIDEOTRON VIEWSTAR 012 015 018 086 087 088 089...
  • Page 46 DVD (continued) - DVD Players BRAND CODE NUMBERS PIONEER 023 092 099 107 108 131 POLAROID 233 234 237 PRIMARE 193 194 PROCEED PROSCAN 026 027 026 027 RJTECH ROTEL SAMSUNG 056 070 119 165 170 137 159 SANSUI SANYO SENSORY SCIENCE 222 223 SHARP SONY...
  • Page 47 DVD-DVD/VCR Combos BRAND CODE NUMBERS GO VIDEO 137 218 PANASONIC PHILIPS 105 (VCR Functions for VCR 067) POLAROID SAMSUNG 137 159 SANSUI SONY 145 191 TOSHIBA ZENITH 091 (VCR Functions for VCR171) DVD Recorder BRAND CODE NUMBERS GATEWAY GO VIDEO 220 221 222 KISS LITEON...
  • Page 48 VCR - VCRs BRAND CODE NUMBERS AIWA 034 161 AKAI 016 146 043 046 124 125 142 AMPRO ANAM AUDIO DYNAMICS 012 023 039 043 BROOKSONIC 035 037 129 CANON 028 031 CAPEHART CRAIG 003 040 135 CURTIS MATHES 031 041 DAEWOO 111 116 117 119 005 007 010 065 108 110 112 DAYTRON...
  • Page 49 VCR (continued) - VCRs BRAND CODE NUMBERS QUARTZ 002 014 QUASAR 066 145 075 RADIO SHACK 107 109 144 147 158 041 145 013 020 140 034 040 REALISTIC 003 008 010 014 031 034 040 053 054 101 RICO RUNCO SALORA SAMSUNG...
  • Page 50 VCR (continued) - TV/VCR Combos BRAND CODE NUMBERS PHILIPS 034 067 RADIO SHACK SEARS SONY 057 154 SYLVANIA SYMPHONIC THOMAS ZENITH AUDIO BRAND CODE NUMBERS ADCOM 082 092 225 161 269 355 356 366 AIWA 170 018 104 202 203 213 211 188 AKAI 138 189 125 126 127 128 258 281 282 038...
  • Page 51 AUDIO(continued) BRAND CODE NUMBERS ESCIENT 368 381 451 452 453 454 FANFARE FISHER 047 214 180 182 297 FLEXTRONICS FOSGATE 062 231 FOSGATE AUDIONICS 342 056 260 GOLDSTAR HAFLER HARMAN KARDON 231 233 254 153 154 118 121 227 277 317 318 365 HITACHI IMERGE INKEL...
  • Page 52 AUDIO(continued) BRAND CODE NUMBERS REQUEST REVOX ROTEL 074 083 085 RUSSOUND 379 391 392 SAMSUNG 016 571 SANSUI 040 048 110 119 065 228 SANYO 047 059 SCOTT 019 091 SEARS SHARP 026 094 131 175 181 SHERWOOD 024 038 055 102 103 105 106 051 030 447 SONY 018 093 223 247 248 160 166 015 101 184 218 271 353 369 372 380 417 421 SOUNDESIGN...
  • Page 53 SAT(continued) BRAND CODE NUMBERS MAGNAVOX MEMOREX MITSUBISHI 068 154 MOTOROLA NEXT LEVEL PANASONIC 142 160 PANSAT PAYSAT PHILIPS 152 153 156 068 154 136 108 117 PROSCAN 151 106 150 RADIOSHACK 151 106 150 SAMSUNG 123 155 163 169 175 SONY STAR CHOICE TOSHIBA...
  • Page 54 CD (continued) - CD Changers and Players BRAND CODE NUMBERS JCPENNEY 014 061 092 141 JENSEN 004 022 136 163 213 214 242 243 KENWOOD 185 007 023 055 071 072 142 137 254 KOSS KRELL KYOCERA LOTTE LUXMAN 011 028 070 076 249 252 MAGNAVOX 044 107 MARANTZ...
  • Page 55 CD (continued) - CD Changers and Players BRAND CODE NUMBERS THETA DIGITAL 234 235 TOSHIBA 006 067 091 160 148 VECTOR RESEARCH VICTOR 004 022 114 124 WARDS 185 033 YAMAHA 024 046 054 186 183 245 YORX DVR-PVR, TIVO BRAND CODE NUMBERS DISH...
  • Page 56 AUX (continued) BRAND CODE NUMBERS KENWOOD KENSINGTON KEYSPAN LITE-TOUCH 208 257 LUTRON 158 159 077 MAKITA 186 201 MICROSOFT/XBOX 408 107 MINDPATH NILES 160 187 PIANO DISC PLUS 085 POLKAUDIO RUSSOUND SCIENTIFIC ATLANTA 163 156 SIMA SOLO ELECTRONICS 207 SOMFY 078 079 SONY 164 165 166 261 262...
  • Page 57 AUX (continued) -TAPE BRAND CODE NUMBERS TEAC 009 059 212 TECHNICS 007 010 076 088 109 122 193 TOSHIBA VICTOR YAMAHA 021 026 031 067 040 AUX-Media PC Controls BRAND CODE NUMBERS DELL 261 262 GATEWAY 261 262 HAUPPAUGE 294 295 261 262 KEYSPAN SONY...

  • Page 58: Frequently Asked Questions

    Frequently Asked Questions What is a “macro” button? It is an Osiris button you set to make a lot of things happen when you press it. For example, to watch a DVD in most home theaters requires several remote controls and many button presses (power up the TV,...

  • Page 59: Warranty

    U n i v e r s a l R e m o t e C o n t r o l , I n c . Warranty The Osiris is covered against any manufacturers defects or workmanship for a period of one year from the date of purchase if purchased from an authorized Universal Remote Control dealer.

  • Page 60: Memo

    M E M O...
  • Page 61 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 OCE-0024B Rev. 04...
  • Page 62 Information To The User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi-...
