Summary of Contents for Tech4Pets T4P-TRTPOOPER

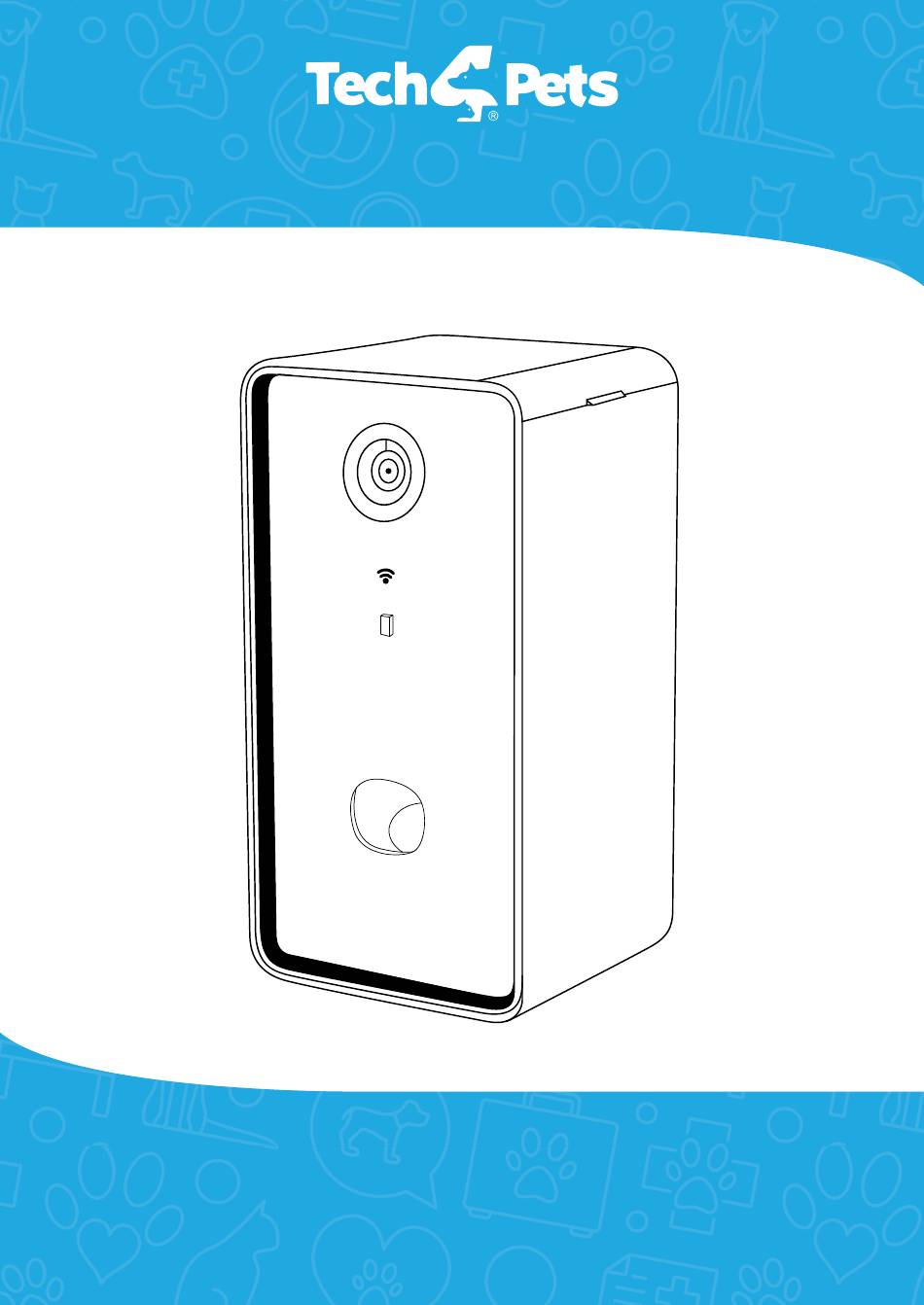

- Page 1 User Manual Smart Treat Dispenser T4P-TRTPOOPER...
- Page 2 Thank you for your purchase! Laser Corporation is 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and more, please scan the following QR code: SPK-ST40-972...
-
Page 3: What's In The Box
WHAT’S IN THE BOX • Smart Treat Dispenser • USB Cable • Power Adapter • User Manual... -
Page 4: Specifications
SPECIFICATIONS Laser SmartHome App: iOS 7.0 or Android 5.0 Software Requirements: and higher 1080p Video Resolution: 130° Wide Angle Camera: with Night Vision 500g Food Bin Capacity: 2 – 10mm Food Size: (dry food only) Wi-Fi 2.4GHz Wireless Technology: (5GHz not supported) Input: 100 - 240V, 50Hz/60Hz, 0.4A... -
Page 5: Product Diagram
PRODUCT DIAGRAM (insert treats here) Camera Microphone Indicator Light Setup & Manual Treat Button Treat Outlet USB Power... - Page 6 INDICATOR LIGHT STATE • Slow blinking - AP Pairing Mode. GREEN light - EZ or QR Code Pairing Mode. • Fast blinking GREEN light • Solid GREEN - Device is ON and network light connected. • Slow blinking - No treats in the bucket or light dispenser is blocked.
-
Page 7: Button Controls
BUTTON CONTROLS • Tap the “Setup & Manual Treat Button” to manually dispense treat (no need to connect to the App). • Press and hold the button for 8 seconds to reset the device and put into network pairing mode. There are 2 flashing states •... -
Page 8: Getting Started With The App
GETTING STARTED WITH THE APP 1. Install the Laser SmartHome App for your Smartphone from the iOS App Store or Google Play Store. 2. Log in with an existing Laser SmartHome account or create a new account. -
Page 9: Connecting To The App
CONNECTING TO THE APP 1. Press and hold the “Setup & Manual Treat Button” on the Treat Dispenser for 8 seconds till you get a fast-flashing Green light. If the light is flashing slowly, press and hold the button again till you get the fast-flashing version. - Page 10 CONNECTING TO THE APP continued... 3. Select the “Small Home Appliances” category on the left then select “Pet Feeder with Camera (Wi-Fi)”. 4. Enter your Wi-Fi details...
- Page 11 CONNECTING TO THE APP continued... 5. On the next screen tap the option in the top right and select “QR Code”. 6. Select the checkbox, then tap Next.
- Page 12 CONNECTING TO THE APP continued... 7. On the next screen you will need to hold the QR Code on the App towards the camera lens on the Treat Dispenser. A tone will be heard when done correctly. Tap “I Heard a Prompt” to continue. Tip: Move the QR code on the phone away, then towards the camera lens a few times so that...
- Page 13 CONNECTING TO THE APP continued... 9. When finished pairing tap “Done”, then the device will appear on the Laser SmartHome App home screen. NOTE: If you are unable to pair successfully with the Treat Dispenser, please check your Wi-Fi password and make sure you are only using a 2.4GHz Wi-Fi connection.
- Page 14 USING THE TREAT DISPENSER Back Setting Listen Make video image Screen Take Record Screenshot Talk Feed Photo Album Set Schedule...
-
Page 15: Troubleshooting
TROUBLESHOOTING Why is the treat not dispensing? • Check the food bucket has available food. • If the food bucket is not empty, check if the outlet is blocked. Clean or unblock if necessary (please power off the device during cleaning). •... - Page 16 Visit our website www.laserco.com.au Check us out at www.youtube.com/lasercoau...
