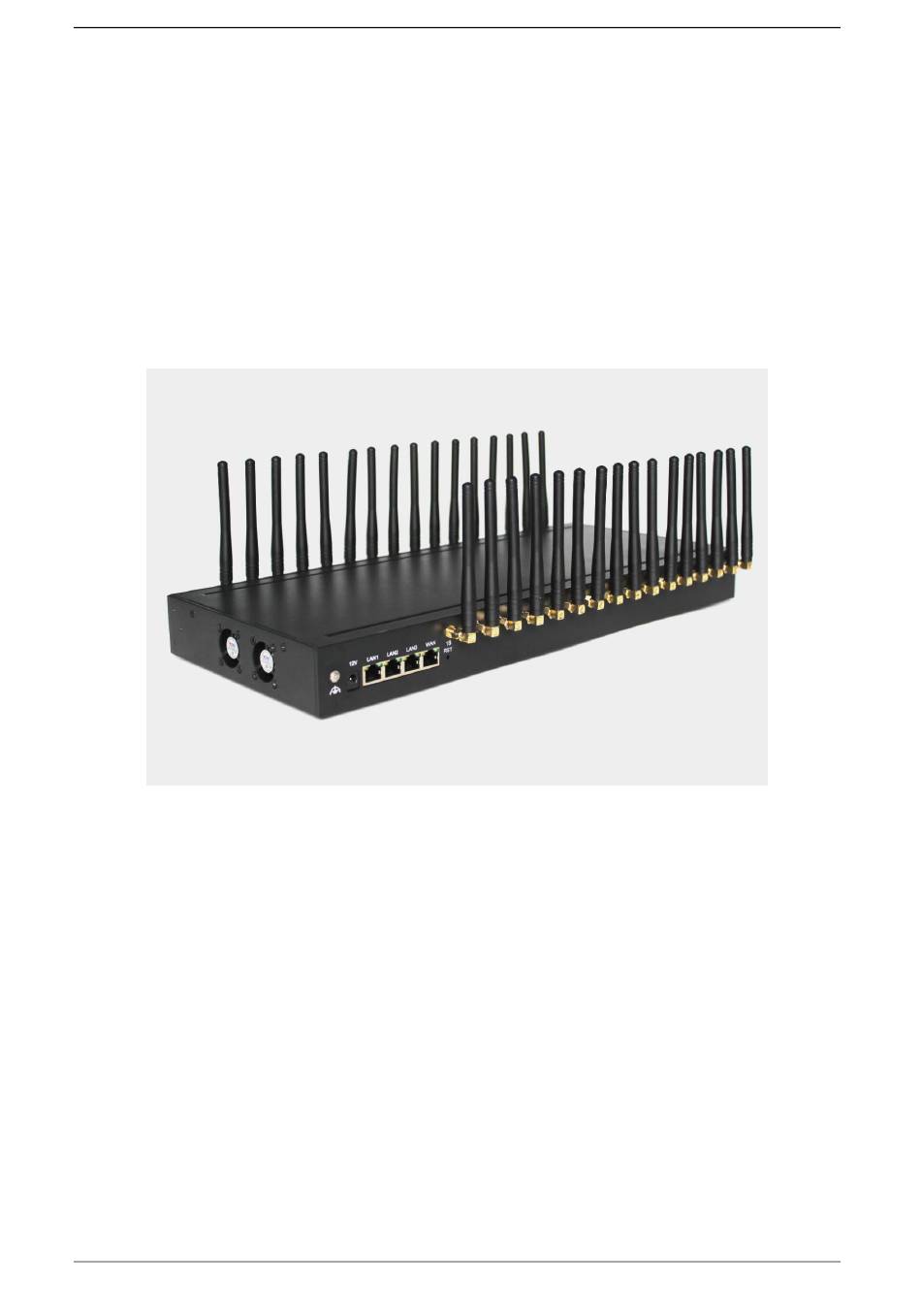

  • Page 1 MTR716 User Manual MTR716 Router User Manual...

  • Page 2: Table Of Contents

    MTR716 User Manual Contents Chapter Ⅰ Equipment Information ..............4 Product Brief ..................4 Product Application ................4 Product Appearance ................5 Special Features ..................6 Chapter Ⅱ Equipment Installation ..............7 SIM Card Placement ................7 Antenna Installation ................7 Network Connection ................
  • Page 3 MTR716 User Manual 3.4.2 SMS Receive ........................ 21 3.4.3 SMS Forward ........................22 3.4.4 SMS Control ......................... 25 3.4.5 SMPP Settings ......................26 3.4.6 EIMS Settings .......................29 3.4.7 Prefix route ........................30 3.4.8 SMS Filter ........................31 Network Setting ................... 32 3.5.1 VPN settings ......................... 32 3.5.2 Interface Settings ......................

  • Page 4: Chapter Ⅰ Equipment Information

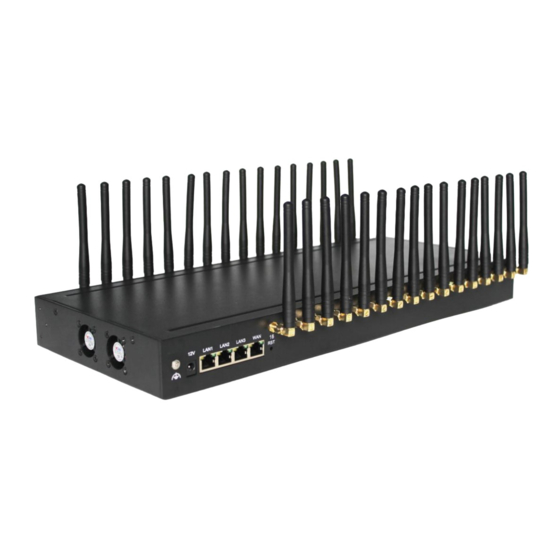

    Chapter Ⅰ Equipment Information Product Brief MTR716 Router is a routing product independently . In addition to basic functions such as routing, it also support socks5 proxy, http&https proxy, port forwarding , sms sending and receiving and so on. It has the characteristics of economy, security and efficiency.

  • Page 5: Product Appearance

    MTR716 User Manual Product Appearance Back Panel Figure 1.3-1 Back Panel Description of the front panel(from left to right)：  1 Ground connection  1 reset button (press RST button about 10s will restore to factory settings)  1 Power Interface (DC 12V 5A) ...

  • Page 6: Special Features

    MTR716 User Manual Description of the front panel(from left to right) ：  16 SIM slots (4 SIM cards per channel)  1 Power light (indicate the status of the power connection)  2 fans  1 Console Interface (USB to Serial, Baudrate 115200) Special Features ...

  • Page 7: Chapter Ⅱ Equipment Installation

    MTR716 User Manual Chapter Ⅱ Equipment Installation SIM Card Placement Insert SIM cards like the figure 2.1-1. The SIM cards should be mini-SIM (2FF). Figure 2.1-1 SIM Card Placement Antenna Installation The external antenna should be installed vertically always on a site with a good wireless signal.

  • Page 8: Power Connection

    MTR716 User Manual Figure 2.3-1 Network Connection Power Connection Connect the small end of the power cable to the power input on the back panel, and plug the other end of the cable into a 220V power outlet. Figure 2.4-1 Power Connection 2.5 Serial Connection...

  • Page 9: Chapter Ⅲ Web Settings

    MTR716 User Manual Figure 2.5-1 Serial Connection Chapter Ⅲ Web Settings Login Open the web browser and type the IP address. If it is the first time you login the gateway, please use the default settings below: IP Address: 192.168.1.67...

  • Page 10: System Settings

    MTR716 User Manual Figure 3.1-1 Login web System Settings 3.2.1 Admin The default username/password of gateway are admin/admin. You are allowed to change the password on this page. Figure 3.2.1-1 Admin 3.2.2 System config...
  • Page 11 MTR716 User Manual System On this page, you can change time zone and NTP settings, the device also can be used as a NTP server. Figure 3.2.2-1 System Set Public IP Config When the sim card online and it dial ok, most of the sim cards can’t show the public IP, you...
  • Page 12 MTR716 User Manual Figure 3.2.2-2 IP config 3.2.3 System operation Import On this page, you can update the firmware for device, you can also update other files like rom, license etc. Figure 3.2.3-1 Import file Restore To Factory Sometimes there is something wrong with your device that you don’t know how to solve it, mostly you will reset it.

  • Page 13: Gateway Settings

    MTR716 User Manual Figure 3.2.3-2 Restore to factory Reboot device Click restart to reboot device. Figure 3.2.3-1 Reboot device 3.2.4 Network test It’s used to test the reachability of the destination server. Figure 3.2.4-1 Network test Gateway Settings 3.3.1 IMEI Settings IMEI means International Mobile equipment Identity, it is a 15-digit number.
  • Page 14 MTR716 User Manual Figure 3.3.1-1 IMEI Settings You can set any different IMEI for every port, just set 14-digit number, the last digit will generate itself. If you need set with special prefix, just click “copy” , you can see the figure as...

  • Page 15: At Command

    MTR716 User Manual above: set 865 in port 1, after click “copy”, every port will have a IMEI prefix 865, click “auto complete”, the IMEI prefix will generate automatically. If you just put an IMEI prefix in the blank, the IMEI will changed when SIM switch(default), and also you can change the conditions for changing above.

  • Page 16: Switch Card

    MTR716 User Manual Figure 3.3.3-1 USSD List 3.3.4 Switch Card Basic Settings When sim card locked, device will send a sms to destination mobile for warning. Figure 3.3.4-1 Basic Setting Conditions for Switch Card When the SIM reaches any conditions below, device will lock/switch it.
  • Page 17 MTR716 User Manual Figure 3.3.4-2 Locking Card Conditions We take “accumulated failed SMS checking” for example to explain the lock/switch function. Items Description If it is enabled, the accumulated failed SMS will be used as a Enable or Not condition for system to check.

  • Page 18: Apn Settings

    MTR716 User Manual 3.3.5 APN settings If the sim card dialed failed, please try to configure APN. Figure 3.3.5-1 APN Settings 3.3.6 Remote MGT We can’t access in device web interface with other network if the device is behind NAT, ETMS is the remote system which can help us access in the device with other network.

  • Page 19: Data Control

    MTR716 User Manual Items Description Server type Disable or enable ETMS Server IP ETMS server ip Server Port The port of ETMS service. Default is 50000 Account ETMS device account. Password Password of ETMS device account. status The Registration status of gateway with ETMS server.

  • Page 20: Sms Settings

    MTR716 User Manual The value of limitation. After this month data usage reaches this Data Ctrl Month Limit value, the SIM will be locked by device. 0 means no limit. The value of limitation. After total data usage reaches this value, Data Ctrl Total Limit the SIM will be locked by device.

  • Page 21: Sms Receive

    MTR716 User Manual SMS records will be show below. Figure 3.4.1-1 Send SMS 3.4.2 SMS Receive You can check the latest SMS content and clean up all the SMS content on this page. Figure 3.4.2-1 SMS Content If you want to check more SIM content of this SIM, please click “Details” button.

  • Page 22: Sms Forward

    MTR716 User Manual Figure 3.4.2-2 SMS Details 3.4.3 SMS Forward Emai to message Figure 3.4.3-1 Email to message Items Description Enabled, use email send to the email address which configured, the Email to messages content will send by device sim card to destination mobile...
  • Page 23 MTR716 User Manual Figure 3.4.3-2 forward by HTTP Items Description GET: the sms content will be in request line Forward protocol POST: the sms content will be in request body The URL which the sms forward to. User name If destination url need username, can set here.
  • Page 24 MTR716 User Manual When sim card receive sms, will forward the sms to the destination mobile which is set in “forward number” Figure 3.4.3-3 forward by GSM SMS forward SIP Figure 3.4.3-4 forward by SIP Items Description Server ip Sip server ip.

  • Page 25: Sms Control

    MTR716 User Manual SMS forward email Figure 3.4.3-5 forward by Email Items Description Email: when sim card receive sms, device will use sender email address Forward protocol send email to recipient. Disable: all sms send to one email address. Multiple Port Enabled: different port send to different email address.

  • Page 26: Smpp Settings

    MTR716 User Manual you restart the device or pull off the SIM. Figure 3.4.4-1 SMS control Items Description SMS ctrl Mode Enable or disable SMS control SMS Ctrl Day limit The maximum sms which sim card can send every day.
  • Page 27 MTR716 User Manual Figure 3.4.5-1 Basic Settings Items Description client: device work as smpp client SMPP server: device work as smpp server, if device is in NAT, need to forward the device smpp port first. Port Device smpp port Account Smpp account for smpp client register.
  • Page 28 MTR716 User Manual Figure 3.4.5-2 Advanced Settings Items Description Enabled: forward sms to smpp client. Forward sms Disabled: don’t forward sms to smpp client. Sms Report Msg Type Sms report message type, default is Deliver_SM. Submitted: when device receive request, send back submit ok.

  • Page 29: Eims Settings

    MTR716 User Manual Translation list This settings is used for remove country code, some country, sending sms with country will be failed Figure 3.4.5-3 Translation List 3.4.6 EIMS Settings EIMS is a SMS server which connect with device by private protocol. It also support HTTP, SMPP to connect the third-party SMS system to send and receive SMS.

  • Page 30: Prefix Route

    MTR716 User Manual Items Description Server Type Enable or disable eims setting. Server address EIMS server ip, default port 20002. User Name The device account in EIMS Password Account’s password Registeration status OK means register successfully Table 3.4.6-1 Basic Settings 3.4.7 Prefix route...

  • Page 31: Sms Filter

    MTR716 User Manual Figure 3.4.7-2 port prefix 3.4.8 SMS Filter SMS filter is used for filtering the spam message, configure the sender number or sensitive word. When the receive sms match with sender or sensitive word, the receive sms will not show in page “SMS receive”, it will shows in SMS Trash Box, and also these sms will not forward to third-party system.

  • Page 32: Network Setting

    MTR716 User Manual Figure 3.4.8-2 SMS trash box Network Setting 3.5.1 VPN settings A virtual private network (VPN) extends a private network across a public network, such as the Internet. It enables a computer or network-enabled device to send and receive data across shared or public networks as if it were directly connected to the private network, while benefiting from the functionality, security and management policies of the private network.

  • Page 33: Interface Settings

    MTR716 User Manual 3.5.2 Interface Settings This page can view the current network interface status information of the device, and also you can edit wan port ip and redial 4G interface in this page. Figure 3.5.2-1 Interface Settings 3.5.3 Routes This page is mainly used to display the current routing information of the device.

  • Page 34: Application Settings

    MTR716 User Manual Port forwarding: allows remote computers (for example, computers on the Internet) to connect to a specific computer or service within a private local-area network (LAN). But sim card need public ip. Traffic rules: traffic transfer between different areas is defined.

  • Page 35: Http Proxy

    MTR716 User Manual 3.6.2 HTTP Proxy This page is used to configure http and https proxy. Figure 3.6.2-1 HTTP Proxy 3.6.3 SSH Tunnel This page is used to configure SSH tunnel, SSH tunnel is used to forward the device tcp port.

  • Page 36: Software Log

    MTR716 User Manual Figure 3.7.1-1 System log 3.7.2 software log This page is used to download software log. Figure 3.7.2-1 Software log 3.7.3 Log Settings You can enable the specific progress module running logs to monitor the device working status, and set the log file counts. Device will save 5 logs as default. You can back to software log page to download these log files.

  • Page 37: Statistics

    MTR716 User Manual 3.8 Statistics 3.8.1 Data statistics This page can view sim card data statistics. Figure 3.8.1-1 Data statistics 3.9 System Status 3.9.1 Port Status There are two ways to show port status, panel mode and list mode, click the menu to select the mode.
  • Page 38 MTR716 User Manual Figure 3.9.1-1 Panel mode Items Description SIM card is detected, but it is not active. SIM card inserted, but the module not read the card. SIM card inserted, and module already read the card. SIM card is registered.
  • Page 39 MTR716 User Manual Figure 3.9.1-2 List mode Items Description Port Number of device ports. The SIM slot number SIM Status Indicates whether SIM dial ok or not Online Dur. The online duration of sim card The sim card ip when dial successfully...
