20G212-00 E3
2016-05-19
G212
PCIe MiniCard Carrier for Wireless Functions
3U CompactPCI Serial
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G212 and is the answer not in the manual?

Questions and answers

Summary of Contents for MEN G212

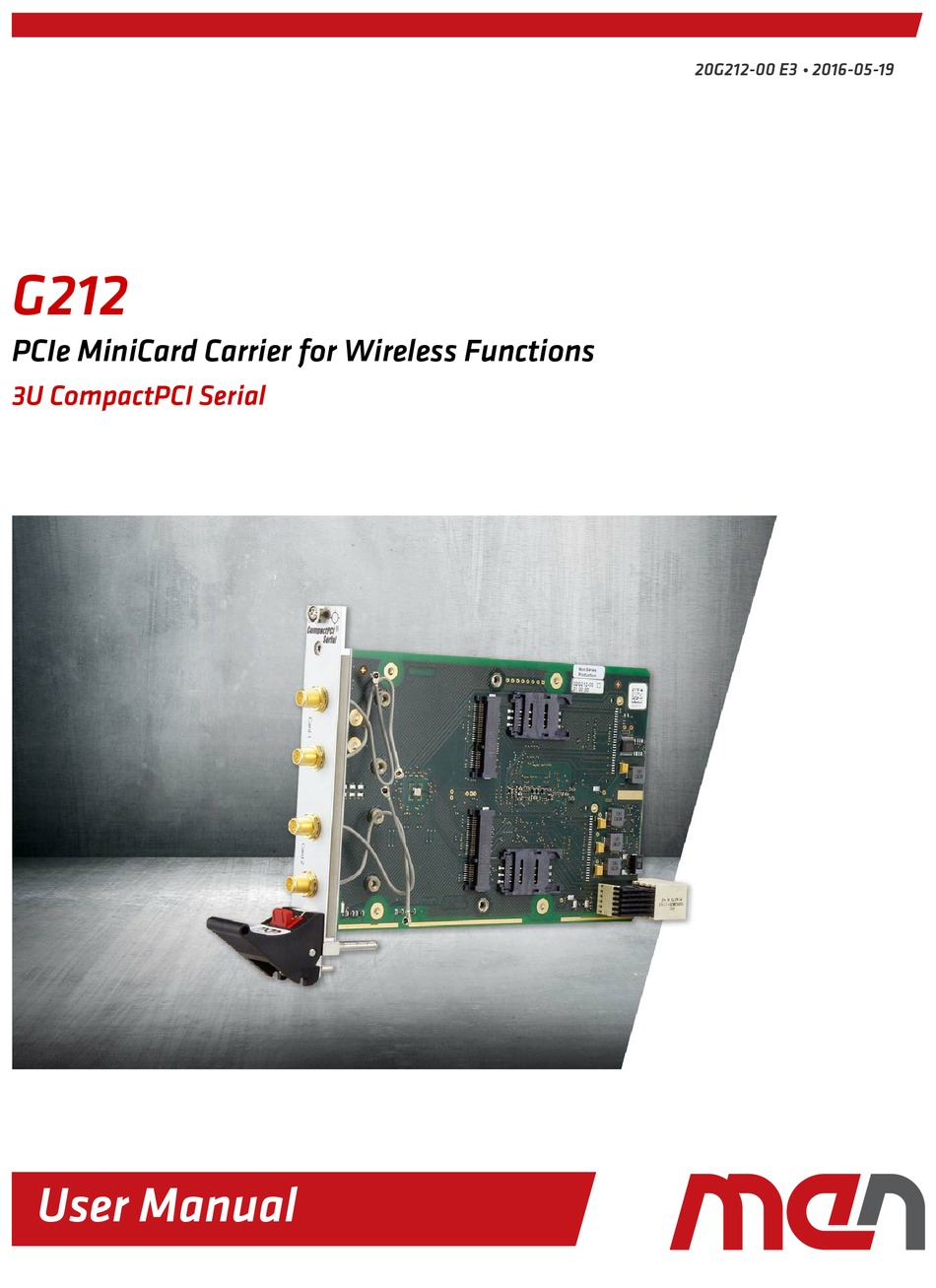

  • Page 1 20G212-00 E3 2016-05-19  G212 PCIe MiniCard Carrier for Wireless Functions 3U CompactPCI Serial User Manual...
  • Page 2 PCI Express or USB 2.0. Supports Various Standards for Wireless Communication The standard version of the G212 offers two PCI Express MiniCard slots. It allows the use of all types of cards for high frequency applications like, for example GPS, WLAN, UMTS, GSM, or HSDPA.
  • Page 3 Diagram Diagram SMA antenna PCIe x1 PCIe x1 PCIe MiniCard Slot 1 (J2) SMA antenna SIM Card  Slot (P2) SIM Card SMA antenna Slot (P3) PCIe Mini Card  PCI Express Switch Slot 2 (J3) SMA antenna PCIe x1 SMB + GA IO Expander ExpressCard  PCIe x1 Slot 1 (J4) +12 V ExpressCard  PCIe x1 Slot 2 (J5) USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB Hub USB 2.0 USB 2.0 USB 2.0 USB 2.0 F Front Rear B Onboard Options 20G212-00 E3...
  • Page 4 One ExpressCard/54 module  SIM card holder  USB and PCI Express interface  Please note that MEN does not offer SIM cards or mobile telephony contracts!  See the MEN website for configuration options. Front Connections Four Reverse SMA antenna connectors ...
  • Page 5 Conforming to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4  (burst) Software Support PCIe MiniCard and ExpressCard drivers as supported  See the MEN website for more information on supported operating system versions and drivers. 20G212-00 E3 2016-05-19 Page 5 ...
  • Page 6 Only store the product in its original ESD-protected packaging. Retain  the original packaging in case you need to return the product to MEN for repair. 20G212-00 E3 2016-05-19 Page 6 ...
  • Page 7 This user manual is intended only for system developers and integrators, it is not intended for end users. It describes the design, functions and connection of the product. The manual does not include detailed information on individual components (data sheets etc.). G212 product page with up-to-date information and downloads: www.men.de/products/g212/ History Issue...
  • Page 8 About this Document Conventions Indicates important information or warnings concerning situations which could result in personal injury, or damage or destruction of the component. Indicates important information or warnings concerning the use of voltages that could lead to a hazardous situation which could result in personal injury, or damage or destruction of the component.
  • Page 9 THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR USE. In no event shall MEN be liable for more than the contract price for the products in question. If buyer does not notify MEN in writing within the foregoing warranty period, MEN shall have no liability or obligation to buyer hereunder.
  • Page 10 Legal Information Conformity MEN products are no ready-made products for end users. They are tested according to the standards given in the Technical Data and thus enable you to achieve certification of the product according to the standards applicable in your field of application.
  • Page 11: Table Of Contents

    Contents Contents 1 Getting Started ..........13 Map of the Board .
  • Page 12 Figures Figure 1. Map of the board – front panel ........13 Figure 2.
  • Page 13: Getting Started

    Getting Started This chapter provides an overview of the board and some hints for first installation in a system. Map of the Board Figure 1. Map of the board – front panel ® G212 20G212-00 E3 2016-05-19 Page 13 ...
  • Page 14: Configuring The Hardware

    The following chapters provide an overview on configuration possibilities. Integrating the Board into a System Use the following "check list" when installing the G212 in a CompactPCI Serial system for the first time. » Power-down the system.
  • Page 15: Installing Driver Software

    Getting Started Installing Driver Software For a detailed description on how to install driver software, please refer to the respective documentation of the software package to be installed. See the MEN website for all available software: www.men.de/products/g212/#downl 20G212-00 E3 2016-05-19 Page 15 ...
  • Page 16: Functional Description

    PCI Express MiniCard cards also use smaller connectors than standard ExpressCards. The G212 supports the PCI Express MiniCard Standard but only full-size cards can be used. A single PCI Express lane (x1) and a USB connection are supported on the board.
  • Page 17: Pci Express Minicard Connector Pin Assignment

    Functional Description 2.2.1 PCI Express MiniCard Connector Pin Assignment The board is equipped with two 52-pin standard PCI Express MiniCard connectors. The following standard signals are supported (signal directions according to PCI Express MiniCard Standard): Table 1. Pin assignment of 52-pin PCI Express MiniCard connector +3.3Vaux reserved reserved...
  • Page 18: Table 2. Signal Mnemonics Of 52-Pin Pci Express Minicard Connector

    Functional Description Table 2. Signal mnemonics of 52-pin PCI Express MiniCard connector Signal Direction Function Power Ground +3.3Vaux 3.3V source 1.5V 1.5V source SIM card UIM_PWR SIM card power UIM_DATA in/out SIM card data UIM_CLK SIM card clock UIM_RST SIM card reset UIM_VPP not connected PCI Express REFCLK-/REFCLK+...
  • Page 19: Installing A Pci Express Minicard

    Lower the top end of the card until it sits firmly in the connector, and the mounting holes are aligned with the screw holes on the G212. » Secure the PCI Express MiniCard tightly to the G212 using the two screws supplied. » Connect the antennae to the PCI Express MiniCard.
  • Page 20: Expresscard Interface (Optional)

    Functional Description ExpressCard Interface (Optional) The G212 supports both standard formats of ExpressCard modules, according to the ExpressCard standard, and both use the same connector interface: ExpressCard/34 module which is 34 mm wide, and  ExpressCard/54 module which is 54 mm wide.
  • Page 21 Functional Description Signal Direction Function PETn0 PCI Express transmit signals PETp0 Power See the ExpressCard Specification for more information. 20G212-00 E3 2016-05-19 Page 21 ...
  • Page 22: Sim Card Holder

    To get access to a mobile phone network you need a SIM card (subscriber identity module) and a contract with a mobile service provider. Please note that MEN does not provide mobile services or SIM cards! Figure 4. Position of SIM card holder SIM Card Holders...
  • Page 23: Smbus Functionality

    Functional Description SMBus Functionality Power supply to the PCI Express MiniCard and ExpressCard slots can be controlled using the onboard IO-Expander. Figure 2, Map of the board – top view on page 14 for the position of the IO- Expander. In order to be able to reset the board during operation, the power supply of the PCI Express MiniCards or ExpressCards can be switched off using the SMBus, which then allows the board to be reset without having to shut down the system.
  • Page 24: Compactpci Serial Interface

    Functional Description CompactPCI Serial Interface The G212 uses one PCI Express x1 link and one USB interface at the backplane according to the CompactPCI Serial specification (PICMG CPCI-S.0, proposed standard under development). Connector type of P1: 72-pin Airmax VS 4 pair, right angle header, 6 IMLA with end walls ...
  • Page 25: Appendix

    Product Identification MEN user documentation may describe several different models and/or design revisions of the G212. You can find information on the article number, the design revision and the serial number on the label affixed to the board. Article number: Indicates the product family and model. This is also MEN’s order- ...
