Summary of Contents for Gimenez Ganga 008894

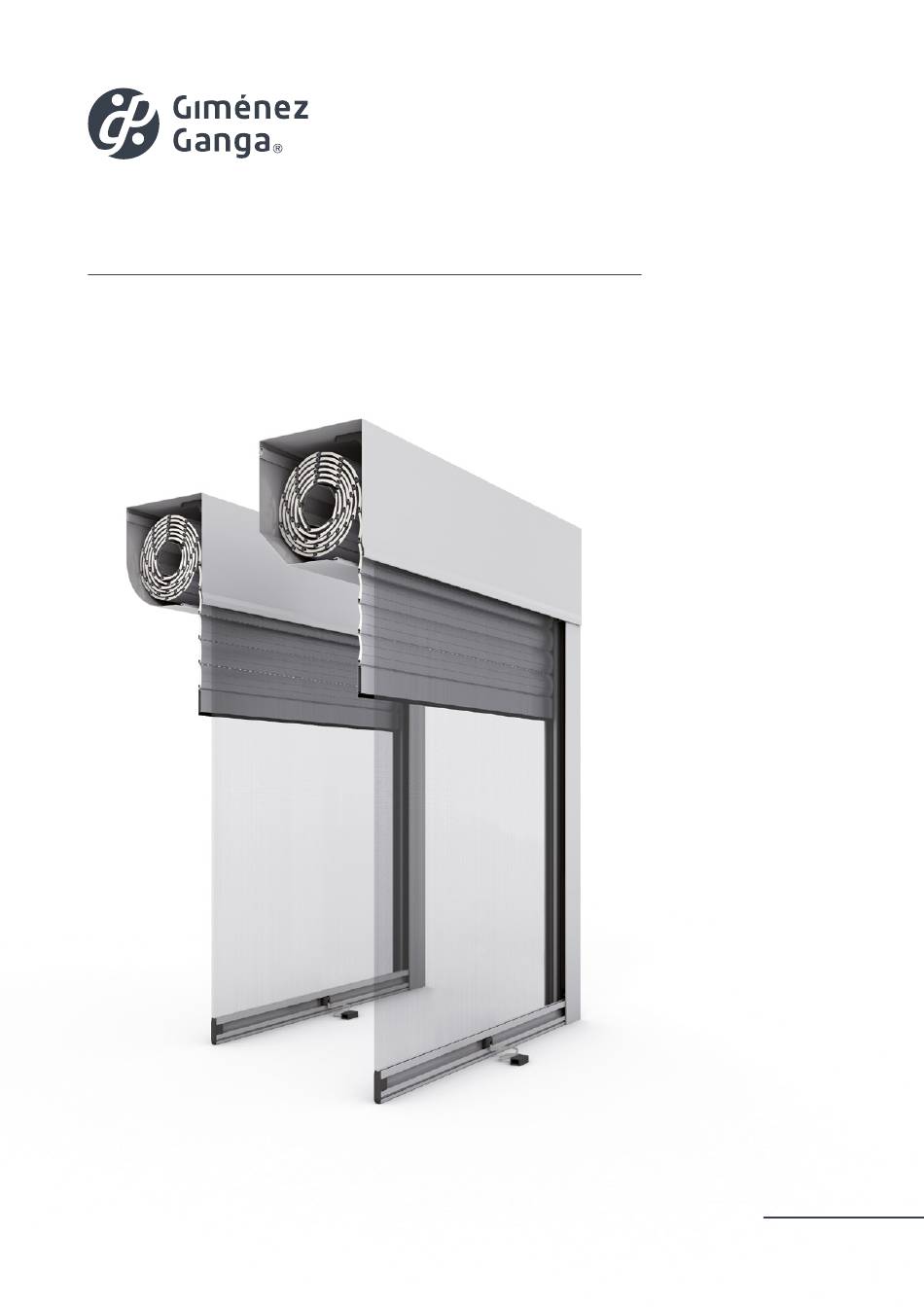

- Page 1 RV BOX MOSQUITO SCREEN ASSEMBLY MANUAL...
- Page 2 IMPORTANT It is important for the safety of persons and the integrity of the product to read these instructions carefully before installing, operating, repairing or using the mosquito screen for the first time. This document is an integral part of the titled mos- Both documents constitute a complete instruction manual and quito screen model and is intended for the installer.
- Page 3 INDEX COMPONENTS 1.1 RV BOX MOSQUITO SCREEN CUTTING 1.2 PROFILES 1.3 TECHNICAL CHARACTERISTICS ASSEMBLY INSTRUCTIONS DISASSEMBLY AND DISPOSAL OF THE PACKAGING AND COMPONENTS OF THE PRODUCT AT THE END OF ITS USEFUL LIFE 3.1 DISASSEMBLY MOSQUITO SCREEN 3.2 PACKAGING DISPOSAL 3.3 DISASSEMBLY AND DISPOSAL OF THE PRODUCT...
- Page 4 COMPONENTS 1.1 RV BOX MOSQUITO SCREEN CUTTING REF. DESCRIPTION REF. DESCRIPTION Box Top profile RV-165 GG RV Mosquito screen Double guide 027227 008501 Curved Box Opening profile RV-165 GG MRV Handle 027267 008124 Fixed axle 25 mm (Mesh) MRV 008115 008678 Brush 5x14 mm - Terminal with Mosquito screen Kit Mosquito screen RV Mesh 35 with Decelerator...
-
Page 5: Technical Characteristics
ASSEMBLY MANUAL RV BOX MOSQUITO SCREEN 1.2 PROFILES 8.80 RV Mosquito Screen Double Guide with windscreen 008899 Axle with fabric 180 with end slat and brush. 008898 brush and Film. 1.3 TECHNICAL CHARACTERISTICS The set of guide entries located in the mouths of the guides, houses the terminal in the open position of the mosquito screen During use, the ends of the terminal run along the inside of the guides, the side caps being hidden and guaranteeing great... - Page 6 ASSEMBLY INSTRUCTIONS STEP 1 WIDTH Carry out the cutting of the box profiles: Mosquito screen axle cutting= WIDTH -77 Box cutting= WIDTH -10 mm Mosquito screen axle cutting= WIDTH -77mm Box cutting= WIDTH -10 STEP 2 Assemble the subset of end caps with the MRV Double Guide Entry Set.
- Page 7 ASSEMBLY MANUAL RV BOX MOSQUITO SCREEN STEP 5 Insert the handle in the central area of the terminal and fix it by means of a 1.5mm Allen bolt. STEP 6 Then install the MRV Terminal Cap Kit. STEP 7 Then insert the end of the fixed axle and the end of the retractable axle into the inside of the 25mm axle as per the following images.
- Page 8 (Number of turns recommended depending on height). From 1,200 mm DESCRIPTION Up to 1,200 mm REF. to 1,800 mm RV Mosquito screen Mesh KIT 50 with 008894 decelerator RV Mosquito screen Mesh KIT 35 with 008896 decelerator RV Mosquito screen Mesh KIT 50 without 008895...
- Page 9 ASSEMBLY MANUAL RV BOX MOSQUITO SCREEN STEP 10 To prevent the mosquito screen axle from detaching during transport and use, remove the Locking tool from the end of the fixed axle and insert it into the end of the retractable axle. At this point, we extract the MRV mosquito screen termi- nal through the guide entries, leaving the box ready for installation in its final location.
- Page 10 DISASSEMBLY AND DISPOSAL OF THE PACKAGING AND COMPONENTS OF THE PRODUCT AT THE END OF ITS USEFUL LIFE 3.1 DISASSEMBLY MOSQUITO SCREEN STEP 1 With the screen partially unfolded, tilt the terminal until it loses enough length to remove it from the guides and insert it into the box.
- Page 11 ASSEMBLY MANUAL RV BOX MOSQUITO SCREEN 1º STEP 3 Maintaining torque through the locking tool, press to retract the axle and remove the mosquito screen. 2º STEP 4 Carefully remove the spring load. Then remove the spring and the decelerator from the axle. Then remove the end caps, loosen the handle screw and proceed to disassemble the end of the fabric.
- Page 12 STEP 5 Remove the cloth from the shutter. Then remove the box from the guides and uninstall the box cover. STEP 6 Remove the inner brake screw from the guide.
-
Page 13: Packaging Disposal
ASSEMBLY MANUAL RV BOX MOSQUITO SCREEN 3.2 PACKAGING DISPOSAL Paper and cardboard: In waste management, the recycling of paper and IMPORTANT cardboard plays an important role, because up to 70% The packaging must be recycled by the can be reclaimed. The disposal of paper and cardboard authorised professional who installed the can be done through various channels such as collec- product. -
Page 14: Stainless Steel
IMPORTANTE Our products are mainly made of recyclable materials. It -Always act with care. Please only use is advisable to be informed about the recycling or disposal suitable tools that are in perfect condition. systems provided for in the current regulations in your country for this product category. - Page 15 ASSEMBLY MANUAL RV BOX MOSQUITO SCREEN ALUMINIUM Aluminium recycling guarantees an endless variety of environmental benefits. The use of recycle aluminium saves 95% of the energy used in its production in its raw state, and it can be recycled as many times as desired and is fully recoverable.
- Page 16 gimenezganga.com...
