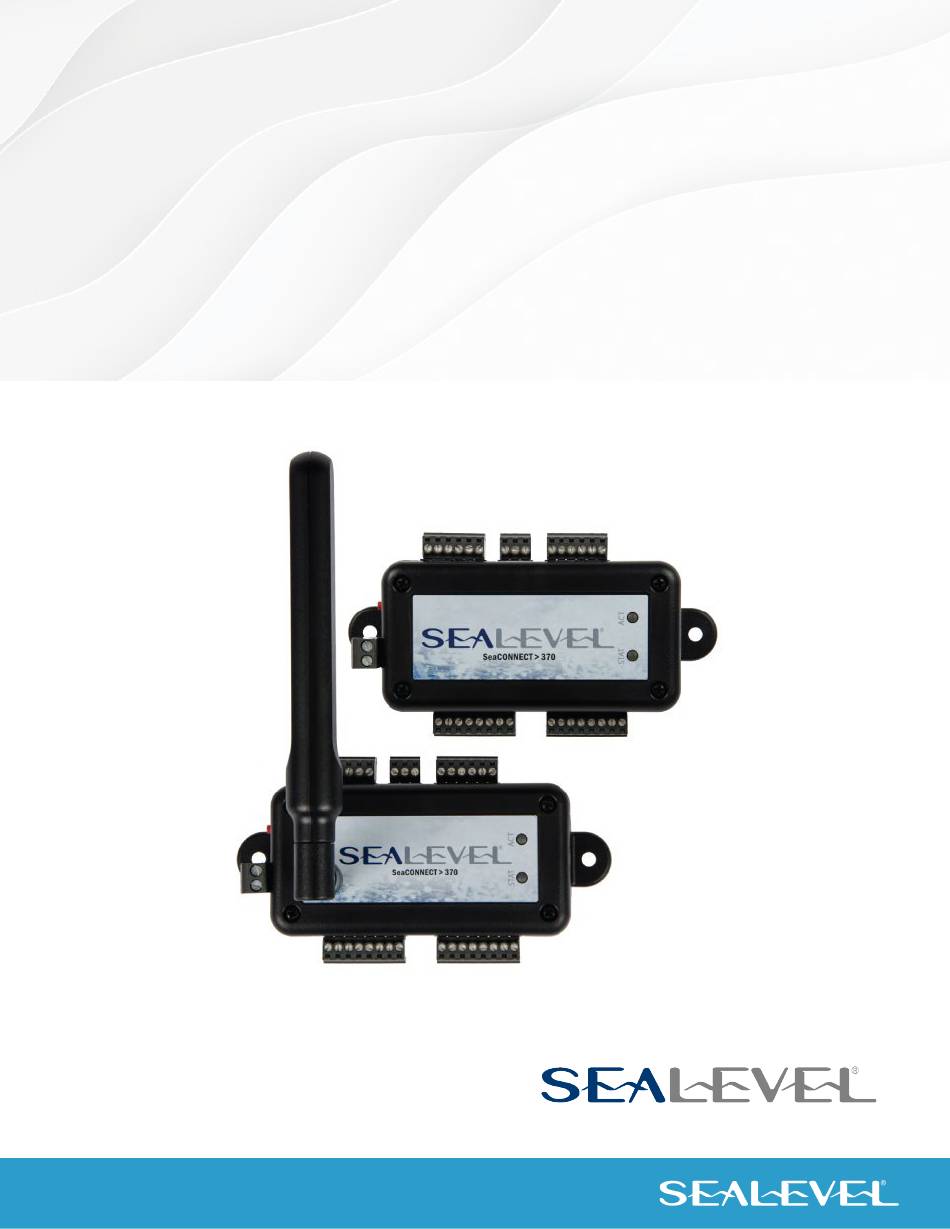

SeaConnect 370

User Manual | 370W and 370C

SeaConnect 370 Manual | SL9269 11/2022

Table of Contents

Need help?

Do you have a question about the SeaConnect 370 and is the answer not in the manual?

Questions and answers

Summary of Contents for SeaLevel SeaConnect 370

Page 2: Table Of Contents
Contents CONTENTS ................................2 BEFORE YOU GET STARTED ..........................3 INTRODUCTION ..............................5 SEACONNECT 370 HARDWARE DESCRIPTION ....................9 HARDWARE CONFIGURATION .......................... 16 WIRING OPTIONS .............................. 31 MOD+ CONNECT IOS APP ..........................38 SEAMAX APPLICATION SUITE ......................... 41 ACCESSORIES ..............................50 APPENDIX A –...
Page 3: Before You Get Started
 Includes optional 1-month trial SeaCloud subscription plan with 25MB cellular data (Must order Item# SC00C)  100-240 VAC to 5 VDC @ 4 A desktop power supply with US power cord (TR151-US)  10 Insulated Jumper Wires (CA603) © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 4  Spider Cable with 4 Cable Groups and 14 Color Insulated Wires (CA595)  USB Power Cable with Type A Connector to Tinned Leads (CA606) All items can be purchased from our website (www.sealevel.com) by calling our sales team at (864) 843-4343.
Page 5: Introduction
Introduction The SeaConnect 370 has a small form-factor I/O board featuring a TI CC3200 Cortex ARM-M4 MCU with integrated Wi-Fi capability. The SeaConnect 370 can also be configured with a cellular modem. It includes 2 Form C relays, 4 discrete inputs, and 2 12-bit A/D converters, each configurable independently for either 0–10 VDC voltage measurement or 0–24 mA current measurement mode.
Page 6 Field-Removable Terminal Block Connectors • 5 VDC Power Input • −20°C to 70°C (-4°F to 158°F) Operating Temperature • Compact Size – 4.00"(L) x 2.03"(W) x 1.13"(H) (excluding mounting flanges and antenna connector) © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 7 The SeaConnect 370 is designed with features and connectivity compatible with the Sealevel eI/O and SeaI/O modules. Tools available for either will work with the SeaConnect 370. In addition to being able to be used on a LAN, the SeaConnect 370 supports WAN connectivity to the cloud service DWEET.IO and the Sealevel SeaCloud.
Page 8 Do you have an IoT idea? Do you need an application-specific device and cloud solution? Sealevel can provide a number of services from design, application-specific cloud instance, cellular data plans, and even billing services for a turn-key solution. Sealevel would love to work with you to realize your IoT vision. © Sealevel Systems, Inc.
Page 9: Seaconnect 370 Hardware Description
Fixed sampling rate of 16 μs per channel (Equivalent to 62.5 k Samples/sec per channel) Sampling Rate (ADC) Fixed round-robin sampling across all channels Input Range 0–10VDC or 0–24mA (software-configurable) Input Impedance 900k 1-Wire Maximum simultaneous devices © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 10 5 VDC @ 3A max via terminal block Environmental Operating Temperature -20°C to +70°C (-4°F to 160°F) Humidity 10% to 90% RH (non-condensing) Mechanical Dimensions 5.10” W X 2.03” H X 1.13” D (enclosure) © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 11 Dimensional Drawing Figure 1: 370W Enclosure Dimensions (inches) © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 13 Outdoors with no obstructions or interference 2.4 GHz IEEE 802.11b/g/n WLAN WLAN Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, HTTPS, TCP/IP Stack, TLS 1.2 Internal Antenna Outdoor line of sight. Actual range may vary. © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 14 The 1-Wire bus system uses a single primary controller to control one or more secondary devices. The SeaConnect 370 is the primary controller for up to 10 secondary devices. When there is only one secondary device on the bus, the system is referred to as a “single-drop” system; the system is called “multidrop” if there are multiple secondary devices on the bus.
Page 15 DS18S20, which gives 9 bits of precision. The DS18B20 measures temperatures from −55°C to +125°C with ±0.0625°C accuracy from −10°C to +85°C. Both devices have a conversion time of 750ms. © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 16: Hardware Configuration
SSID, to which up to one client can connect. This mode is typically used for first-time setup and configuration. The SeaConnect 370 will not have access to any other Wi-Fi networks while in this mode. Wi-Fi Infrastructure Mode In this mode, the device functions as a network client.
Page 17 Sealevel SeaCloud service. Setup The SeaConnect 370 runs an on-board HTTP server at port 80. Connect to the same network as the 370 and point your web browser to the device's web page. Depending on the platform you are using, the address is in one of the following formats: The IPv4 address, e.g., http://192.168.1.1/ (all platforms)
Page 18 Power the SeaConnect 370 using the provided 5V DC power supply. The SeaConnect 370 will boot up in AP mode when shipped from the factory and/or configured to default settings, or when there are no wireless profiles defined. The Status LED will blink twice briefly to indicate it is booted in AP mode.
Page 19 The I/O page will load (Figure 5, Figure 6). Figure 5: I/O Page (desktop view) Figure 6: I/O page (Android phone view) © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 20 Figure 8: Profiles list showing the new profile and alert Skip to the next step if your infrastructure network is configured for DHCP. Otherwise, visit the Network page to configure your Infrastructure Mode IP settings (Figure 9). © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 21 The Status LED will blink once to indicate it is in Infrastructure Mode. After a pause, the Status LED will then begin to blink rapidly while it waits to connect to a Wi-Fi network. If the SeaConnect 370 has connected to SeaCloud, the Status LED will turn on and remain on.
Page 22 100–65535 ms). The Go button initiates the special function for the corresponding relay. 1-Wire Connection This page shows all connected 1-Wire devices (Figure 11). The SeaConnect 370 currently supports 1-Wire temperature sensors that use the Maxim Integrated DS18B20 or DS18S20 chip.
Page 23 1-Wire devices are represented in SeaCloud as sub-device or Node, not as part of the SeaConnect 370. In the case of 1-Wire devices, the SeaConnect 370 acts as a gateway for the device to SeaCloud. To view your 11-Wire devices in SeaCloud you must use the “Search For New Units”...
Page 24 The system date and time may not be accurate if the device does not have a connection to the Internet (e.g., while in Access Point mode). The firmware attempts to synchronize its internal date and time on boot-up and once per day. © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 25 Changes to these settings take effect upon next boot after clicking Apply. Device This section allows you to change the device name. This name is used as the device’s network name. © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 26 If SeaMAX Ethernet API is disabled, the SeaMAX Ethernet API (including the SeaMAX • Ethernet Configuration tool) will not be able to change Ethernet settings on the device. © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 27 Access Point Configuration This section allows you to configure the Wi-Fi settings in Access Point mode. Choose the channel, the SSID, the security type, and the security password (if applicable). © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 28 Click Save to add it to the list (Figure 17). Figure 17: Add Profile dialog After adding or removing a profile, you must power cycle the SeaConnect 370 for your changes to take effect. © Sealevel Systems, Inc.
Page 29 Events The SeaConnect 370 supports up to ten events which perform an action when a trigger condition is met. Click the circular Add button to add a new event. See Figure 18 for an example of the Add Event dialog.
Page 30 Figure 19: Events page The SeaConnect 370 does not have any events programmed by default. In order to send the value of an input to SeaCloud, you must create an event to send that input. Event Deletion To delete events, select the checkbox to the left of the desired event(s) and click the “Delete Selected Event(s)”...
Page 31: Wiring Options
Wiring Options Relay Outputs The SeaConnect 370 has a flexible I/O set allowing it to interface with a variety of devices. This section details the connector pinout and example wiring for several device types. The circuitry shown within the dotted box in the diagrams is internal to the SeaConnect 370. The circuitry beneath the terminal block illustrates the example connection.
Page 32 Figure 21: Voltage sources connected to relays © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 33 The I/O points can be wired to support various input schemes including Dry Contact closures and Open- Collector outputs. Various wiring schemes are illustrated below. Figure 22: Dry Contact Closure © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 34 Figure 23: Open-Collector (Sink) with External Pull-Up Figure 24: Open-Collector (Source) with External Pull-Down © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 35 Figure 25: Open-Collector (Sink) with Internal Pull-Up Figure 26: Open-Collector (Source) with Internal Pull-Down © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 36 Analog Inputs A/D Wiring Connections The SeaConnect 370 has two 12-bit differential A/D inputs with polarity. The software-selectable measurement ranges are 0-10V and 0-24 mA. For proper operation when current loop mode is selected, a precision 200Ω resistor is placed in the circuit between positive and negative inputs via a software controlled switch.
Page 37 Most 1-Wire devices operate on parasite power provided over the data line, but some 1-Wire devices require dedicated power. The SeaConnect 370 supports devices with either configuration. The SeaConnect 370 can support up to 10 1-Wire devices at a time. The pinout is as follows: Table 5: 1-Wire Connector Pinout Purpose 3.3V Power...
Page 38: Mod+ Connect Ios App
Figure 27: MOD+ Connect – Settings Tab To communicate with a SeaConnect 370 module, select the device in the list and the IP will populate in the “IP Address” field and then click the “Ping” button. You can also enter the IP of the module or select a previously entered IP and then click the “Ping”...
Page 39 A/D converter as a hexadecimal value without converting the values to engineering units (i.e., Milliamps or Volts) In the example below (Figure 28), a SeaConnect 370 module with 2 Form C Relays, 4 Digital Inputs, and 2 Analog inputs is shown.
Page 40 The “About” tab displays the current version of the app, a link to our website for support and documentation, and a list of the supported Sealevel I/O modules for the app (Figure 29). Figure 29: MOD+ Connect - About Tab ©...
Page 41: Seamax Application Suite
API documentation and code samples are automatically installed with the SeaMAX Suite and can be found in Windows by clicking Start  All Programs  Sealevel SeaMAX  Documentation. For convenience, Sealevel offers a PDF version of the SeaMAX manual on our website.
Page 42 SeaMAX Software Installation 1. To obtain the most current software driver package from Sealevel’s website, download from here: • SeaMAX for Windows 2. Click on the link to download the current version. 3. Once downloaded, double click on the executable to launch the InstallShield software and driver installation.
Page 43 TCP. Host PC Configuration Tab When you run the MaxSSD utility (Start  All Programs  Sealevel Systems  SeaMAX  MaxSSD Configuration Utility) it will default to the “Host PC Configuration” tab (Figure 30). This tab allows the user to choose the initial communication settings for the connected I/O device.
Page 44 Configuration section, or proceed to the Troubleshooting section at the end of this manual Module Configuration Tab Once the host computer is configured correctly, the “Module Configuration” tab becomes available (Figure 32.) Figure 32: MaxSSD Module Configuration Tab © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 45 After Get Module Settings is clicked, the “Module Description” frame will display the model type, description, interface, and I/O type. In the example shown, the module is a SeaConnect 370 module with a Wireless (Modbus TCP) interface. The “Set Settings” and “Change Slave ID” buttons are unsupported for the SeaConnect 370 and are therefore disabled.
Page 46 I/O module is read. The corresponding status LED graphic indicates the state of the coil. In the example below, a SeaConnect 370 module with 2 Form C Relays and 4 Digital Inputs is shown. A/D Inputs Tab The “A/D Inputs”...
Page 47 The “Device Configuration” selection drop-box is not supported for the SeaConnect 370 and is therefore disabled. “Show Hexadecimal Values” checkbox – Displays the values returned by the A/D converter as a hexadecimal value without converting the values to engineering units (i.e., Milliamps or Volts) Converting A/D Values To properly use the values returned from the SeaConnect 370 module’s A/D channels, the application...
Page 48 Problem: The SeaConnect is discoverable in Ethernet Config, but the Wireless Configuration button is disabled. The wireless configuration method used in Ethernet Config has been obsoleted in the SeaConnect 370. To configure the wireless settings, use the web interface instead.
Page 49 Not unlike other network connected devices, if your SeaConnect 370 was configured to operate in Infrastructure Mode, with a DHCP assigned IP address, it can be difficult to locate on your network. You will need to know either the MAC address of the device or the device’s ID, e.g., SL370-210027. The simplest...
Page 50: Accessories
TR 151 - AC to DC 5V Power Supply AC/DC USB power supply that accepts 220VAC input and outputs 5VDC via a 2-pin 5mm pitch terminal block connector at up to 4.0 A (20 W) © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 51: Appendix A - Handling Instructions
6. Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. 7. Use field service tools such as cutters, screwdrivers, and vacuum cleaners that are ESD safe. © Sealevel Systems, Inc. SeaConnect 370 Manual | SL9269 11/2022...
Page 52: Appendix B - How To Get Assistance
When calling for technical assistance, please have your user manual and current adapter settings. If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp.
Page 53: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
