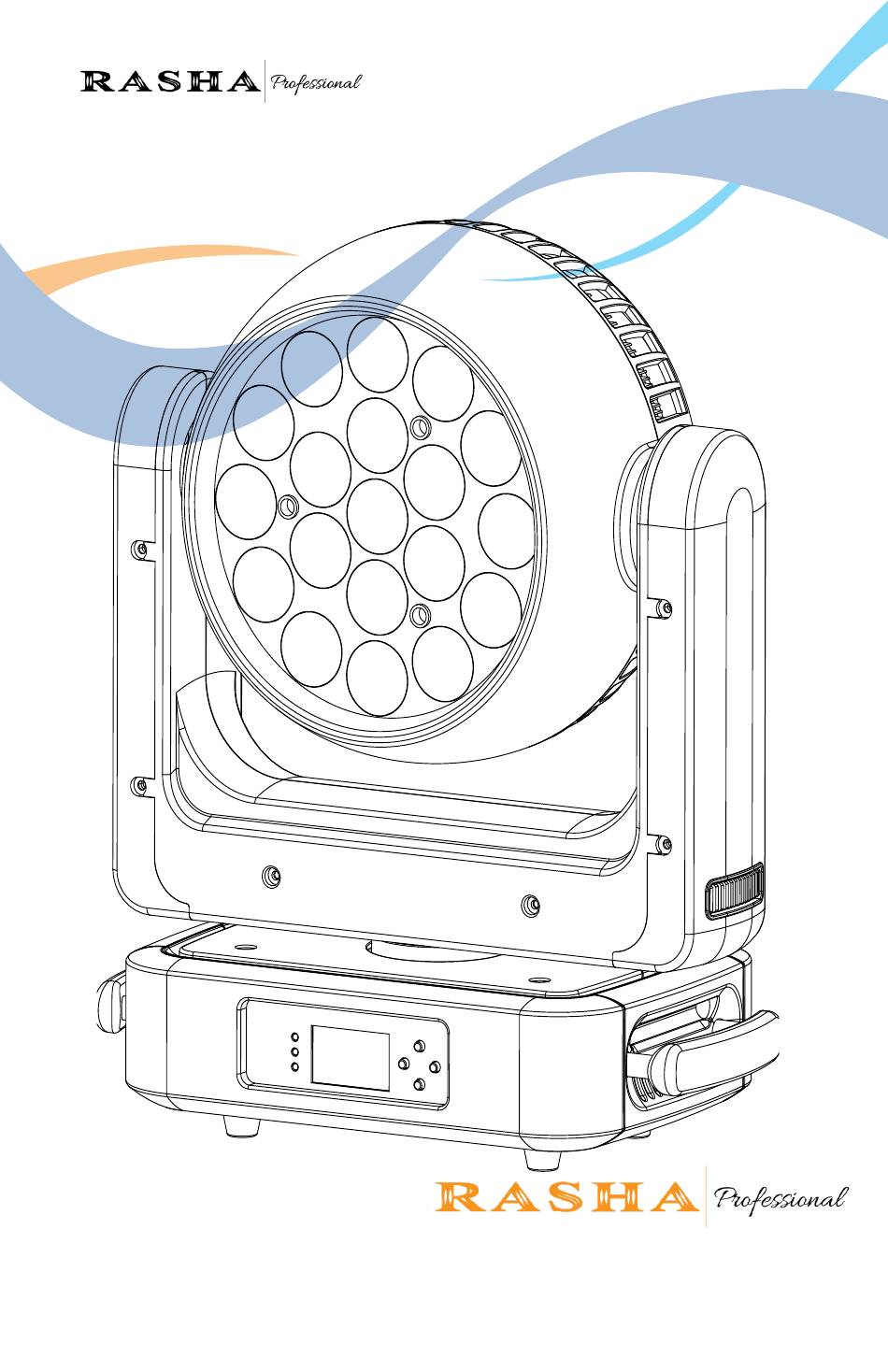

- Page 1 QUICK USER MANUAL RASHA PROFESSIONAL A/S Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 2 , User Manual Rev. 1 covers the description, safety precautions, installation, programming, operation, Edition Notes and maintenance of the K2. Rasha released this edition of User Manual in July 2022. Rasha registered trademark RASHA ® PROFESSIONAL A/S. (D/b/a RASHA or Rasha). The ®...
- Page 3 Table of Contents Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 4 A set of two mutually exclusive menu options in a menu A unique value to be entered or selected in a menu Symbols Meaning Display DMX Single lost or disconnected Symbols Flashing Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
-
Page 5: Personal Safety
In case of a serious operating problem, stop using this product immediately! The term “DMX” used throughout this manual refers to the DMX512 digital data transmission protocol Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com... -
Page 6: Product Overview
Description K2 features outstanding 6 is to 1 ratio optical zoom in a range of 10 to 60 degree, controllable concentric circles to adjust the luminaries output effect, combination of high definition colors & power with high output. - Page 7 DIMENSIONS Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 8 Edison plug, use the table below to wire the new plug. Connection Wire (U.S.) Wire (Europe) Screw Color AC Live Black Brown Yellow or Brass AC Neutral White Blue Silver AC Ground Green/Yellow Green/Yellow Green Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 9 Use UP or DOWN button to select: Linear, Square Law, Inverse Squ or S-Curve • Once selected, press ENTER button to store • Press MENU button to access the previous menu Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
-
Page 10: Programming Level
Select and turn off Tilt inverse Selects and sets Pan & Tilt on home position BK P/T Moving Selects and turn of Pan & Tilt on home position Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com... - Page 11 Select and reset pan and tilt Zoom Reset Select and reset Zoom Fixtures Version (Display Display V… control board) Version Fixtures Version (Led and Led & Zoom ……….. Zoom control board) Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
-
Page 12: Control Panel
PowerCon connection from main power supply 7. Mains OUT PowerCon loop connection for main power supply to the next unit. 8. Fuse (T10A) Protects the unit from over voltage or short circuit. Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com... -
Page 13: Dmx Channels
10-12 White 5600 K 13-15 White 8000 K Blue (Blue=full, Red+Green+White=0) 17-55 Red=0, Green->up,Blue =full, White=0 Light Blue (Red=0, Green=full, Blue =full, White=0) 57-95 Red=0, Green=full, Blue->down, White=0 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com... - Page 14 FADE_OPEN 182 - 189 LED_EFFECT_OPEN 190 - 231 LED_EFFECT_PULSE_OPEN_ FADE_CLOSE 232 - 239 LED_EFFECT_OPEN 240 - 247 LED_EFFECT_RANDOM_ FLASH 248 - 255 LED_EFFECT_OPEN 10CH Dimmer 000 - 255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 15 2700K-8000K 12CH Virtual Color No function (0=default) Wheel White 2700 K White 3200 K White 4200 K 10-12 White 5600 K 13-15 White 8000 K Blue (Blue=full, Red+Green+White=0) Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 16 LED_EFFECT_PULSE_CLOSE_FADE_ OPEN 182 - 189 LED_EFFECT_OPEN 190 - 231 LED_EFFECT_PULSE_OPEN_FADE_ CLOSE 232 - 239 LED_EFFECT_OPEN 240 - 247 LED_EFFECT_RANDOM_FLASH 248 - 255 LED_EFFECT_OPEN 15CH Dimmer 000 - 255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 17 000 - 255 11CH Blue 000 - 255 12CH Blue Fine 000 - 255 13CH White 000 - 255 14CH White Fine 000 - 255 NULL 15CH 2700K-8000K 1-255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 18 190 - 231 LED_EFFECT_PULSE_OPEN_ FADE_CLOSE 232 - 239 LED_EFFECT_OPEN 240 - 247 LED_EFFECT_RANDOM_FLASH 248 - 255 LED_EFFECT_OPEN 20CH Dimmer 000 - 255 21CH Dimmer Fine 000 - 255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 19 190 - 231 LED_EFFECT_PULSE_OPEN_FADE_ CLOSE 232 - 239 LED_EFFECT_OPEN 240 - 247 LED_EFFECT_RANDOM_FLASH 248 - 255 LED_EFFECT_OPEN 10CH Dimmer 000 - 255 11CH Dimmer Fine 000 - 255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 20 000 - 255 34CH Blue3 000 - 255 35CH Blue Fine 3 000 - 255 36CH White 3 000 - 255 37CH White Fine 3 000 - 255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 21 000 - 255 27CH Blue3 000 - 255 28CH Blue Fine 3 000 - 255 29CH White 3 000 - 255 30CH White Fine 3 000 - 255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 22 36CH Dimmer 000 - 255 37CH Dimmer Fine 000 - 255 38CH Dynamic 000 - 255 No Effect 000 - 255 Effect Mode Dynamic Speed 000 - 255 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 23 • Your Name • Your Address • Your Phone Number • The RMA number • A brief description of the problem(s). Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
- Page 24 +1 (951) 654 3585 Outside the U.S. Contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
