Summary of Contents for Softrend Chatbox

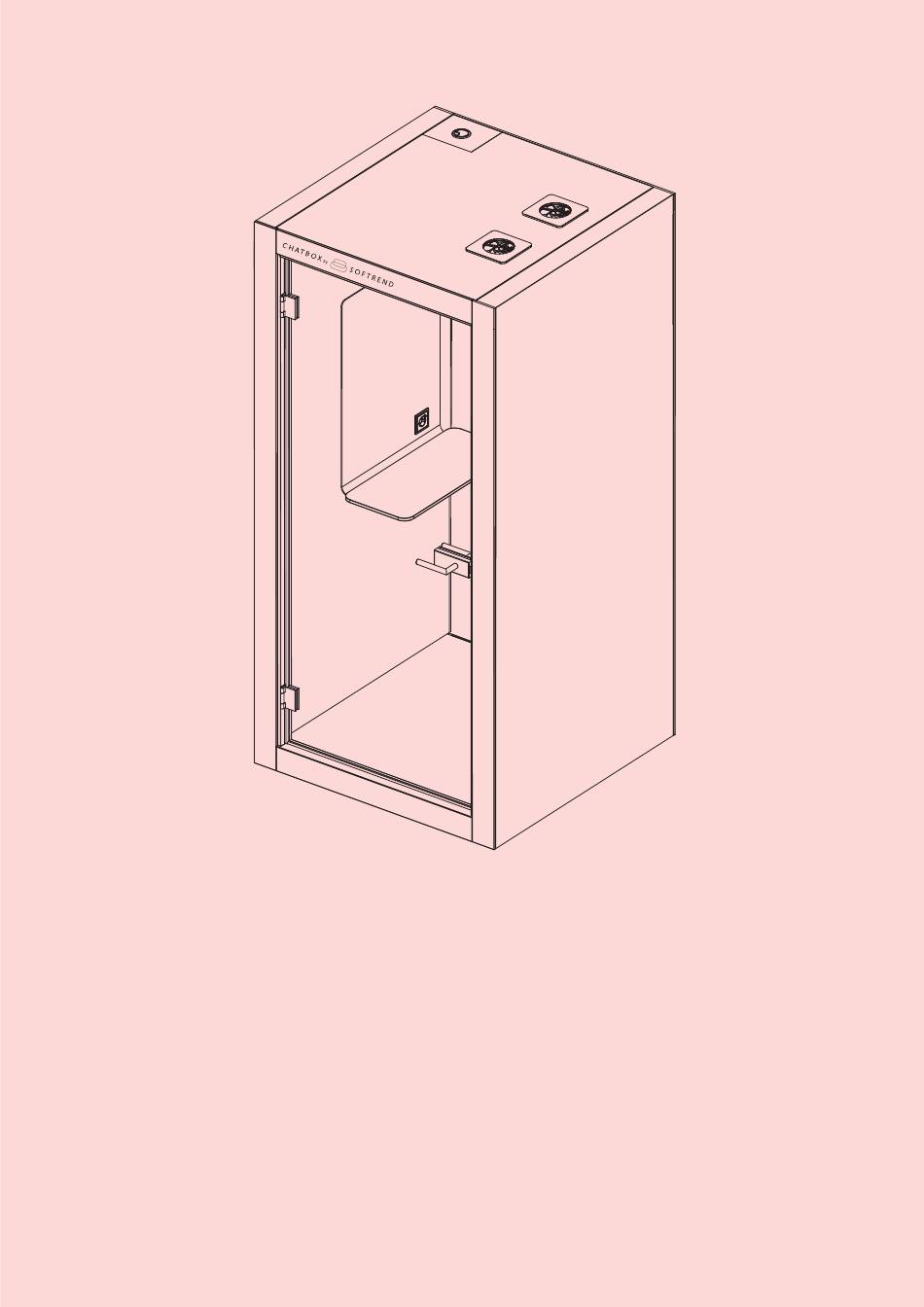

- Page 1 CHATBOX by SOFTREND Assembly Manual softrend.ee...
- Page 2 1096mm 2106mm G2 x2 1140mm 894mm softrend.ee softrend.ee...
- Page 3 Cordless drill with Ratcheting wrench with drill bits set long 5mm Allen key Utility knife 1pcs Stepladder 1pcs Screwdriver 1pcs Cleaning supplies 1set 300L extrastong trash- bags 5pcs Wrench 10mm 1pcs Crowbar 1pcs Plastic Block 1pcs Vacuum cleaner 1pcs softrend.ee...
- Page 4 softrend.ee...
- Page 5 (B and C) into the floor module positioning holes. 3. Secure side modules to the floor module using part “a” and tighten it with 10mm wrench. 10mm Note! Make sure there is no gap between the side and floor module beams. softrend.ee...
- Page 6 (E). 6. Lift ceiling module (D) on top of the side modules (B and C) and secure the ceiling module by lowering it between the side modules until connectors are even to each other. softrend.ee...
- Page 7 7. Remove support beams (E) and (F) after ceiling module is attached. 8. Connect the electrical fittings between side module (B) and table (L), then place table on top of the pre-installed laths on side module. softrend.ee...
- Page 8 Step 1. Lift the glass panel (G) into the top aluminum profile using suction cups, Step 2. Push the bottom of the glass panel (G) towards the front of the cabin, Step 3. Carefully lower the glass panel (G) until it stands on spacers pre-installed into bottom aluminum profile. softrend.ee...
- Page 9 Note! Slide the vertical profile (G1) up between the top profile and side module. 9.5 Click in profile (G2) to the floor module using a rubber mallet and plastic block to secure it. softrend.ee...
- Page 10 10.2 10.2 Position the door frame (H) in the front opening and shift it evenly between side modules. Note! Make sure the front face of the door frame(H) is in line with the front face of the side modules. softrend.ee...
- Page 11 10.4 Drive in screws (c) to attach the door frame (H) 10.4 to the floor module. 10.3 d x4 10.5 10.5 Remove protection tape from decorative door threshold (J). 3,5x35mm 10.6 10.6 Attach threshold with glue covered side to door frame. softrend.ee...
- Page 12 11.3 Use suction cups to lift door-glass panel (K) to the hinges. Note! Check if the door-glass panel (K) is straight. If the glass has a curve to it, determine the inside and outside by using a long straight level tool. softrend.ee...
- Page 13 11.5 Fix the glass by attaching the securing plate back Max 15Nm on the hinges using a 4mm allen key. 11.5 11.6 Reattach the covering plate on top of door frame hinges. 11.6 softrend.ee...
- Page 14 12.1 Use 3mm allen key to open the preassembled handle set “h”. 12.2 Attach the dedicated tool provided with lock assembly “m” to handle “h” 12.2 to remove the lock assembly “m” cover plates. 12.3 Use 4mm allen key to open the rest of the lock assembly “m”. 12.3 softrend.ee...
- Page 15 Make sure the plastic fasteners are covered with provided metal covers on both sides. INSIDE Note! Handle with the spindle must stay inside the cabin for safety measures. In case of emergency you must be able to open the door to exit. softrend.ee...
- Page 16 13.3 Attach covering trim (M) on the front/back side of side module and connect it with pins attached to part (R) and (P). 13.4 Attach covering trim (N) on the front/back side of side module and connect it with pins attached to part (R) and (M). softrend.ee...
- Page 17 14. To relocate the cabin, lift up previously lowered levelling glides and move it to desired location. Repeat step 1. to secure the cabin again. Note! Also adjust the middle glide so it supports the middle of the floor. softrend.ee...
- Page 18 Option 1: To connect the cabin to general power supply with bottom connector use Schematic 1. Option 2: To connect the cabin to general power supply with top connector use Schematic 2. Schematic 1. softrend.ee...
- Page 19 Schematic 2. 17. Make sure LED lights and power socket are functioning properly and your product is ready for use. Thank you for choosing Chatbox by Softrend. softrend.ee...
