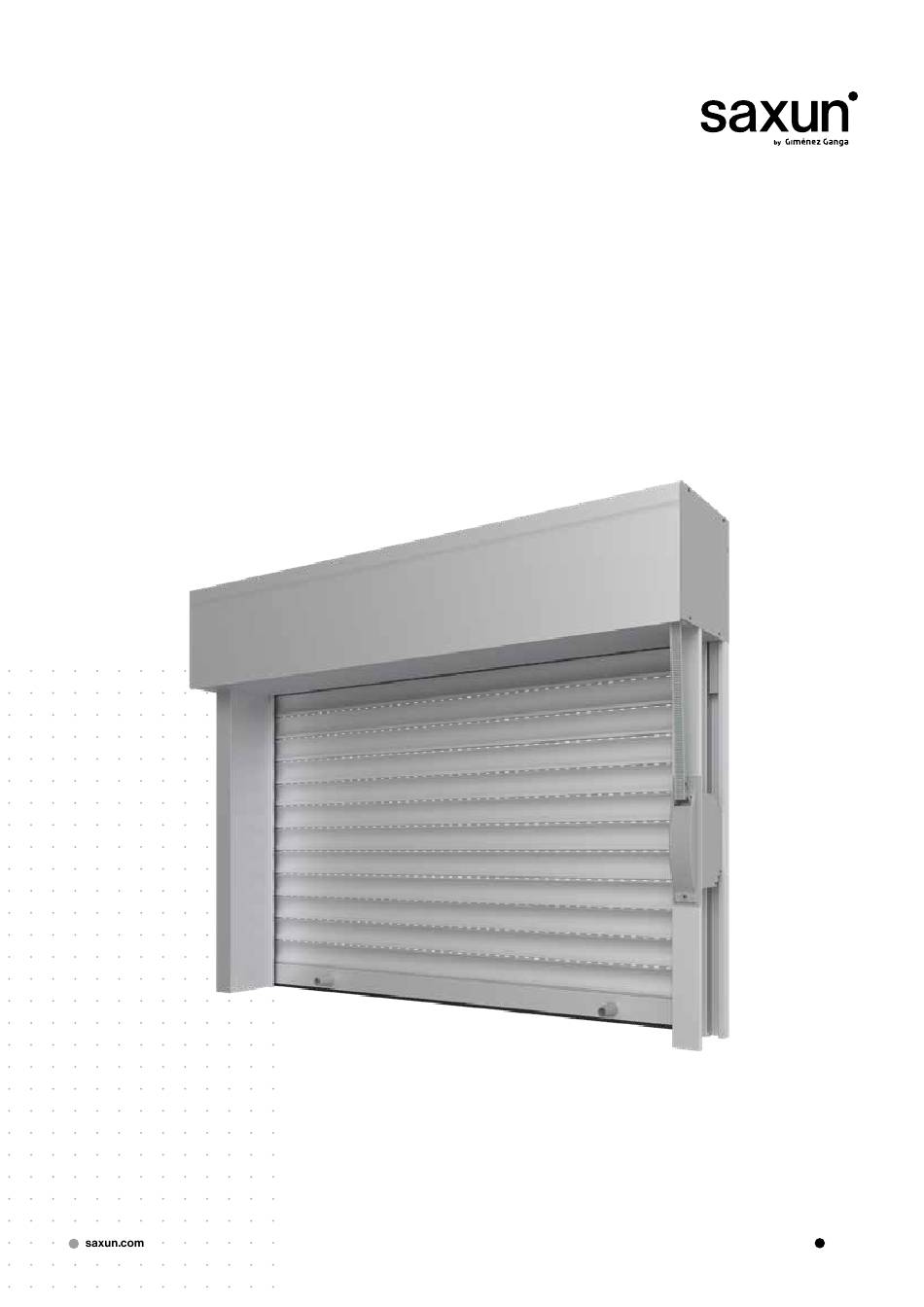

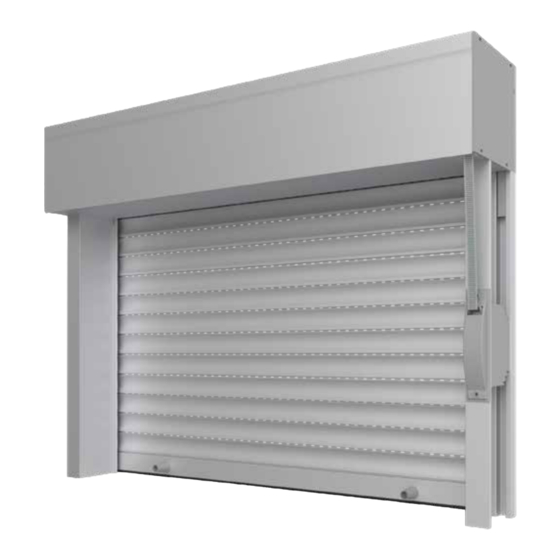

- Page 1 Installation, control, use and maintenance manual Rolling shutters...
-
Page 3: Table Of Contents
Index 1. Exploded view of rolling shutter with its components 2. Information of interest to the user 2.1 Safety warnings 2.2 Fault Table 2.3. Precautions 2.4. Recommendations 2.5. Maintenance 2.6. Information for the dismantling and disposal of the rolling shutter at the end of its cycle 3. - Page 5 ROLLING SHUTTERS INSTALLATION, CONTROL, USE AND MAINTENANCE MANUAL This document and all accompanying documents are an essential part of the rolling shutters and must be made available to the user. This documentation must be kept with the rolling shutter throughout its lifetime for future reference. This manual is an integral part of rolling shutter models: Alugix, Alugan and PS models.
-
Page 6: Exploded View Of Rolling Shutter With Its Components
1. Exploded view of rolling shutter with its components Figure 1 Manual rolling shutter - tape Coiler Guides Carrier tape Disk Braces Stoppers Terminal Slat section Metal shaft Safety plates Axle cup Ball bearing Figure 2 Motorised rolling shutter Guides Motor Braces Stoppers... -
Page 7: Information Of Interest To The User
INSTALLATION, CONTROL, USE AND MAINTENANCE MANUAL ROLLING SHUTTERS 2. Information of interest to the user "Demand at all times that the installer and/or manufacturer be instructed in the correct use, application and operation of the rolling shutter and its drive". The installer is obliged to: •... -
Page 8: Precautions
Motorised Rolling Shutters Breakdowns Causes Solutions Please contact assistance. Slat displacement. Shutter locking in manoeuvre. Check that there are no objects inside the Obstruction in side guides. guides. Falling or dropping of the shutter. Breakage of braces or crimps. Please contact assistance. Insertion of rolling shutter in Lack of stoppers at the end of the rolling Please contact assistance. -
Page 9: Information For The Professional - Installer
ROLLING SHUTTERS INSTALLATION, CONTROL, USE AND MAINTENANCE MANUAL 3. Information for the professional - Installer The installer is obliged to provide a maintenance service and to inform the purchaser of the maintenance operations and frequencies according to the intended use of the product. Repair, installation and initial commissioning of our rolling shutter systems must always be carried out by qualified personnel without ex- ception and in accordance with these instructions. -
Page 10: Manual Lifting Drives
3.3 Installation of guides. In the case of installations of guides superimposed on the façade, the screw must be housed in the internal chamber of the profile, avoid- ing at all times any debris that could cause friction with the slats. The separation distance between the slat and the bottom of the chamber is 5 mm to ensure correct operation. -
Page 11: Intended Use And Usage Environment
INSTALLATION, CONTROL, USE AND MAINTENANCE MANUAL ROLLING SHUTTERS All alterations and modifications made to the product without the manufacturer's authorisation shall exempt the manufacturer from any liability for any damage that may be caused. For shutters controlled by a continuous pressure switch, it should be installed within sight of the shutter movement, but avoiding installa- tion on any moving part and at a height of less than 1.30 m if possible. - Page 12 Polígono Industrial El Castillo C/ Roma, 4 · 03630 • Sax ( Alicante ) • Spain Tel. +34 965 474 050 - 965 474 205 Fax. +34 965 474 563 saxun.com In Sax 1 July 2013 Declaration of conformity (Pursuant to Directive 2006/42/EC relating to machinery) Who, in turn, is the legal person empowered to compile the Technical Record, It states that the motorised extruded aluminium slat rolling shutters of the models: •...
- Page 13 Polígono Industrial El Castillo C/ Roma, 4 - 03630 - Sax ( Alicante ) • Spain +34 965 474 050 - 965 474 205 Tel. Fax. +34 965 474 563 saxun.com In Sax 1 July 2013 Declaration of conformity (Pursuant to Directive 2006/42/EC relating to machinery) Who, in turn, is the legal person empowered to compile the Technical Record, It states that the motorised rolling shutters with profiled aluminium slats of the models •...
- Page 14 Polígono Industrial El Castillo C/ Roma, 4 - 03630 - Sax ( Alicante ) - Spain +34 965 474 050 - 965 474 205 +34 965 474 563 saxun.com In Sax 1 July 2013 Declaration of conformity (Pursuant to Directive 2006/42/EC relating to machinery) Who, in turn, is the legal person empowered to compile the Technical Record, Declares that motorised PVC slat rolling shutters of the models •...
- Page 15 ROLLING SHUTTERS INSTALLATION, CONTROL, USE AND MAINTENANCE MANUAL Services declaration list DdP No. Identification of the product PE/01/2013 Alugan-45 (Aluminium Profiles) PE/02/2013 Alugix-39.5 (Aluminium Profiles) PE/03/2013 Alugix-39.5 (Aluminium Profiles) 2400 x 2500 Class 4 (Bricos) PE/04/2013 Alugix-45 (Aluminium Profiles) PE/05/2013 Alugix-50 (Aluminium Profiles) PE/06/2013 Alugix-55 (Aluminium Profiles)
- Page 16 Giménez Ganga, S.L.U. Polígono Industrial El Castillo C/ Roma, 4 • 03630 Sax (Alicante) • Spain saxun.com...
