Solar Loyal SL-4108 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

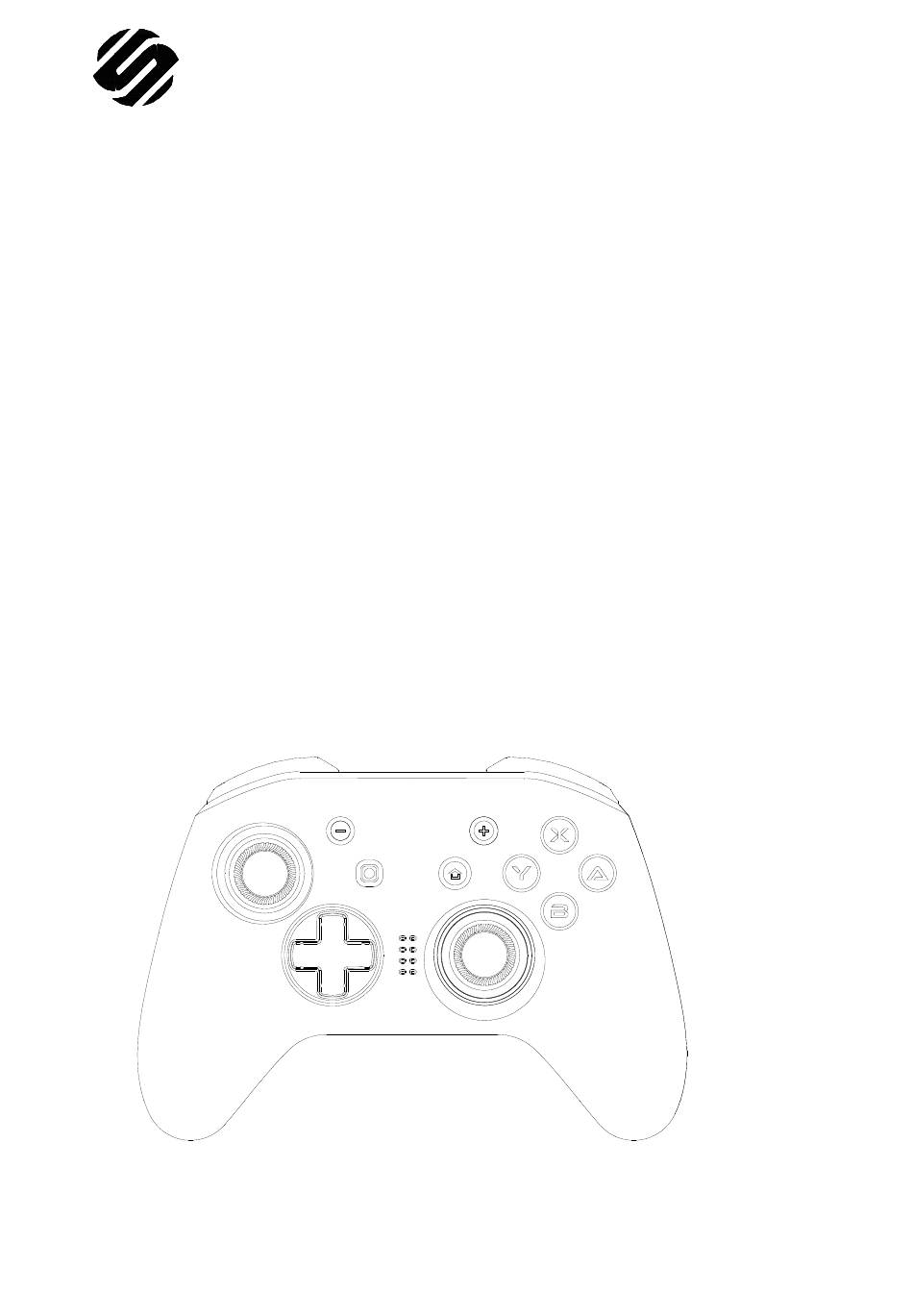

Thank you very much for purchasing this controller which is a
,
new design
carefully before using it and save it for later use.
Content
1. Bluetooth controller *1
2. 1M USB-C charging cable *1
3. Instruction manual *1
SOLAR LOYAL LIMITED
SL-4108 manual
compatible PC,
SWITCH
. Please read the manual
1
2
3
4
-1-
V:0.1
june 26,2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL-4108 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solar Loyal SL-4108

  • Page 1 SOLAR LOYAL LIMITED SL-4108 manual Thank you very much for purchasing this controller which is a SWITCH new design compatible PC, . Please read the manual carefully before using it and save it for later use. Content 1. Bluetooth controller *1 2.
  • Page 2 USB Cable FEATURE Compatible with Nintendo Switch host, PC Bluetooth technology Operation range up to 10M Built in LI-polymer battery 600mA Charging time: 2 5 hours Playing time: more than 8 hours Sensitive LB RB button, joystick and Trigger design, core gamer loved D-pad design  2 vibration motors Laser engraved mould texture on handle, ergonomic design for comfortable use 10.  With LED under face buttons and right joystick 11. Concaved joystick design with matt finish for better game control                                                        -2-        V:0.1        june 26,2019...

  • Page 3: Start Button

    ： PC XBOX 360 mode key layout Corresponds Corresponds Back button Start button Left joystick: It is set in the different game according to the customer favorite. Hold down left joystick is button L3 Directional pad: 8-way point of view control button Turbo button setting: 1.
  • Page 4 Home button Hold the "home" button for 5 seconds to turn handle power off. The function keys :A,B,X,Y A, B, X, Y backlight LED is ON when Power on the handle Hold down L + R, 5 seconds backlight LED to turn off.Hold down L+R again, 5 seconds backlight LED to turn on.
  • Page 5 Reset switch Motor vibration intensity adjustment The motor adjusts a total of 5 gears, 100% of the vibration of the first gear, 75% of the vibration of the second gear, 50% of the vibration of the third gear, 25% of the vibration of the fourth gear, and 0% of the vibration of the fifth gear.
  • Page 6 2. Hold down the turbo key first and then hold down the direction key down to weaken the vibration of the motor. If in the second gear, press the key down, it will become 3 gears ,each shift, the motor should also vibrate for 1 second,if adjusted to 3 gears, then the motor is 50% vibration intensity vibration for 1 second.
  • Page 7 PC wired mode connection Settings： 1. Insert USB cable directly to the computer USB port . 2. When channel LED1 and LED4 is normally on ,connection is successful . 3. Enjoy your game on your devices V:0.1 june 26,2019...
  • Page 8 ： The switch connection/pair Settings 1. On your Nintendo switch ,select the menu item "Controller"------"Change Grip and Order" 2. When the handle is off, hold down the Y button and then hold down the home button. The channel lights flicker and start pairing. When channel LED ,connection stay on...
  • Page 9 ： Use the cable connection Settings 1. On your Nintendo Switch,select the menu item"System Settings"----"Controllers and sensors"----"Pro Controller wired Communication"is on. 2. Insert USB cable directly to the nintendo switch charging dock. When channel LED stay ,connection is successful . 4 .
  • Page 10 Channel indicate : ： The switch can connect 8 controller The first controller ： LED1 normally on . The second controller ： LED1+LED2 is normally on . The third controller:LED1+LED2+LED3 is normally on . The fourth controller:LED1+LED2+LED3+LED4 is normally on . The fifth controller:LED1+LED4 is normally on .
  • Page 11 Switch handle upgrade operation instructions: Upgrade Preparation: 1. PC *1 2. Upgrade tool package 3. Upgrade program File Upgrade operation ： Step 1 ： ， Hold down the handle "+ and -" key then connect the USB cable to the computer usb port. -11- V:0.1 june 26,2019...
  • Page 12 Step 2 ： 1. Open the "GH800 upgrade tools" folder, Double-click to run the"testTool" program. 2. Select the only drive option that appears in the Device drop-down option box . 3. Click on the "..." in the Firmware option, Select the upgrade program file for the handle.
