ConteraIP Outdoor Dome

Flush Mount Adapter (CLD-FMA)

Installation Instructions

This document contains instructions for the installation of the CLD-FMA with ConteraIP

AV0xCLD-200 models only.

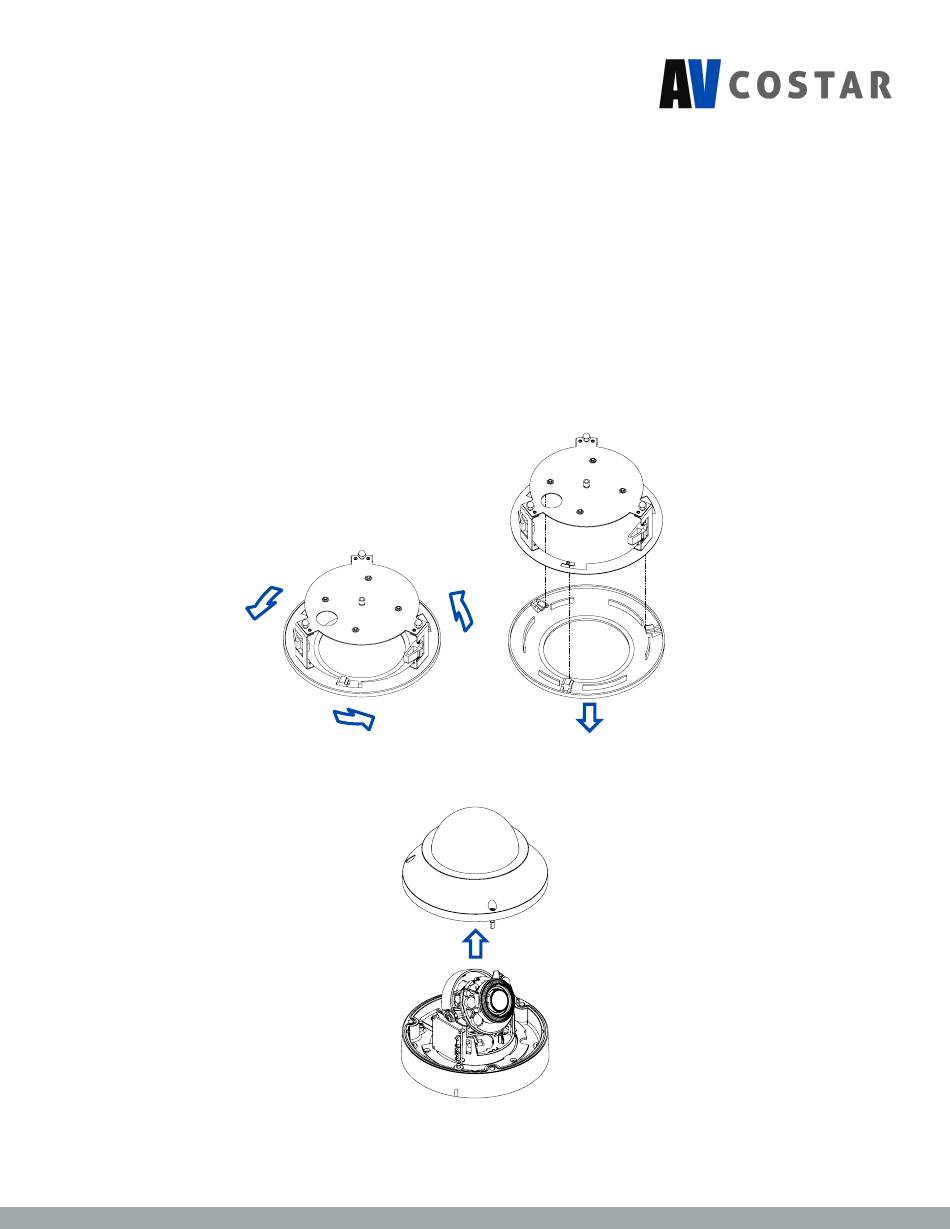

Step 1

Remove cover ring by twisting cover ring in the clockwise direction, detaching cover ring tabs from

ring bracket detents, and lift cover ring away from flush mount adapter.

Step 2

Loosen 3 captive screws that hold bubble assembly to camera housing and remove

bubble assembly.

+1.818.937.0700 | www.avcostar.com | avsales@arecontvision.com

Table of Contents

Need help?

Do you have a question about the CLD-FMA and is the answer not in the manual?

Questions and answers

Summary of Contents for AV Costar CLD-FMA

Page 1 ConteraIP Outdoor Dome Flush Mount Adapter (CLD-FMA) Installation Instructions This document contains instructions for the installation of the CLD-FMA with ConteraIP AV0xCLD-200 models only. Step 1 Remove cover ring by twisting cover ring in the clockwise direction, detaching cover ring tabs from ring bracket detents, and lift cover ring away from flush mount adapter.
Page 2 IP66 rating and prevent water ingress. Step 4 Using flush mount adapter template, cut a 6.75" [171.5 mm] diameter hole in ceiling at desired camera location. Ø6.75" (171.5mm) ConteraIP Outdoor Dome Flush Mount Adapter (CLD-FMA) Installation Instructions...
Page 3 AND the distance between the top surface of bracket ring and support wings is greater than the thickness of the ceiling panel into which the system is being installed. Panel Thickness ConteraIP Outdoor Dome Flush Mount Adapter (CLD-FMA) Installation Instructions...
Page 4 Insert housing and bracket assembly into ceiling and turn the 3 support wing screws clockwise until support wings clamp against back of ceiling. Step 12 Pivot gimbal assembly so that camera is pointing in desired direction and fasten bubble assembly to housing. ConteraIP Outdoor Dome Flush Mount Adapter (CLD-FMA) Installation Instructions...
Page 5 Step 13 Align tabs on cover ring to notch openings on ring bracket. Step 14 Twist cover ring counterclockwise, enabling tabs on cover ring to lock in place. Installation complete! ConteraIP Outdoor Dome Flush Mount Adapter (CLD-FMA) Installation Instructions...
