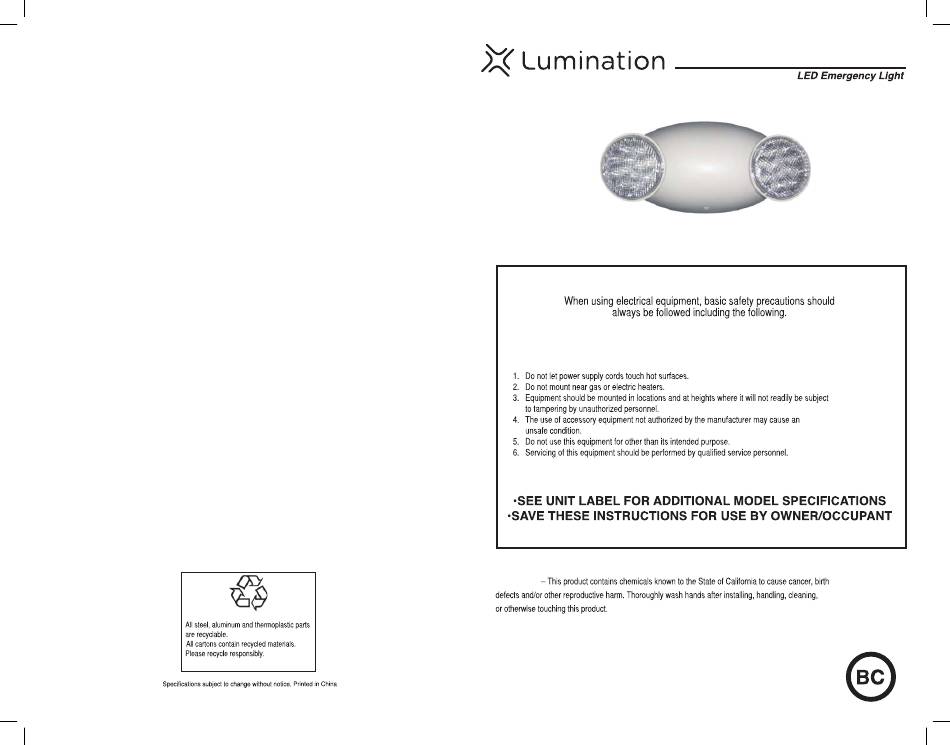

- Page 1 LUMEL Series IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS 7. Do not use outdoors. 8. Max Mountig Height:9ft. INSTALLER: WARNING RECYCLING INFORMATION COMP0001_INST_SHT 7/12...
- Page 2 INSTALLATION WIRING DIAGRAM Wiring Diagram for LED Emergency Light with Remote Capacity 277 VOLT BLACK 120 VOLT WHITE NEUTRAL CHARGER NOTE: UNUSED LEAD TO BE PROPERLY BOARD INSULATED WITH WIRE NUT OTHER APPROVED METHOD. BLACK BLACK BLACK BATTERY 3.6V/ 1800MAH TEST PLUG IN REMOTE...
