- Page 1 USER MANUAL VIA IVT01 Fanless low-power platform for AIoT applications with octa-core MediaTek i500 processor 1.00-20012022...
- Page 2 VIA Technologies, Inc. reserves the right the make changes to the products described in this manual at any time without prior notice.
- Page 3 VIA IVT01 System User Manual Battery Recycling and Disposal • Only use the appropriate battery specified for this product. • Do not re-use, recharge, or reheat an old battery. • Do not attempt to force open the battery. • Do not discard used batteries with regular trash.

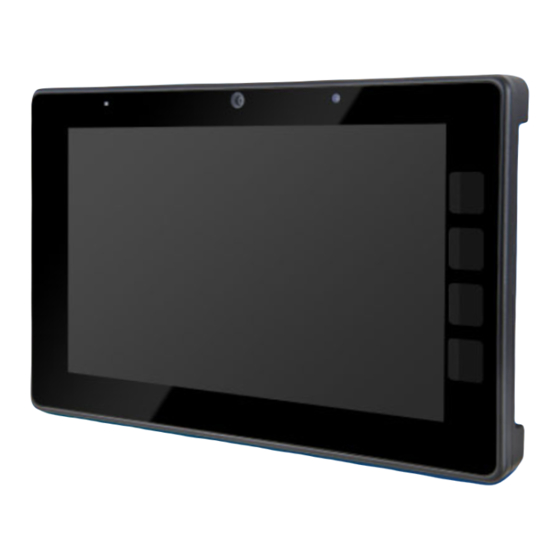

- Page 4 Description IVT-01-1E20A0 VIA IVT01 is an Android™ system with 8” FHD LCD panel and capacitive touch screen. It is powered by the 2.0GHz MediaTek i500 octa-core processor with 4GB LPDDR4 SDRAM, the system supports Wi-Fi, Bluetooth, LTE and GPS wireless connectivity as well as 16GB eMMC storage and a CMOS FHD front camera and also includes USB 2.0 connector, Micro SIM card slot, 3.5mm audio jack, connectors to support...
- Page 5 VIA IVT01 System User Manual Revision History Revision Date Description 1.00 07/02/2022 Initial release...
-
Page 6: Product Overview
1. Product Overview The VIA IVT01 is an Android™ system with 8” FHD LCD panel and capacitive touch screen n. It is powered by the 2.0GHz MediaTek i500 octa-core processor with 4GB LPDDR4 SDRAM, the system supports LTE, GPS with Dead Reckoning Technology, Wi-Fi and Bluetooth wireless connectivity as well as 16GB eMMC storage and a CMOS FHD front camera. - Page 7 VIA IVT01 System User Manual Wireless Connectivity • MediaTek MT7668 − Dual band (2.4GHz & 5GHz ) Wi-Fi5 802.11 a/b/g/n/ac RF − Bluetooth 5.0 Audio • MediaTek MT6358 • Nuvoton NAU8223 Stereo Filter-Free Class-D Audio Amplifier • SIMCom SIM7600 series miniPCIe module •...
- Page 8 VIA IVT01 System User Manual Power Supply • DC 9~36V with 36W • Support intelligent vehicle power management: ACC/IGN on/off delay and power protection • Support Input Over Voltage Protection and Short Voltage Protection Operating System • Android 10 with preload GMS Operating Temperature •...
-
Page 9: Layout Diagram
VIA IVT01 System User Manual 1 . 3 Layout Diagram Front Side Left Side Power LED FHD Camera Light Sensor Touch Key 1 Touch Key 2 Touch Key 3 Touch Key 4 Rear Side Right Side Speaker Microphone Audio Out USB 2.0... -
Page 10: Power Connector
This chapter provides information about the coastline connectors of the VIA IVT01 system. Figure 02: IVT01 connector 2.1 Power Connector The VIA IVT01 system is equipped with a power connector labeled ‘POWER’. The pinouts of power connector are shown below. Signal... -
Page 11: Usb Connector
11 VRS232_CTS3 12 RS232_RTS3 13 GND 14 NC Table 02: RS-232 connector pinouts 2.3 USB Connector The VIA IVT01 system is equipped with a USB connector labeled ‘USB’. The pinouts of USB connector are shown below. Signal Signal 2 GND USB_D-... -
Page 12: System Installation
VIA IVT01 System User Manual 3. System Installation VESA Mount The VIA IVT01 is equipped with a 75 x 75 mm square hole pattern on the rear cover, using M4 screws for attachment of the VESA mount holder. Example: VESA 75 x 75 mm... -
Page 13: Software And Technical Support
VIA IVT01 System User Manual 4. Software and Technical Support 4.1 Android Support The VIA IVT01 features a complete software evaluation image featuring the Android 10 operating systems. 4.2 Technical Support and Assistance • For utilities downloads and the latest documentation and information about the VIA IVT01, please visit our website at https://www.viatech.com/en/products/systems/ivt01-android-tablet/... - Page 14 Taiwan Headquarters Japan China 1F, 531 Zhong-zheng Road, 940 Mission Court 3-15-7 Ebisu MT Bldg. 6F, Tsinghua Science Park Bldg. 7 Xindian Dist., New Taipei City 231 Fremont, CA 94539, Higashi, Shibuya-ku No. 1 Zongguancun East Road, Taiwan Tokyo 150-0011 Haidian Dist., Beijing, 100084 Japan China...
