Summary of Contents for Winland Electronics EAPro

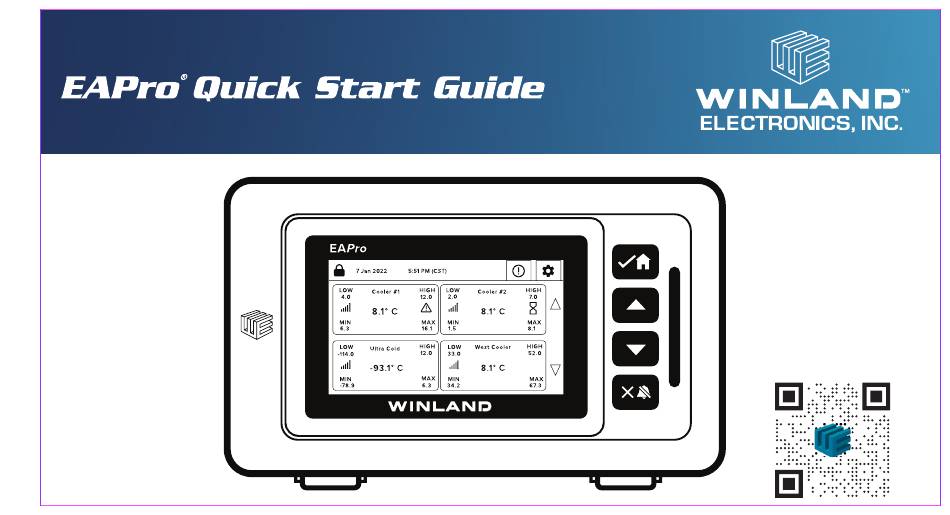

- Page 1 DOCUMENTATION...
- Page 2 Limitations of the Alarm System or Device This quick start guide is NOT a substitute for the EAPro® User Manual. All documentation related to operations should be followed. For further guidelines and safety information, please read the entire EAPro® User Manual prior to installation and operation of this unit.
-
Page 3: Front Panel
FRONT PANEL 4.7” TOUCHSCREEN ACCEPT/HOME LIGHT LED INCREASE DECREASE CANCEL/SILENCE... -
Page 4: Back Plate
BACK PLATE UPS BATTERY SENSOR INPUTS PWR OUT PWR IN OUT #5 OUT #1 OUT #2 OUT #3 OUT #4 (-) (+) PWR ON (-) (+) RELAY OUTPUTS POWER CONNECTIONS... - Page 5 POWER ON UPS BATTERY IMPORTANT! Incorrect polarity can cause personal injury and / or damage to the unit. 1. Zip tie UPS Battery to PCB. 2. Connect the UPS Battery to the MOLEX connection on the PCB. 3. Ensure POWER SWITCH, is in the DOWN (OFF) position.
- Page 6 UNLOCK To UNLOCK the EAPro®-Gateway, press the DEFAULT PIN: 1234 LOCK ICON. Press BLUE Button next to USERNAME to select USERNAME, then repeat for PIN. HOME LOCK ICON Enter the PIN using the keypad. 7 Jan 2021 5:51 PM (CST)
- Page 7 HARDWIRE SENSOR (BLUE) TEMP-L-S UNLOCKED NOTE Device MUST be unlocked to program/edit/delete sensors. Not all screens are shown in the quick start MAIN MENU 5:51 PM guide. RF Sensor similar to HARDWIRE. NOTIFICATION DATA LOGS ABOUT LOGS MENU > SENSORS > ADD SENSOR > HARDWIRE > SELECT SENSOR INPUT >...
- Page 8 HARDWIRE SENSOR (BLUE) TEMP-L-S TOGGLE UNIT OF MEASURE > TOGGLE TO ENABLE SENSOR GENERAL LIGHTS AND / OR BUZZER IF DESIRED > CONFIRM > 5:51 PM DEFAULT SETTING NAME SET POINT TOGGLE RELAYS AND LIGHT IF DESIRED > CONFIRM > UNIT OF MEASURE FAHRENHEIT HYSTERESIS...
-
Page 9: Home Screen
HOME SCREEN NOTE SENSOR ADDED 5:51 PM Repeat process for HIGH LIMITS and HIGH WARNINGS. SENSOR ADDED! SENSOR is added. Select ADD ANOTHER SENSOR, ADJUST SENSOR DETAILS, HOME to view sensor ADJUST SENSOR ADD ANOTHER DETAILS SENSOR information, or DELETE SENSOR to remove a sensor. HOME DELETE SENSOR NOTE... - Page 10 HOME SCREEN Normal Warning NOTE Condition Condition Each sensor is programmed independantly. Thus, not all colors will reflect for each sensor. Relay Latched Alarm Condition Condition ICONS WARNING DELAY NOTE LATCHED relays are not commonly used, and will only ALARM DELAY be seen if a relay is programmed to be latched.
- Page 11 HOME SCREEN COOLER #1 Within parameters. Pending Warning Condition (delay active). Warning limits set points will NOT be on display. COOLER #2 7 Jun 2022 Warning Condition. Pending Alarm Condition (delay HOME 5:51:52 PM active). HIGH HIGH Cooler #1 Cooler #2 12.0 8.1 ˚C 8.1 ˚C...
-
Page 12: Network Ethernet
NETWORK ETHERNET NOTE NETWORK TOGGLE WI-FI Chip Ensure the Network Toggle is set properly for your application. WI-FI Progamming similar. PoE RJ45 MENU NETWORK > EDIT ETHERNET > Enable/Disable DHCP > Follow prompt to enter IP settings PWR OUT PWR IN OUT #1 OUT #1 OUT #1... - Page 13 INSIGHT NOTE ETHERNET MAC SN: 000-0AB8C INSIGHT is a subcription based system. It is not XX:XX:XX:XX:XX:XX KEY: 41FA-9A11 192.168.0.2 required to operate this device. For more information WIFI: Guides XX:XX:XX:XX:XX:XX about INSIGHT: 192.168.0.1 255.255.255.0 192.168.0.10 8.8.8.8 192.168.0.10 BACK CONFIRM MENU > NETWORK > CLOUD ENABLE > SYNC (select option) >...
- Page 14 INFORMATION For the complete User Manual, EAPro® including product specifications, http://manual.eapro.winland.com user-interface details, and warranty details, please follow the QR code: tech.support@winland.com 800.635.4269 https://winland.com © 2022 Winland Electronics D-011-0178 Rev. A (06/2022)
