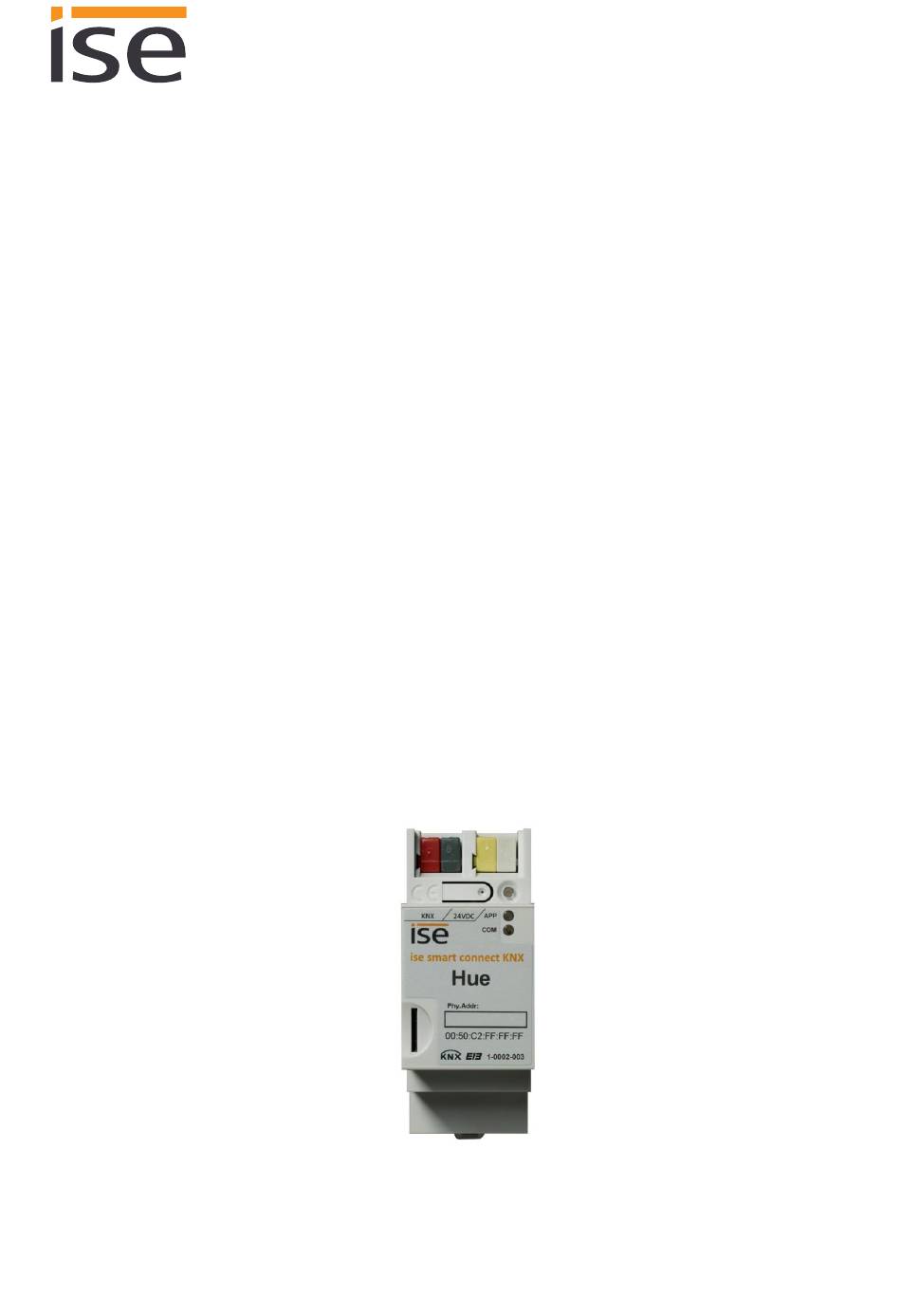

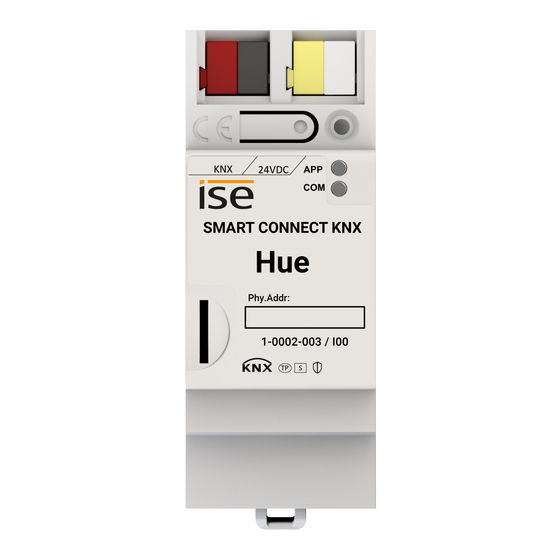

  • Page 1 KNX Hue Product Manual Documentation date: 16/04/2018 Printing date: 16/04/2018 Product Manual ise smart connect KNX Hue Order No. 1-0002-003 Valid for application software v4.3 and firmware version v4.0...

  • Page 2: Table Of Contents

    Mounting and electrical connection .................... 16 Configuration ........................18 Configuration step 1 − Create ise smart connect KNX Hue as device in the ETS ....19 Configuration step 2 – Assigning a physical address ..............19 Configuration step 3 – Setting the IP address, subnet mask and address of the standard gateway ............................
  • Page 3 License agreement ise smart connect KNX Hue software ..........57 10.1 Definitions ........................... 57 10.2 Object of the agreement ......................57 10.3 Rights of use of the ise smart connect KNX Hue software ............57 10.4 Restriction of rights of use ......................57 10.4.1 Copying, modification and transmission................57 10.4.2 Reverse engineering and conversion technologies ............

  • Page 4: Product Description

     The ise smart connect KNX Hue is best configured using the latest version of the ETS4 or ETS5. The application accesses ETS functions not supported by earlier ETS versions. This is why previ- ous versions of ETS cannot be used for configuration.

  • Page 5: A Bright Moment: Philips Hue Meets Knx

     The light follows you where you go. By combining Philips Hue and ise smart connect KNX Hue, you can have plenty of brightness as you go through the house thanks to the use of motion/presence detectors.

  • Page 6: Definitions And Explanation Of Terms

    Philips base station to connect LED lights to the WLAN router: the Hue Bridge and Hue lights are connected wirelessly using Zigbee. The ise smart connect KNX Hue uses the Philips Hue Bridge to control the Hue lights using IP. Up to five Hue Bridges can be controlled with a ise smart connect KNX Hue.

  • Page 7: Application Example Comfort Solution In The Living Environment

    KNX Hue Application example Comfort solution in the living environment Application example Comfort solution in the living environment Function schematic Order No. 1-0002-003 Product Manual Page 7 (60)

  • Page 8: Comfort Solution In The Living Environment

    In this application, a door contact connects with the KNX to influence the light scene in the rooms in question. If the door is opened, the rooms become a visual unit. The ise smart connect KNX Hue enables the use of the same light scene in both rooms.

  • Page 9: Philips Hue Signals Important Events Visually

    KNX Hue Application example Comfort solution in the living environment 2.2.2 Philips Hue signals important events visually By coupling it with KNX, the Philips Hue becomes an optical signal transmitter for many applications. Define the respective event (doorbell, smoke detector, motion detector, door or window contact etc.) and the location and type of signalling.

  • Page 10: Ise Smart Connect Knx Hue Makes Operation More Convenient

    KNX-compatible visualisation panels. The light follows you where you go By combining Philips Hue and ise smart connect KNX Hue, you can have plenty of light as you go through the house thanks to the use of motion/presence detectors.

  • Page 11: The Ise Smart Connect Knx Hue Controls Home Technology

    The House party scene can provide bright lighting and a changeover to cooling mode. Select scenes which operate your home technology using the ise smart connect KNX Hue. Note: Optional logic modules are required for using light scenes and actuators.
  • Page 12 KNX Hue Application example Comfort solution in the living environment The Philips Hue warns of/reports unexpected visits (Literal motion detection): When it's dark, the Philips Hue can notify you in good time of movement outdoors with an alarm effect in every room before the doorbell is even pressed.

  • Page 13: Commercial Application Scenarios

    Commercial application scenarios Lighting mood suitable for daylight The ise smart connect KNX Hue can present lighting moods at the push of a button or at set times. With this application, you can illuminate your rooms just the right way.

  • Page 14: Example Configuration With Time Switching

    KNX Hue Commercial application scenarios 3.1.2 Example configuration with time switching KNX-TP IP data net- bus line work ise smart connect Ethernet KNX Hue ise smart connect Requirements for The Hue provides the right KNX Hue Converts light scenes lighting mood.

  • Page 15: Installation, Electrical Connection And Operation

    Width (W): 36 mm (2 HP) Height (H): 90 mm Depth (D): 74 mm Figure 1: ise smart connect KNX Hue Programming button Switches the device to the ETS programming mode or vice versa. for KNX KNX connection On left:...

  • Page 16: Safety Notes

    KNX Hue Installation, electrical connection and operation MicroSD card holder No function. Safety notes Electrical devices may only be installed and mounted by a qualified electrician. In doing so, the applicable accident prevention regulations must be observed. Failure to observe the installation instructions can result in damage to the device, fire or other dangers.
  • Page 17 KNX Hue Installation, electrical connection and operation Mounting/removing a cover cap A cover cap can be mounted for protection of the KNX bus and power supply connections from dan- gerous voltage, particularly in the connection area. The cap is mounted with an attached bus and power supply terminal and a connected bus and power supply line to the rear.

  • Page 18: Configuration

    Set up the Hue lights using the Philips Hue software. documentation Install the ise smart connect KNX Hue on the same IP network as the Philips Hue Bridge and make settings in the router of the IP network if necessary.

  • Page 19: Configuration Step 1 − Create Ise Smart Connect Knx Hue As Device In The Ets

    Configuration step 3 – Setting the IP address, subnet mask and address of the standard gateway In addition to the physical address on the KNX network, the ise smart connect KNX Hue must also be assigned an address on the IP data network. This includes the following information: ...
  • Page 20 If the  Obtain an IP address automatically setting is used, a DHCP server must issue the ise smart connect Figure 5: Setting of the IP address data of KNX Hue a valid IP address.

  • Page 21: Setting General Parameters

    This option can also influence absolute brightness changes. It can be set separately for each light. Enables you to configure the number of lights which can be controlled on the ise smart connect KNX Number of lights 1, 2, 3…25 Hue.

  • Page 22: 5.4.3 Communication Objects For Controlling The Philips Hue Bridge

    KNX Hue Configuration 5.4.3 Communication objects for controlling the Philips Hue Bridge The following communication objects are available for the connection of group addresses at the ise smart connect KNX Hue: Object Name Direction Data width DP type...
  • Page 23 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) Scenes control Write 1 byte 18.001 C-W-- Rubric: Data type: Scene Scenes control Function: Activates the scene based on the Scene number field Description: Scenes added to the Philips Hue app can be activated. You can assign the Philips Hue scenes to the KNX scene numbers on the device website (see Chapter 6.11 Configuring lights on the website).

  • Page 24: 5.4.4 Communication Objects To Control The Hue Lights

    KNX Hue Configuration 5.4.4 Communication objects to control the Hue lights Up to 25 Hue lights can be controlled. The Hue lights are assigned to communication objects using the light configuration page on the device website (see Chapter 6.10 ) Communication objects are generat- ed for 3 lights by default (see Chapter 5.4.1 Parameter page General).
  • Page 25 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) n f(n) Light state – Light "n" Read 1 bit 1.001 CR-T- 1 20*n+1 2 20*n+1 3 20*n+1 4 20*n+1 5 20*n+1 6 20*n+1 7 20*n+1...
  • Page 26 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Set brightness – Light "n" Write 1 byte 5.001 C-W-- 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3 20*n+3...
  • Page 27 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Set colour – Light "n" Write 3 bytes 232.600 C-W-- 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5 20*n+5...
  • Page 28 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Set "red" colour value – Write 1 byte 5.001 C-W-- 20*n+7 20*n+7 Light "n" 20*n+7 20*n+7 20*n+7 20*n+7 20*n+7 20*n+7 20*n+7 20*n+7 20*n+7 20*n+7...
  • Page 29 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Colour value "red" state – Read 1 byte 5.001 CR--- 20*n+8 20*n+8 Light "n" 20*n+8 20*n+8 20*n+8 20*n+8 20*n+8 20*n+8 20*n+8 20*n+8 20*n+8 20*n+8...
  • Page 30 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Set "green" colour – Write 1 byte 5.001 C-W-- 20*n+9 20*n+9 Light "n" 20*n+9 20*n+9 20*n+9 20*n+9 20*n+9 20*n+9 20*n+9 20*n+9 20*n+9 20*n+9 20*n+9...
  • Page 31 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Colour value "green" state – Read 1 byte 5.001 CR--- 20*n+10 20*n+10 Light "n" 20*n+10 20*n+10 20*n+10 20*n+10 20*n+10 20*n+10 20*n+10 20*n+10 20*n+10 20*n+10...
  • Page 32 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Set "blue" colour value – Write 1 byte 5.001 C-W-- 20*n+11 20*n+11 Light "n" 20*n+11 20*n+11 20*n+11 20*n+11 20*n+11 20*n+11 20*n+11 20*n+11 20*n+11 20*n+11...
  • Page 33 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Colour value "blue" state – Read 1 byte 5.001 CR--- 20*n+12 20*n+12 Light "n" 20*n+12 20*n+12 20*n+12 20*n+12 20*n+12 20*n+12 20*n+12 20*n+12 20*n+12 20*n+12...
  • Page 34 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Colour gradient function state – Read 1 bit 1.001 CR-T- 20*n+14 20*n+14 Light "n" 20*n+14 20*n+14 20*n+14 20*n+14 20*n+14 20*n+14 20*n+14 20*n+14 20*n+14 20*n+14...
  • Page 35 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Switch alert flash – Light "n" Write 1 bit 1.001 C-W-- 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16 20*n+16...
  • Page 36 2-byte object to set the colour temperature value for Light "n". The Hue system uses the Mired (micro reciprocal degree) colour tempera- ture as a unit of measurement. The ise smart connect KNX Hue uses a standardised communication object with the kelvin (K) as unit of measure- ment.
  • Page 37 2-byte object to display the colour temperature status for Light "n". The Hue system uses the Mired (micro reciprocal degree) colour tempera- ture as a unit of measurement. The ise smart connect KNX Hue uses a standardised communication object with the Kelvin (K) as unit of measure- ment.
  • Page 38 KNX Hue Configuration Object Name Direction Data width DP type Flags (CRWTU) f(n) Light connection status – Light Read 1 bit 1.002 CR-T- 20*n+19 20*n+19 "n" 20*n+19 20*n+19 20*n+19 20*n+19 20*n+19 20*n+19 20*n+19 20*n+19 20*n+19 20*n+19 20*n+19...

  • Page 39: Commissioning

    KNX Hue Commissioning Commissioning Operation Figure 6: ise smart connect KNX Hue. Programming button for Switches the device to the ETS programming mode or vice versa. KNX connection (twisted On left: (+/red) pair) On right: (–/black) DC 24 to 30 V, 2 W (at 24 V)

  • Page 40: Automatic Hue Bridge Detection

    KNX Hue Commissioning Automatic Hue Bridge detection The ise smart connect KNX Hue searches for available Hue Bridges during start-up and while in opera- tion. The Hue Bridges found are displayed on the device website ready for selection. LED status displays The devices features three status LEDs on the upper housing side and four status LEDs on the network connections.
  • Page 41 KNX Hue Commissioning LED "APP" (green) Meaning  Green Normal operation Device in start-up procedure or out of operation:  Wait until the start-up procedure is complete or check the power supply Error: One of the following errors has occurred: ...

  • Page 42: Accelerate Transfer: Select Transfer Path Knx-Tp Or Ip

    KNX Hue Commissioning Accelerate transfer: Select transfer path KNX-TP or IP Programming (transfer from the ETS to the device) occurs in the programming environment of the ETS. An additional KNX data interface is not required for transfer (bus connection via bus connection termi- nal).

  • Page 43: Transferring Application Programs And Configuration Data

    KNX Hue Commissioning Transferring application programs and configuration data After programming the physical address, the application program, parameter settings and group ad- dress connections can be transferred to the device. A connection to the device can be further established via IP or KNX for this purpose.

  • Page 44: Firmware Update Of The Device

    The ise smart connect KNX Hue makes it possible to install firmware updates using the device web- site. Select Update firmware in the System menu on the device website to do so. The ise smart con- nect KNX Hue will now automatically search the update server for a newer version and show the cur- rent firmware version and the versions of any available updates.

  • Page 45: Registering The Hueapp On One Or More Philips Hue Bridges

    HueApp at the Philips Hue Bridge. The ise smart connect KNX Hue must be registered on a Philips Hue Bridge to ensure correct opera- tion. You have the option of using the "Add Hue Bridge" button to register on an automatically detected bridge.

  • Page 46: Configuration Of Lights Using The Website

    Configuration of lights using the website The ise smart connect KNX Hue allows you to configure up to 25 Hue lights on registered Philips Hue Bridges. You can select them using the light names known to the Hue Bridges concerned.
  • Page 47 KNX Hue Commissioning 5% to 100% A fixed switch-on brightness can be defined in 5% increments. ETS setting (default setting) The value parametrised in the ETS is used for the switch-on brightness (compare Chapter 5.4.2 Light parameter tab).

  • Page 48: Configuring Lights On The Website

    You can use Communication Object 4 to activate them (see Chapter 5.4.3 Communication objects for controlling the Philips Hue Bridge). This website lists all KNX scene numbers configured on the ise smart connect KNX with their associat- ed scene names in the Philips Hue scenes. The site also indicates the registered bridges that these Philips Hue scenes are available on.

  • Page 49: Scenes With Signal Flashing

    KNX Hue Commissioning 6.11.1 Scenes with signal flashing Scenes can be configured as signal flash scenes which allow lights to flash in a Hue scene. The signal flashing finishes automatically when the defined period comes to an end (if "Infinite" has not been selected) or when terminated (before time) by a cancellation scene.
  • Page 50 KNX Hue Commissioning The cancellation scene is added automatically and is displayed in the descrip- tion for the scene no. which initiates the trigger. Early termination cannot be added if there is no free scene number available.

  • Page 51: Technical Data

    KNX Hue Technical data Technical data KNX medium Commissioning mode S mode (ETS) KNX supply DC 21 to 30 V SELV KNX connection Bus connection terminal External supply Voltage DC 24 to 30 V ±10% Connection Bus connection terminal, preferably yellow (+)/white (–)

  • Page 52: Frequently Asked Questions (Faq)

    Can I still operate my Hue lights with other apps, e.g. from my iPhone? Yes. Use of the ise smart connect KNX Hue does not limit the operation of your Hue lights. Changes, for example those you make using your smartphone, are forwarded to the KNX ac- cordingly wherever possible.
  • Page 53 Why does the ETS report the error that it is not possible to write on a protected area when downloading the application program? Please ensure that your ETS version is up to date. The ise smart connect KNX Hue requires the ETS4 version 4.2 or higher or the ETS5 version 5.0.2 or higher.
  • Page 54 Use a different light type, such as the Philips Hue, to achieve the desired effect.  Why is my ise smart connect KNX Hue restarting? If the device performs another restart, please check whether you used the sign "\" in the device name.

  • Page 55: Troubleshooting And Support

    Status page of the ise smart connect KNX Hue You can call up the device status on the website of the ise smart connect KNX Hue (see Section 6.7.2). Among other things, it displays the installed software version and the configuration of the Hue lights in the ise smart connect KNX Hue.

  • Page 56: The Ise Smart Connect Knx Hue Does Not Work

    KNX Hue Troubleshooting and support The ise smart connect KNX Hue does not work The following error tree is intended to solve the most common problems. Should this be unsuccessful, please contact us at support@ise.de. Please check the KNX cabling and...

  • Page 57: License Agreement Ise Smart Connect Knx Hue Software

    Licensor. 10.4.4 Transfer to a third party The ise smart connect KNX Hue software may not be passed on to third parties, nor may it be made accessible to third parties. 10.4.5 Renting out, leasing out and sub-licensing The Licensee is not authorised to rent or lease the ise smart connect KNX Hue software or grant sub- licenses to the program.

  • Page 58: Software Creation

    The Licensor shall not be liable for damages due to loss of profit, data loss or any other financial loss resulting from use of the ise smart connect KNX Hue software, even if the Licensor is aware of the pos- sibility of such damage.

  • Page 59: Applicable Law

    The license to use the ise smart connect KNX Hue software shall expire upon termination of the agreement. The ise smart connect KNX Hue product must be taken out of operation in such a case. Further use of the ise smart connect KNX Hue without a license is precluded.

  • Page 60: Open Source Software

    The license texts for the GPL and LGPL are available on the following web page: http://www.gnu.org/licenses/licenses.html The source code for this software can be obtained by email at support@ise.de. This offer is valid for 3 years after the service for this product has been discontinued.
