EZInstall Kit V2 Installation
Mounting the Kit

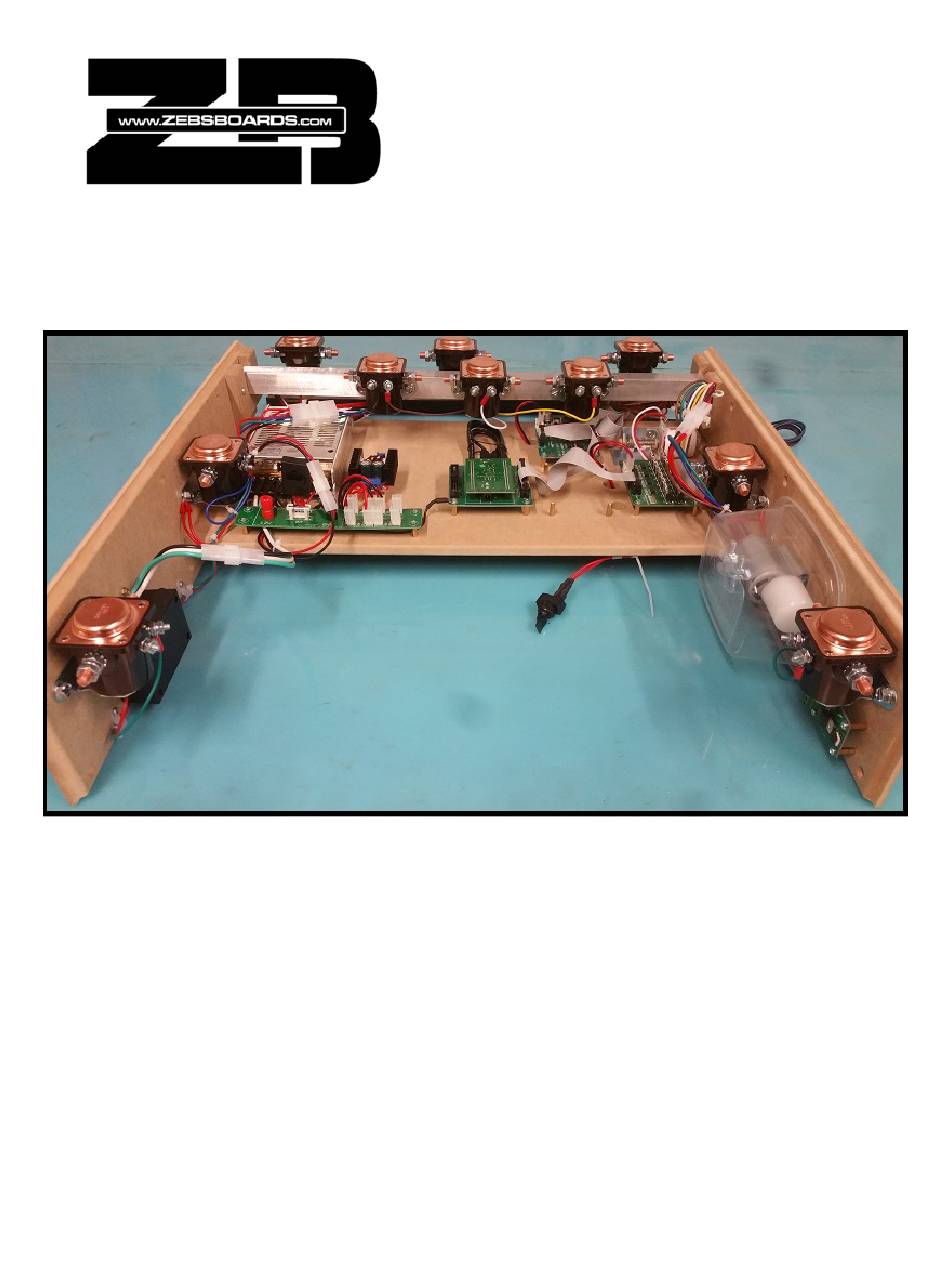

The kit should be mounted as shown in the illustration above. Recommended positioning
would be to install as far forward in the cabinet as possible, putting the flipper solenoids
(furthest forward solenoids on side panels) close to the flipper switches ensuring the best
response and feedback for them as possible. Ensure that at least ¾" (19mm) space is left
between the top of the solenoids and the bottom of the playfield monitor.
Install the side panels with the slot opening to the rear of the kit on a slight downward angle
toward the front and in a parallel position in the cabinet and slide the mainboard into the slot
from the rear.
Use mounting screws appropriate in length to the thickness of your cabinet construction and
install them in the mounting holes provided making sure not to puncture the outside face of
the cabinet.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZInstall Kit V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZEBSBOARDS EZInstall Kit V2

  • Page 1 EZInstall Kit V2 Installation Mounting the Kit The kit should be mounted as shown in the illustration above. Recommended positioning would be to install as far forward in the cabinet as possible, putting the flipper solenoids (furthest forward solenoids on side panels) close to the flipper switches ensuring the best response and feedback for them as possible.
  • Page 2 Power Connections (AC MAINS) While the supplied power supply has built in short circuit and thermal overload a 10A external circuit protector (circuit breaker) has been installed in the power box. If at any time the power to the kit is interrupted, please check and reset the circuit breaker if necessary.
  • Page 3 Left and Right Panel Connections Connect the left panel connectors to the corresponding connectors on the mainboard as shown in the illustration below. The open ports on the 12V distribution board are provided to supply additional 12V toys if desired. There is a 10A standard automotive blade fuse in the black fuseholder below the power supply protecting the booster module (red board) which powers the replay knocker.
  • Page 4 Connect the right panel connectors to the corresponding connectors on the mainboard as shown in the illustration below.
  • Page 5 The 4 open terminals on the Booster Board connector can be used for future expansion (beacons, fan, button lighting, etc.) To expand the system, simply connect the negative side of the toy to the open port on the booster board and connect the positive side of the toy to the appropriate positive voltage source (12V is supplied by the kit, other voltages will require an additional power supply.) LIGHTBAR/STROBES CONNECTION Mount the lightbar in the desired location and connect the ribbon and power cables to the Resistor...
  • Page 6 Solenoid Bar Connections Ensure that the 6 pin connector at the left of the bar is connected to the left panel as previously described….. … and connect the 8 pin connector at the right side to the booster board as shown below.
  • Page 7 From Left to Right the pinout for the Solenoid Bar and Right Panel connectors is as follows:...

  • Page 8: Usb Cable Connection

    USB Cable Connection Connect the USB cable from the PacLED64 (shown below) to a free USB port in your computer.
  • Page 9 Adjustments Speed Control The shaker motor speed can be adjusted by turning the trim pot located on the speed control board at the front of the right panel. Night Mode A night mode switch has been installed which will allow you to turn off the booster board controlling the solenoids, shaker motor and replay knocker.

  • Page 10: Software Setup

    Software Setup Pacled64 units ship from Ultimarc with a default demonstration (attract) pattern burned into the firmware. Since this pattern uses pwm across all of the outputs and solenoids (particularly the replay knocker) don’t play nicely with pwm (it causes a huge draw in power) this pattern needs to be turned off.
  • Page 11 BEFORE turning on the NIGHT MODE SWITCH for the 1 turn on the kit and ensure that the lightbar is not running a pattern, if it is, rerun the above steps. Zebsboards is not responsible for damage caused by adverse side effects of controllers and or software setup.
  • Page 12 DOF Configuration **Standard Kit Settings...
