inspired LED 5014 Quick Start Manual

5014 RF Wireless RGB Controller from Inspired LED
Connect Power Plug 12V Inspired LED Power Supply into the power connector.
Connect LEDs
Plug all RGB flex into the four-pin RGB output.
On/Off
Press 'Key 1' to turn the RGB LEDs on or off in any state.
Press 'Key 3' once to activate white light mode. Press 'Key 3' again to activate
Solid Color
color light mode, and select a desired color by using the touch wheel. Change
brightness in either mode by pressing 'Key 4' or 'Key 5'.
Pre-Programmed
Press 'Key 2' to activate light changing mode, cycle through 15 pre-programmed
Color Changing modes by pressing 'Key 2' again.
Press 'Key 4' once within three seconds of connecting power to the controller to
Remote Match match the remote to the controller. The connected lights will blink 3 times if
successfully matched. One remote may be matched to multiple controllers.
Press 'Key 4' five times within three seconds of connecting power to the controller
Remote Clear
to clear a remote from a controller. The connected lights will blink 6 times if
successfully cleared and the remote will no longer influence the controller.
Please don't touch or press the touch wheel within 3 seconds of loading the
batteries to protect the sensitivity of the remote. If the touch wheel loses
Remote Sensitivity
sensitivity, remove and reinstall the batteries.
Inspired LED 1733 E. McKellips Rd. Suite #111 Tempe, AZ 85281 (480) 941-4286 www.inspiredled.com

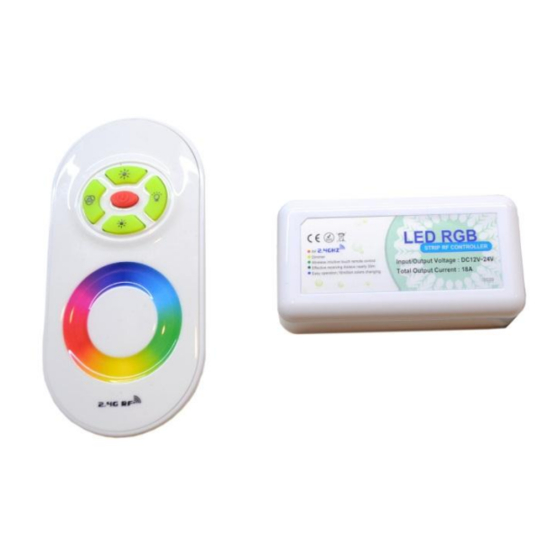

The RF Wireless RGB Controller from Inspired LED is a sleek,
convenient solution to controlling RGB LED Lighting. Choose
from 15 different pre-programmed color changing modes, or
simply select a solid color from the color wheel, by using the
remote from up to 65 feet away from the controller. Turn the
entire system on and off with the remote - when the system is
turned back on, the previous setting will be resumed.

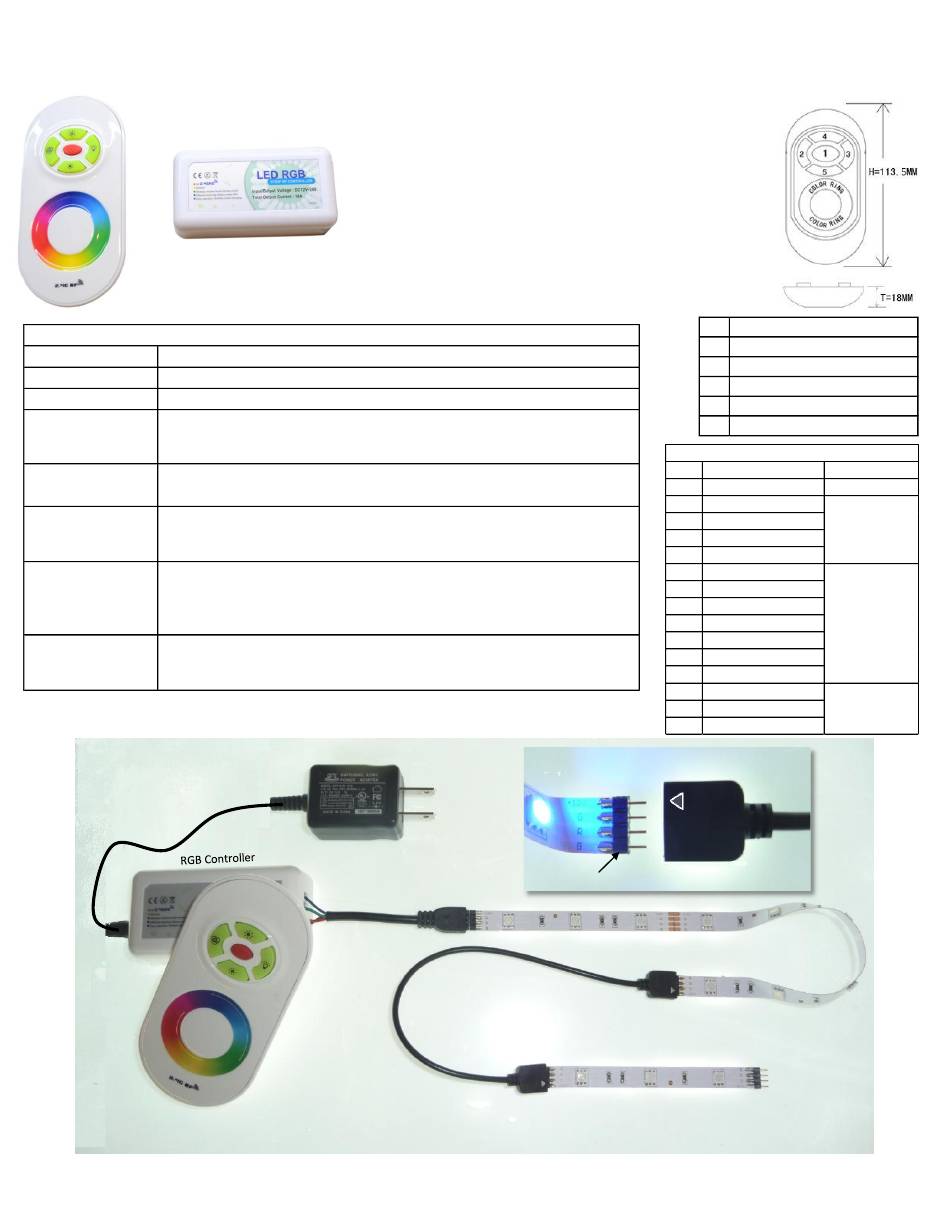

How to Use the RGB Controller
12 VDC Power Supply
Controller Cable
5009
RGB
Remote
Look for
+12VDC
G
R
B
Cut Flex to length and solder on interface connector
Four Conductor Cable
5005 through 5008
Key
1 On/Off
2 Change Pre-Programmed Setting
3 White Light / Color Light
4 Increase Brightness/Speed
5 Decrease Brightness/Speed
Pre-Programmed Color Changing Mode Chart for 'Key 2'
Mode
Description
1
Auto Color Changing
2
Three Color Jump
3
Seven Color Jump
4
Three Color Gradual
5
Seven Color Gradual
6
Blink Red
7
Blink Blue
8
Blink Purple
9
Blink Green
10
Blink Yellow
11
Blink Cyan
12
Blink White
13
Blink Red/Blue Alternately
14
Blink Green/Blue Alternately
15
Blink Red/Green Alternately
+ or Arrow
on connector products
Connect to +12VDC
RGB Flex Strip
Function
Key 4/5 Function
8 grades of Brightness
8 grades of Speed
8 grades of Brightness
8 grades of Speed
