FIBERNET LADY Operating Manual
Electric motor
Hide thumbs
Also See for LADY:
- User & maintenance manual (30 pages) ,
- User & maintenance manual (32 pages)
Related Manuals for FIBERNET LADY
Summary of Contents for FIBERNET LADY

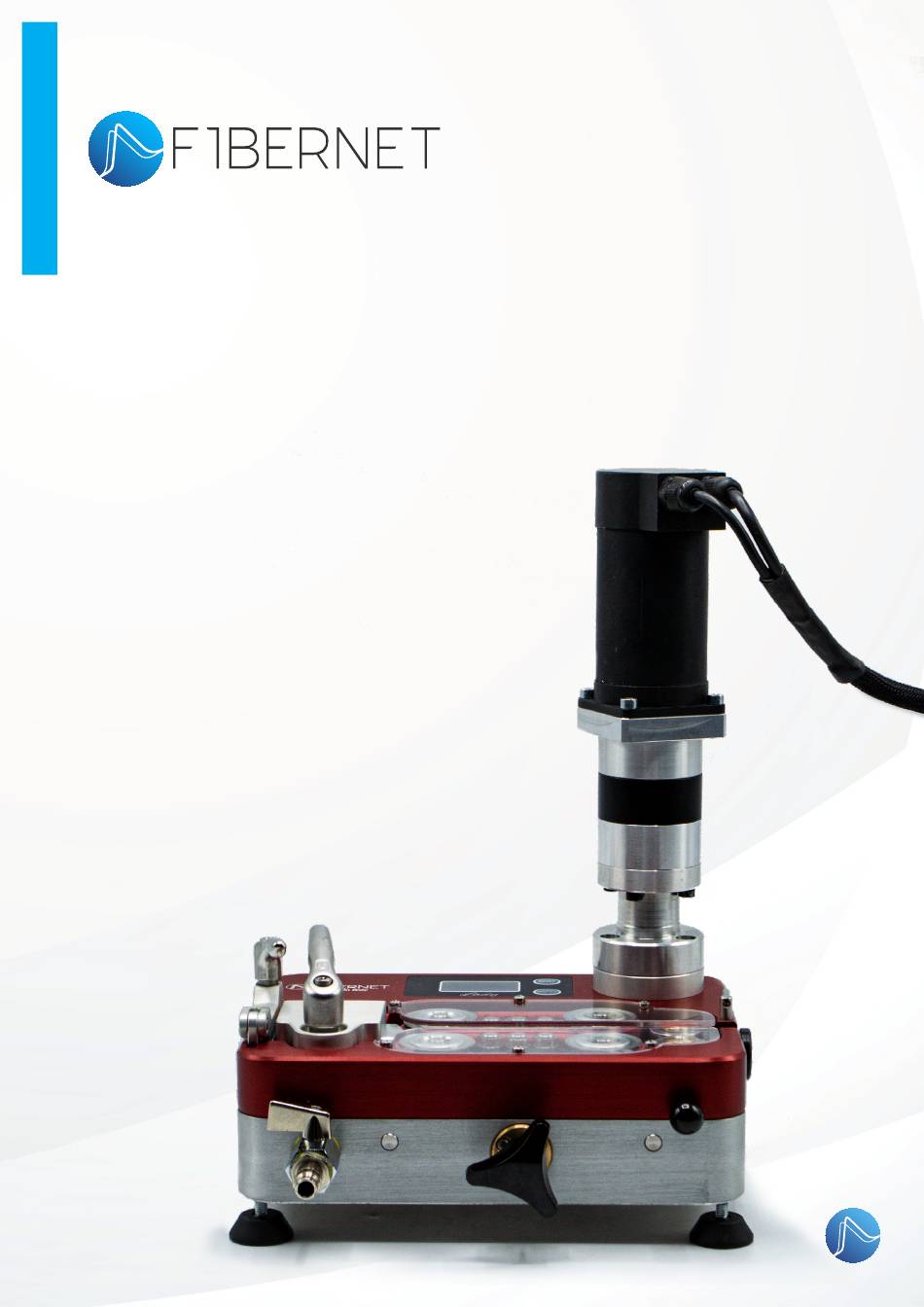

- Page 1 OPERATING MANUAL LADY | ELECTRIC MOTOR How to use your electric motor in few steps...
- Page 2 TECHNICAL F E A T U R E S • Waterproof polypropylene suitcase; • Dimensions: 20 X 34 X 41 cm; • 36 V - 15 Ah lithium-ion battery - Dimensions 76 X 70 X 260 mm; • Li-Ion battery charger; •...
- Page 3 ADAPTER ASSEMBLY Take adapters; Take your LADY jetting machine Insert adapters on your Result should be as Jetting machine one by shown in picture above Put electric motor Now you can start into the adapters to jet cables...
- Page 4 P A N E L CONTROL Battery Charge Level; Motor Electrical Consumption; Torque Alarm (Red Light = Torque Limiter); Torque Reset Button; Torque Control Knob; Protection Fuse; Charging Port; Main Switch; Current Alarm (Red Light = Current Limiter); Emergency Key; Speed Controller Knob;...
- Page 5 M O T O R DIRECT CONTROL EMERGENCY KEY Pressing this button you can stop motor operations in any moment. (To Restore just turn it following arrows direction) SPEED CONTROLLER Using this knob you can control motor speed to ensure maximum efficiency...
- Page 6 L i - I o n BATTERY CHARGER F EATU RE S • Advanced High Frequency switching mode • 2 LEDs: LED 1 Red = Power on, LED 2 power supply technology; Red/Green = Charging/Charged; • DC output isolated from AC input; •...
- Page 7 H O W T O LAY CABLES A. Set speed controller (11) into position “0”; B. Set Main Switch (8) on “I” position ; C. Adjust the torque using “speed controller knob”(11), according to cable outer diameter (Small cable = Low Torque / Large cable = High Torque); IN CASE OF D.
- Page 8 V i a d e g l i O l m e t t i , 1 8 - 0 0 0 6 0 Fo r m e l l o ( R M ) – R o m e , I TA LY Te l .
