Page 1

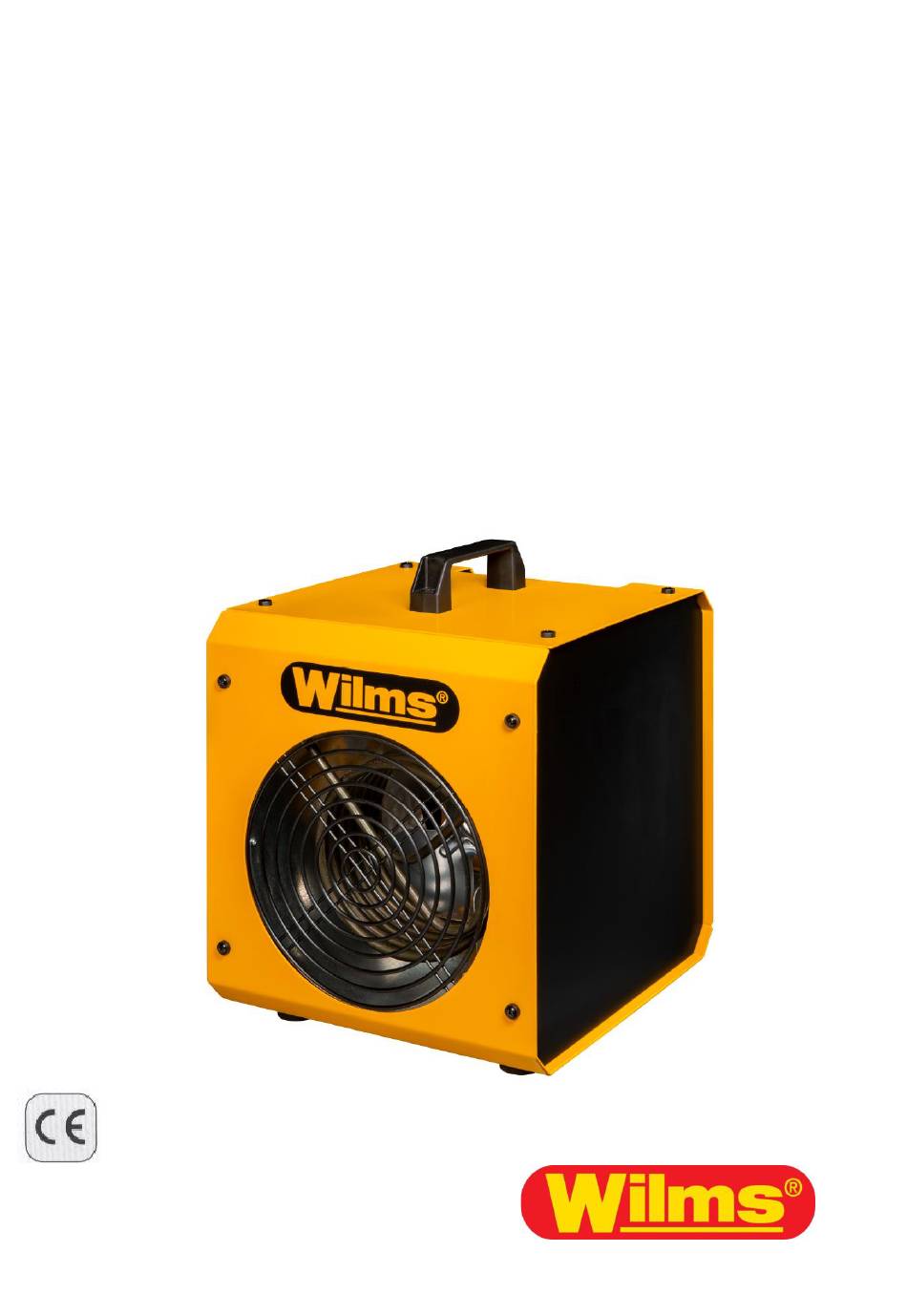

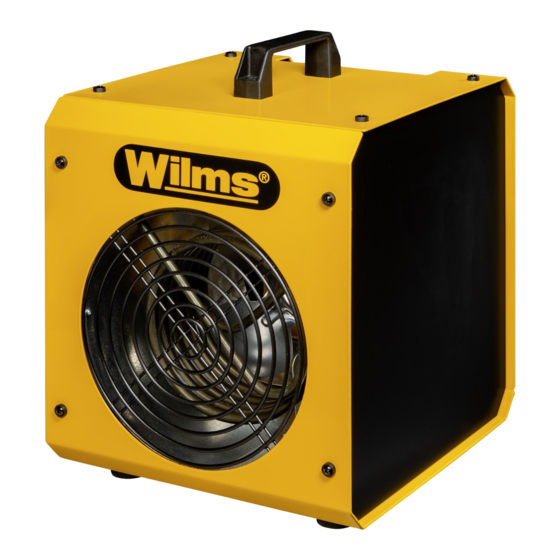

Operating Manual Electric Heater EL 4 Perfection is our aim.
Page 2
EC machine directive 2006 / 42 / EEC Type of machine: Electric Heater EL 4 is designed, constructed and manufactured in accordance with the above-mentioned directive, the directive for low tension 2014 / 35 EEC and EMV directive 2014 / 30 EEC.
This sign warns of a potential hazard that may occur if the described procedures are not taken into account. Note that this sign is always preceded by: Danger: Risk of serious or fatal injury. Warning: Risk of serious and irreparable injury. Caution: Risk of material damage and further information that may be useful to users of the heater.
Page 5
WARNING! Take due note of the following safety instructions! Failure to follow them may result in serious consequences for users, property and damage to the environment. Some parts of this appliance may reach high temperatures, and may cause burns to the operator. Take particular care in the presence of children or vulnerable people.
Page 6
Precautions for preventing possible damage! • Check whether or not the appliance is switched on. • Keep the air intake and exhaust outlet unobstructed. • Do not cover the appliance during operation. • Only unplug the appliance once the unit is completely idle. •...
Page 7
Risk of injury! • Changes and repairs to the heater must be performed by qualified personnel. • If the power cord is damaged, to avoid hazards, it should be replaced by the manufacturer, after-sales service or by qualified personnel. • Do not insert any objects into the air intake or outlet of the appliance.
2. INSTALLATION Before operating your heater for the first time, you should carefully read the instructions manual. After receiving the unit, you should check that your heater has been damaged during transport. In the event of damage, you should inform the sender immediately. Damage during transport should be reported after unpacking the equipment.
The heater may be used to be in continuous operation. 6. APPLICATION The EL 4 electric heater is designed for heating and air ventilation, and may be used indoors. It is used for drying, thawing, heating or simply for ventilation.
7. DESCRIPTION 1 Handle 2 Cover 3 Air outlet grille 4 Switch 0/1 5 Power Cord 6 Red warning lamp - Turns on when the appliance is operating 7 Thermostat 8 Fan 9 Air intake grille 10 Feet 8. OPERATING INSTRUCTIONS Turning on the heater To switch the appliance on, set the 0/I switch (1) to the “I”...
9. TECHNICAL SPECIFICATIONS SPECIFICATIONS EL 4 Rated Power 3.3 kW Nominal Voltage 230V~50 Hz Nominal Current 14,35 A Plug Schuko 16 A Air Flow 360 m³/h Output temperature (ΔT) 75°C Thermostat Mobility Portable Noise 50 dB(A) Depth 300 mm Width...
11. TROUBLESHOOTING Fault Cause Remedy Heater not working Plug connections Connect the heater to the power outlet Connect heater to a compatible outlet No supply voltage Consult technical specifications, as described in the “technical data” section. Replace the fuse; Warning! Fuses should not be repaired, Installation fuse blown but rather replaced with new ones;...
12. ELECTRIC DIAGRAM EL 4 Electric wiring diagram 13. END-OF-LIFE OF THE APPLIANCE This appliance is marked with the symbol for compliance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), which means that this appliance should not be disposed of as household waste at the end of its life cycle.
14. SPARE-PARTS-LIST EL 4 (from manufacturer year 49) Pos. Part-No. Description Qty. 6164201 Housing air outlet 6164202 Housing air inlet 6164203 Side panel housing 6164204 Air outlet 6164231 Air cover 6164229 Control panel baseplate 6164230 Control panel 6164209 Fan reflecting shield...
