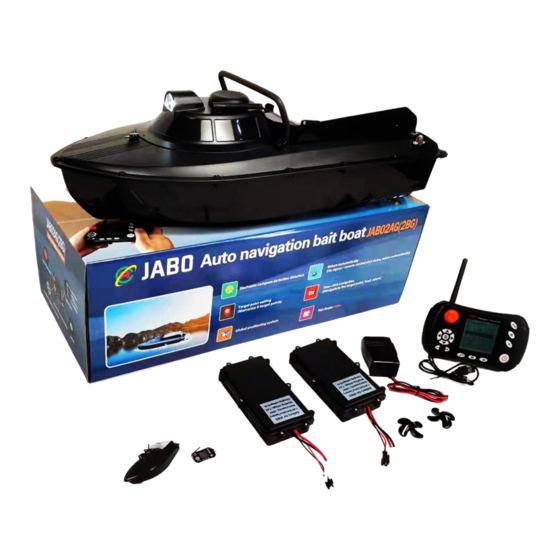

JABO-2AG/2BG Auto Bait Boat/Fish Finder
Version：2020080
Please read the instructions carefully before using this product
JABO2AG/2BG is the 4th generation product of JABO series of intelligent bait boats.
The product adopts GPS positioning and electronic compass navigation. It can store
16 target bait positions, and can automatically (manually) set the starting position.It is
a bait/fish finding robot that can auto move from start point,auto navigate to nesting
positions,auto release bait(hooks,etc),then accurately return to start point.Meanwhile a
highly sensitive fish finder and a lure light are already installed at bottom which can
detect water depth,terrain,temperature,fish size and attract fish at night.
1. It has the characteristics of precise positioning and precise navigation. For
positioning, the navigation error radius is 0-1 meters.
2. Directional and fixed-distance automatic navigation, and the navigation distance
which ranges from 20 meters to 300 meters (adjustment interval of 20 meters) can be
preset on the remote control to realize automatic navigation at a distance of 300.
