Green image GC-3002-R Quick Start Manual

Type:
Project:
Catalog#:

Main Features

• Repeater dimming signal
• One channel / Three channel / Four channel optional, max up to
24A per channel
• Constant voltage
• To receive PWM signal control
• Power repeater in series to expand output infinitely
Safety & Warnings
1
The product must be installed and serviced by qualified personnel.
2
IP20. Avoid direct sunlight and rain. When installed outdoors, please ensure it is mounted in a waterproof enclosure.
3
Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4
Please check that output voltage(s) of any LED power supplies used complies with the working voltage of the product.
5
Never connect any cables while power is on and always ensure correct connections to avoid short circuits before turning on.
6
Please ensure that the cable is secured tightly in the connector.
For update information please consult your supplier.
7

Specification Features

Model
Input Voltage
Output Current
Output Power
Dimensions
Product Size
greenimagetech.com 105 8288 N Fraser Way
Burnaby BC, V3N 0E9
GC-3002-R
12-36V DC
3/4x8A
3/4x(96-288)W
59 x 29 x 170 mm
170 mm
© Green Image Tech, LTD. All rights reserved. We reserve the right to change design, materials
T: (604) 207-9879
F: (604) 207-6992 and finish in any way that will not alter installed appearance or reduce function and performance.

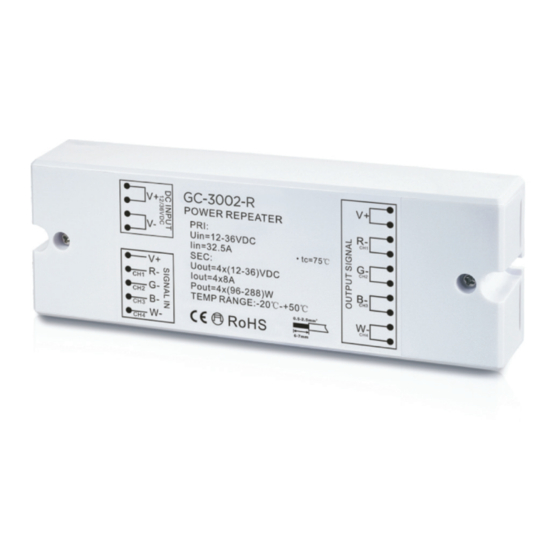

GC-3002-R
Power Repeater / Amplifier
