Summary of Contents for Allsheng SealBio-2

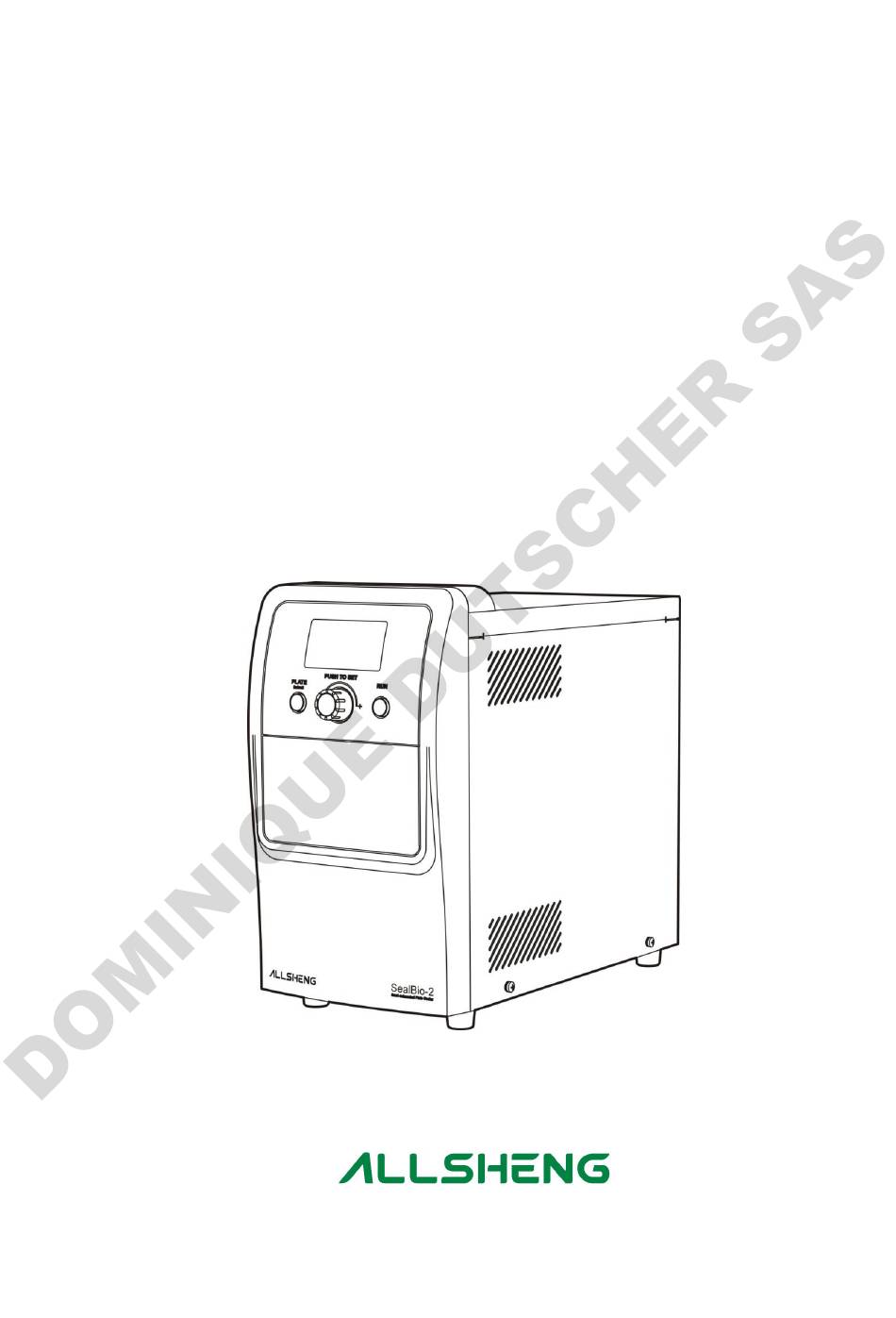

- Page 1 Operation Manual Version 2.0 SealBio-2 Semi Automated Plate Sealer HANGZOU ALLSHENG INSTRUMENTS CO., LTD.
- Page 2 If you find there is something wrong with the instrument and the Appendix, do contact the vendor or the producer. HANGZHOU ALLSHENG INSTRUMENTS CO., LTD. Address: Building 1&2, Zheheng Science Park, Zhuantang Town, Xihu District, Hangzhou, Zhejiang 310024, China Telephone: +86-571-88802738，88948289...
- Page 3 Safety Warnings and Guidelines 1. Important operation information of the security: Before the users’ operation, they should have a perfect conception of how to use the instrument. Therefore, read this manual carefully before using it. Operation before reading the manual is forbidden. Or may cause serious burn by heat even caused electric shock hazard during the runtime of instrument.
- Page 4 The instrument should be put in the place of low temperature, little dust, no water and no sun or strong lamp. What’s more, the place should be good aeration, no corrosively gas or strong disturbing magnetic field, far away from central heating, camp stove and other hot resource. Don't put the instrument in wet and dusty place.
-
Page 5: Table Of Contents
CONTENTS CHAPTER 1 INTRODUCTION------------------------------------------------------------------------------ 1 CHAPTER 2 SPECIFICATIONS-------------------------------------------------------------------------------- 2 NORMAL OPERATION CONDITIONS:---------------------------------------------------------------- 2 THE BASIC PARAMETERS AND CHARACTERISTICS------------------------------------------ 2 CHAPTER 3 BASIC INSTRUCTIONS------------------------------------------------------------------------- 3 STRUCTURE OVERVIEW---------------------------------------------------------------------------------- 3 OPERATION PANEL---------------------------------------------------------------------------------------- 4 DISPLAY-------------------------------------------------------------------------------------------------------- 4 CHAPTER 4 OPERATION GUIDE----------------------------------------------------------------------------- 5 SEAL CONDITION SETTING------------------------------------------------------------------------------5 SEAL OPERATION-------------------------------------------------------------------------------------------6 HEATING PLATE CLEANING-----------------------------------------------------------------------------7 OTHER FUNCTION------------------------------------------------------------------------------------------ 8... -
Page 6: Chapter 1 Introduction
Chapter 1 Introduction The SealBio-2 Plate Sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniform and consistent sealing of micro-plates. Unlike manual plate sealer , the SealBio-2 produces repeatable plate seals. With variable temperature and time settings, sealing conditions are easily optimised to guarantee consistent result, eliminating sample loss. -
Page 7: Chapter 2 Specifications
SealBio-2 Semi Automated Plate Sealer Operation Manual Chapter 2 Specifications Chapter 2 Specifications 1. Normal operation conditions: Ambient temperature: 10C 35C Relative humidity：≤70% Power：AC200~240V, 50Hz/60Hz 2. The basic parameters and characteristics Display OLED Temperature setting 80℃～200℃ Temperature accurate 1℃... -
Page 8: Chapter 3 Basic Instructions
SealBio-2 Semi Automated Plate Sealer Operation Manual Chapter 3 Basic Instructions Chapter 3 Basic Instructions This chapter mainly introduces the structure, operation keys, and displays of the instrument, as well as preparatory work before starting. Please read this chapter before starting when uses this instrument for the first time. -
Page 9: Operation Panel
SealBio-2 Semi Automated Plate Sealer Operation Manual Chapter 3 Basic Instructions 2. Operation panel Seal Key Setting Key Drawer Key 3. Display ─ ─... -
Page 10: Chapter 4 Operation Guide
SealBio-2 Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Chapter 4 Operation Guide Seal condition setting Temperature Counter Time Status display 1.1 Setting the seal temperature Switch on the instrument. Then press the “PUSH TO SET” key for 3 seconds. When the display of temperature is beginning to glitter, and turn the “PUSH TO SET”... -
Page 11: Seal Operation
SealBio-2 Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Appendix: Normal seal temperature and time Seal condition Seal condition Item Item setting setting Clear-Seal 170℃，2.5S Pierce-Seal 180℃，4S Peel-Seal 175℃，3S Alfoil-Seal 180℃，4S Above parameter just for reference, Sealing efficiency varies depending on the plate type used. -
Page 12: Heating Plate Cleaning
SealBio-2 Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Note: If the display temperature isn’t reach the setting temperature. The instruments cannot seal after press the “RUN” key. 2.3 After finish the seal work, press the “PLATE In/Out” key, make the drawer shut up, then power off the switch on the back of the unit. -
Page 13: Other Function
SealBio-2 Semi Automated Plate Sealer Operation Manual Chapter 4 Operation Guide Heater plate 3.5 Pushing the drawer which aim the slide on the both side into the deepest position slowly after clean up. Other function 4.1 No plate alarming When the unit is running, if no plate in the unit, it will display “No plate” and alarming. -
Page 14: Chapter 5 Troubleshooting Guide
SealBio-2 Semi-Automatic Microplate Heat Sealer Operation Manual Chapter 5 Troubleshooting Guide Chapter 5 Troubleshooting Guide Problems and actions Common problem Possible cause Action(s) Check power supply No power plugged properly On/Off switch broken Change switch No display after power on The fuse is broken Change fuse（5X20 250V 3 A）... -
Page 15: Annex:wiring Diagram
SealBio-2 Semi-Automatic Microplate Heat Sealer Operation Manual Annex Annex：Wiring Diagram （ for reference only, users won’t be informed if there is modification for this diagram ） Input Power AC 200～240V，50Hz/60Hz Fuse 250V 3A Φ5X20 Display Board Power Switch Heater Control Board... - Page 16 Note ─ ─...
