Summary of Contents for Pinnacle MS01109

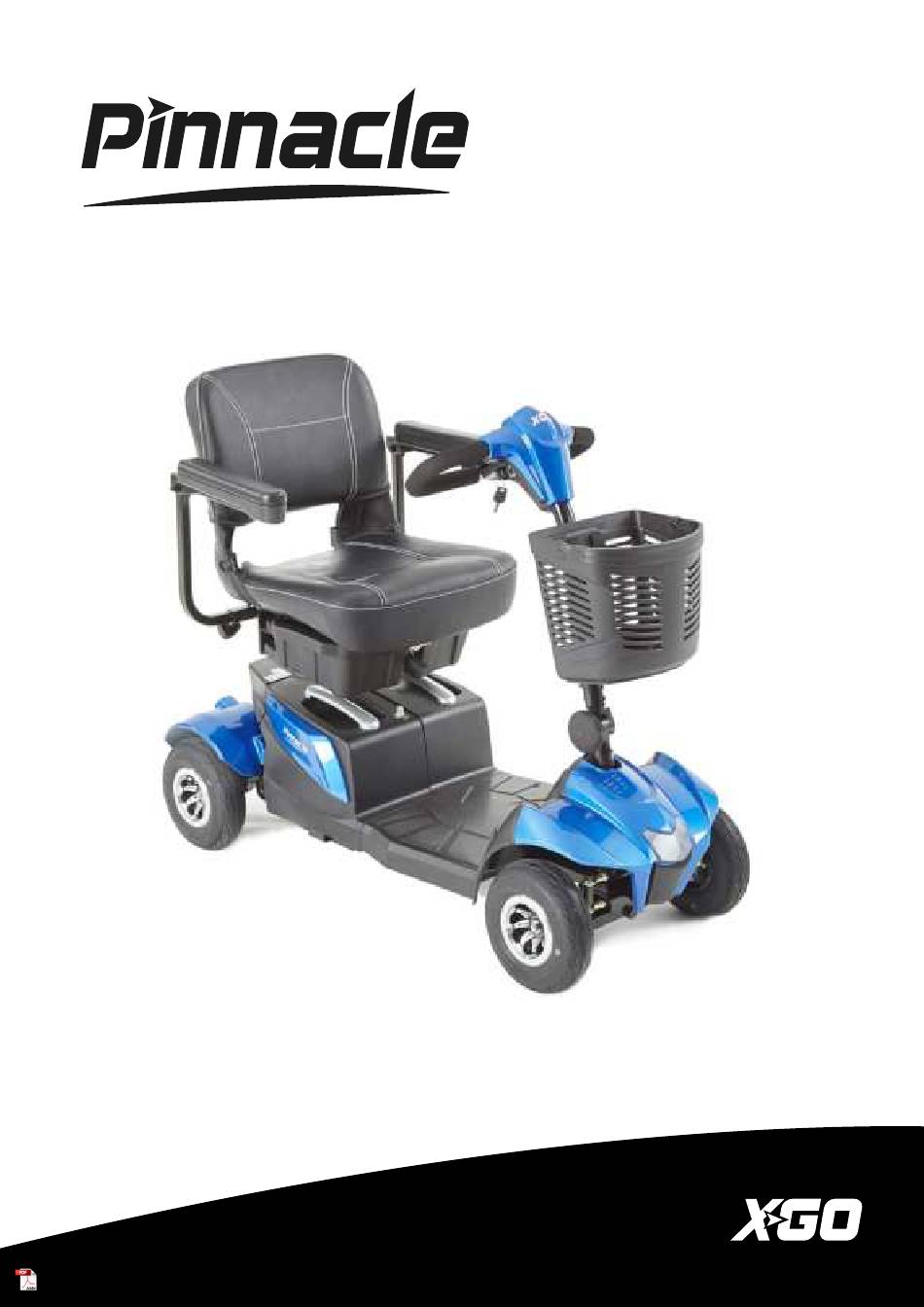

Page 1 USER MANUAL MS011 0 9 U S E R M A N U A L...
Page 2: Table Of Contents
TABLE OF CONTENTS 1.PREFACE AND INTRODUCTION 2. SAFETY NOTICE 2.1 Before driving 2.2 While driving 2.3 Labelling 2.4 EMI 3. PARTS INTRODUCTION Parts description 4. OPERATION 4.1 Control panel 4.2 How to operate your scooter 4.3 Assembling and disassembling 5. BATTERY CHARGING AND CARE 5.1 Charging the battery 5.2 Battery 6.
Page 3 1. PREFACE AND INTRODUCTION Please carefully read this owner’s manual before using the vehicle. Improper use of the vehicle could result in harm, injury or traffic accidents. Therefore, for maximum pleas- ure while using the vehicle please read this owner’s manual. »...
Page 4: Safety Notice
2. SAFETY NOTICE 2.1 BEFORE DRIVING The user needs to be familiar with the usage and operation of this vehicle before driving. Therefore, please always keep the following safety notices in mind. The same traffic rules apply to the use of this vehicle as apply to pedestrians For your safety, please therefore follow the rules that apply to pedestrians.
Page 5: While Driving
2. SAFETY NOTICE 2.2 WHILE DRIVING Please carry out daily inspections. Refer to the section entitled “DAILY CHECKING” Do not move your body out of the vehicle while moving » Such action may cause you to lose balance and risk injury from falling. »...
Page 6 2. SAFETY NOTICE Starting and Driving 1. Make sure the seat is installed properly. 2. Make sure the tiller has been secured properly. 3. Fold down the armrests so you can rest your arms on them. 4. Turn the power switch to “ON”. If necessary, turn on the headlights. 5.
Page 7 2. SAFETY NOTICE Attention 1. Do not push both RH & LH sides of the speed control lever simultaneously. This might leave you unable to control your scooter. 2. Do not turn the power switch to OFF while driving as this will lead to an emergency stop and possible risk of accident and injury.
Page 8 2. SAFETY NOTICE Please carefully read all labels on the scooter before driving it. For your future reference, do not remove them. TILLER DUMPING WARNING LABEL CE LABEL WARNING EMI LABEL FREEWHEEL LABEL SEAT PINCH WARNING LABEL P AG E 6...
Page 9: Emi
2. SAFETY NOTICE 2.4 EMI This portion of the content will provide the user with basic information that describes the problems with EMI, known sources of EMI, protective measures either to lessen the possibility or exposure or to minimize the degree of exposure, and suggested action should unexpected or erratic movement occur.
Page 10: Parts Introduction
3. PARTS INTRODUCTION Parts Description 6. Under-seat Storage Box 1. Charger Socket 10. Connecting Device 2. Circuit Breaker 7. Width Adjustable 11. Front Wheel Lock knob Armrests Knob 3. Tiller Adjust Knob 12. Power Switch 8. Freewheel Lever 4. Seat Rotate Lever 9.
Page 11: Operation
4. OPERATION 4.1 CONTROL PANEL 1. Battery Level Indicator 2. Speed Dial 3. Horn 4. Wigwag Paddle 5. Headlight button 4.2 HOW TO OPERATE YOUR SCOOTER Turn the key to power ON or OFF (ON) : Power is turned on (OFF) : Power is turned off Speed Dial Press the slowest or fastest setting...
Page 12 4. OPERATION Horn Button Press the horn button to sound the horn. Release the button to stop the horn. How To Set Freewheel Mode The motor on the scooter can be disengaged to allow the scooter to be pushed. Drive Mode – To put the scooter in to “drive” mode, push the freewheel »...
Page 13 4. OPERATION Braking Electro-magnetic brake: Release the speed control lever completely, and the » electromagnetic brake will be activated automatically, and the scooter will stop. Parking After stopping, turn the main key to OFF and remove the key. The lights will turn »...
Page 14 4. OPERATION USB Charging Hole Connect the USB cord to the charging hole to charge your electronic devices How to re-position the seat You can swivel the seat from side to side locking it in various positions using the lever cirlcled in the image.
Page 15 4. OPERATION How to use the Under-seat storage To operate under-seat storage Lift up slightly on the latch on the side of the under-seat storage bin and swing » the under-seat storage bin out and away from the travel chair. To close the under-seat storage bin, push the under-seat storage bin toward the »...
Page 16: Assembling And Disassembling
4. OPERATION 4.3 ASSEMBLING AND DISASSEMBLING Assembling The Scooter No tools are required to disassemble or assemble your scooter. 1. Place the freewheel mode lever in the drive position. 2. Set the rear section in the up position and make sure the hook for the front section is connected to the axle of the rear section.
Page 17 4. OPERATION Please follow the steps. 1. Make sure the tiller is raised before reassembling the scooter. 2. Turn key switch to “OFF”. 3. Place the free wheel mode lever in the drive position. 4. Take off the basket. 5. Push the Seat Rotate Lever whilst pulling up on the seat to remove. 6.
Page 18 4. OPERATION 1. Remove the seat by pulling the seat rotate lever. 2. Pull up the wheel lock knob to fix the front wheel. 3. Pick up the battery pack and remove it from the scooter. PAG E 1 6...
Page 19 4. OPERATION 4. Loosen the tiller adjustment knob and fold down the tiller and re-tighten knob. 5. Pull the connecting device upward to the rear section and stand upright. P AG E 17...
Page 20: Battery Charging And Care
5. BATTERY CHARGING AND CARE 5.1 CHARGING THE BATTERY Follow the procedure below step by step: 1. Turn the power switch to (OFF) 2. Connect the charger’s power cord into the power outlet. 3. Open the charging socket cap on the battery pack.
Page 21 Attention - Please follow the rules below to avoid accidents while charging. 1. Please use the Pinnacle charger only and recharge the battery to its full capacity every time. You may damage the battery and scooter if you use a charger, which is not to the correct specification.
Page 22 5. BATTERY CHARGING AND CARE 5.2 BATTERY Do not expose the battery to temperatures below -10°C or above 50°C when » charging or storing the vehicle. Under the above temperature range can cause the battery either to freeze or over heat. This will damage the batteries and shorten their life.
Page 23 If the batteries are contaminated by water, battery acid, dust or other substances, they will discharge quickly. The batteries supplied with the Pinnacle scooter are sealed and as such are maintenance free with no risk of battery leakage. Please follow the steps below to clean the battery.
Page 24: Battery
6. INSPECTION & MAINTENANCE 6.1 INSPECTION Clean the scooter with a damp cloth and dust down approximately once a week » to preserve the appearance of the scooter. Adjust the tiller height and return to the original position and swivel the seat »...
Page 25 6. INSPECTION & MAINTENANCE REGULAR CHECKING RECORD (6.2) YEAR YEAR Service Dates Service Dates Controller Upholstery On/off switch Seat Controller Lever Back Braking Armrests Recharge point Electrics Batteries Connections condition Levels Lights Test run Connections Discharge test Forwards Wheels and Tyres Reverse Wear Emergency stop...
Page 26 6. INSPECTION & MAINTENANCE Suggestion Ask for help from your scooter dealer to inspect or replace the fuse, since the tiller shroud has to be removed first before you can replace the fuse. Tyres The condition of the tyres depends on how you drive and use your scooter. Inspecting tire tread »...
Page 27: Storage
6. INSPECTION & MAINTENANCE 6.4 STORAGE Make sure the vehicle is stored under the following circumstances: Make sure the seat is set in the “Forward”position » Make sure the Power switch is turned to OFF » Suggestion Please store the scooter in a location where it is away from the direct sunlight, rain, or dew.
Page 28 The seat turns when in Ensure that the wigwag paddle is released. » operation Switch the scooter off and on. » Recharge the batteries. » If problem persists, contact your Pinnacle dealer. » PAG E 2 6...
Page 29: Trouble Shooting And Specification
7. TROUBLESHOOTING & SPECIFICATION SPECIFICATIONS X-GO Pinnacle Item Dimension (L x W x H mm) 1190 mm x 560 mm x 980 mm 75.6 kg / 166.5 lbs Weight w/ battery Without battery 52.2 kg / 115 lbs Battery 34AH...
Page 30 9. WARRANTY Quality / Warranty Declaration Products are to be fit for purpose and of excellent quality and performance. For valid warranty claims X-GO will, at their discretion, replace / repair / refund items mutually agreed to be defective. The scooter’s warranty is as follows: »...
Page 31 NOTES P AG E 29...
Page 32 NOTES P AG E 30...
Page 33 NOTES P AG E 31...
Page 34 Careco UK Limited, Hubert Road, Brentwood, Essex, CM14 4JE...
