Summary of Contents for Summit HM2-08-SBC

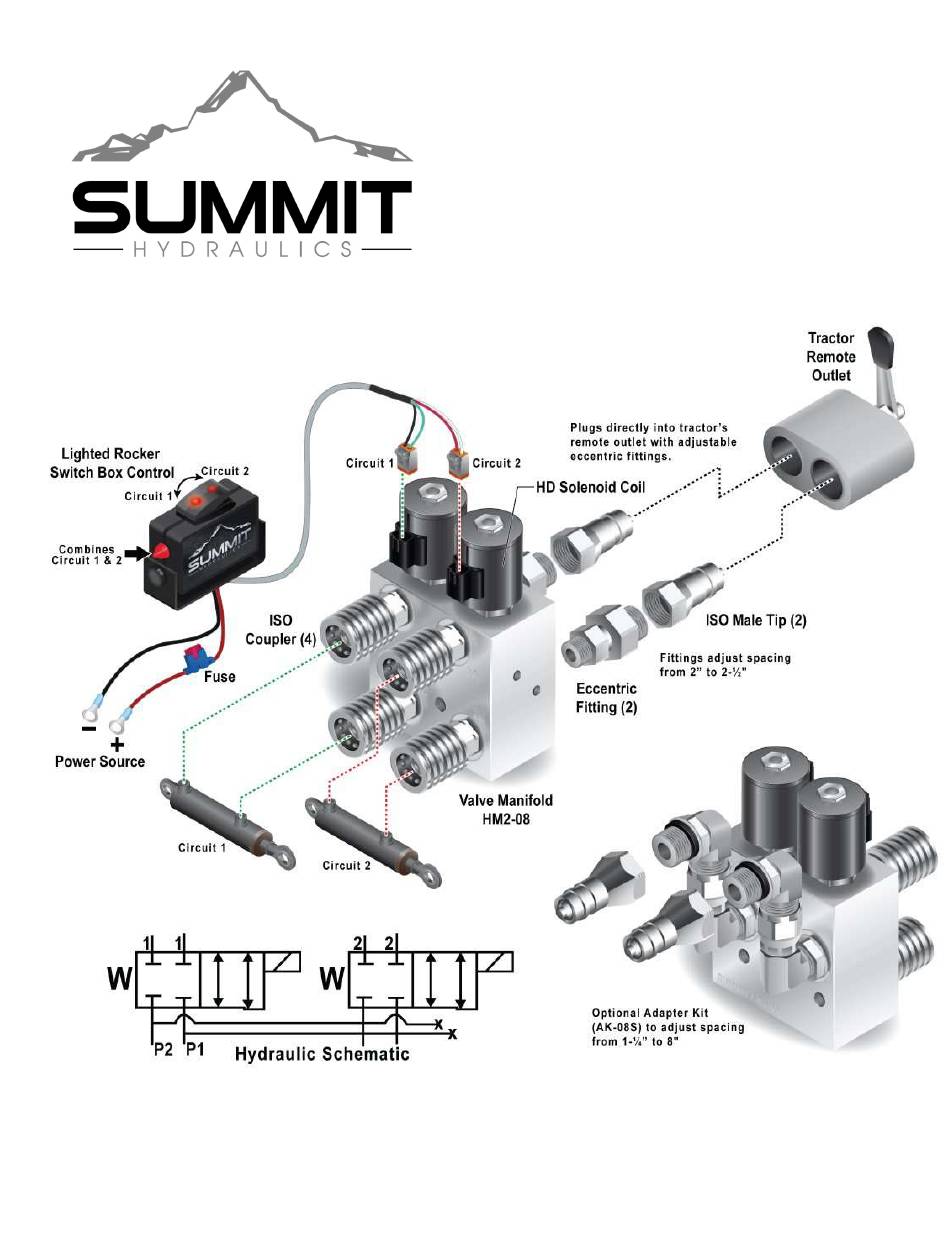

- Page 1 Hydraulic Multiplier Installation Guide Model: HM2-08-SBC Summit-Hydraulics.com...
- Page 2 1. Adjust male tips and insert into the remote outlet 2. Push valve firmly into place using the SCV release lever where necessary. 3. Tighten jam nuts to 35 ft-lbs once valve is seated in SCV Install directly to Tractor’s SCV or Remote outlet Summit-Hydraulics.com...
- Page 3 The Red Push Button toggle switch on the side of the switchbox allows you to “combine” 1 and 2, so you can operate both circuits simultaneously. The valve is designed be run continuously or intermittently. Summit-Hydraulics.com...
- Page 4 If the problem changes to the opposite circuit, the cartridge may be some contamination. Visually inspect the cartridge, if no contamination is found the cartridge could be bad and need to be replaced. Summit-Hydraulics.com...
