Summary of Contents for Benewake TF02-Pro-W

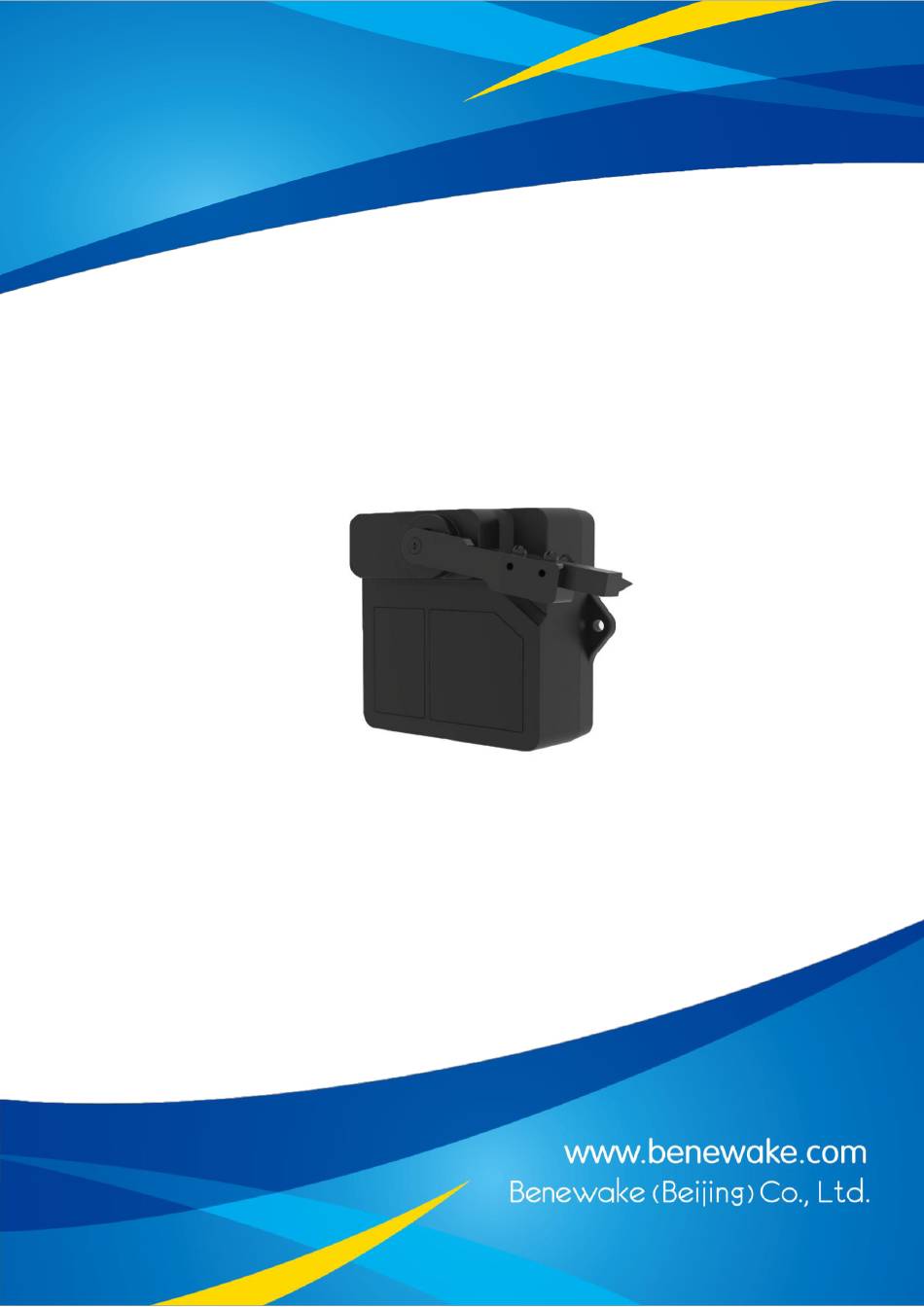

- Page 1 SJ-PM-TF02-Pro-W A00 Product Manual 北醒（北京）光子科技有限公司 TF02-Pro-W Product Manual Page1...
- Page 2 Address: No.28, Xinxi Road, Haidian District, Beijing, PRC Copyright The Copyright of this document is protected. All the rights involved herein belong to Benewake (Beijing) Co. Ltd. Any copy activity of this document, no matter in whole or in part, should be...
- Page 3 北醒（北京）光子科技有限公司 Foreword Dear users, Thanks for choosing Benewake products, and it’s our pleasure to help you to solve any technical question. In the purpose of offering a better operation experience to you, we hereby write this manual for an easier and simpler operation of our product, hoping to better solve the common problems you maybe meet.
- Page 4 SJ-PM-TF02-Pro-W A00 Product Manual 北醒（北京）光子科技有限公司 Catalog Attentions ............... 5 1.1 About this Manual ....................5 1.2 Usage of Product ....................5 1.3 Conditions with Potential Malfunction ............... 5 Physical Interface ..............6 2.1 Description about Line Sequence ..............6 2.2 Electrical Characteristics ..................6 Appearance and Structure ............
- Page 5 SJ-PM-TF02-Pro-W A00 Product Manual 北醒（北京）光子科技有限公司 1 Attentions 1.1 About this Manual This manual provides all the essential information during the usage of this product. Please carefully read this manual and make sure that you fully understand everything herein.
-
Page 6: Electrical Characteristics
SJ-PM-TF02-Pro-W A00 Product Manual 北醒（北京）光子科技有限公司 2 Physical Interface 2.1 Description about Line Sequence Table 1 The Function and Connection Description of each pin Color Function Comment +4.8~5.5V Power supply White Receiving Green Transmitting Black Ground 2.2 Electrical Characteristics This product has no overvoltage nor polarity protection, so please make sure that connection and power supply are normal. - Page 7 Dust proof grade Water proof grade Protection grade of TF02-Pro-W: IP5X, IP dust proof: Grade 5, IP water proof: 0. Grade 5 of IP dust proof represents Protected from limited dust ingress, but the ingress dust will not affect the equipment working.
- Page 8 SJ-PM-TF02-Pro-W A00 Product Manual 北醒（北京）光子科技有限公司 4 Communication Protocol and Data Formats 4.1 Serial port Communication Protocol TF02-Pro-W adopts the serial port data communication protocol, as given in Table 3. Table 3 Data Communication Protocol Communication interfce UART Default baud rate...
- Page 9 Before setting the relevant parameters of TF02-Pro-W, user needs to establish the connection between TF02-Pro-W and PC at first. User can send the relevant configuration-related instructions to the product via TF02-Pro-W PC software or other serial port debugging software. Important: Configure the parameters in the following three steps.
- Page 10 SJ-PM-TF02-Pro-W A00 Product Manual 北醒（北京）光子科技有限公司 Table 5 General Parameter Configuration and Description Parameter Command Remark Use this command to start the wiper at any time during the Start the wiper AA 55 F0 00 00 00 00 B0 default mode EE：dust removal cycle (Unit: min) high 8 bits，FF：dust...
-
Page 11: Technical Support
Q1: Is TF02-Pro-W available with other power supply voltage? A1: Sorry, it is not available for the time being. The Standard power supply of TF02-Pro-W is 4.8V~5.5V. If you have any further requirement, please contact our sales to consult a customization design matter.
