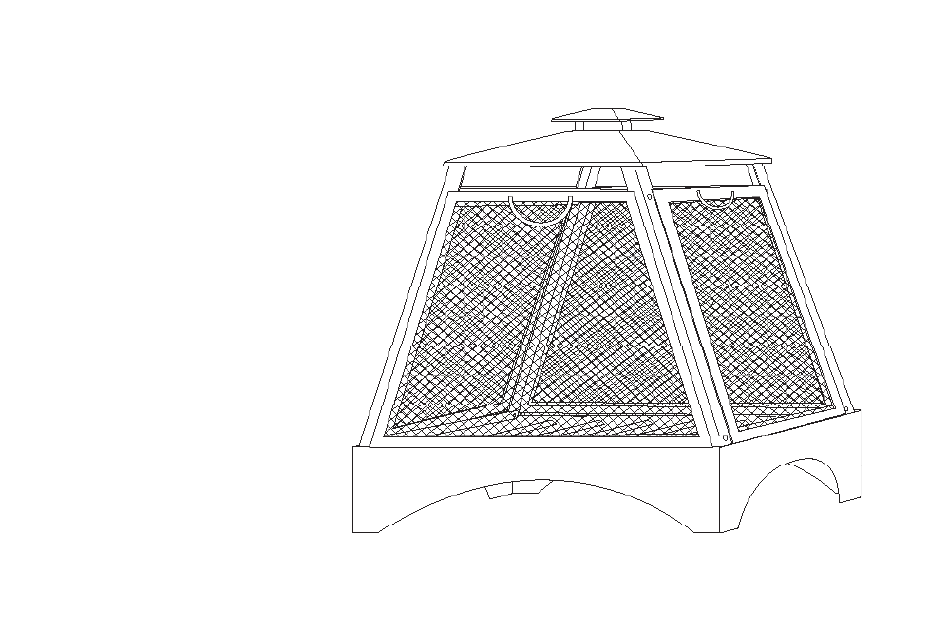

- Page 1 Pagoda Fireplace model # AD283C >> assembly instructions...
- Page 2 before you begin 1. Please read and follow ALL instructions before assembling or using this product, particularly the safety statements. Failure to follow instructions and warnings could result in damage to property or serious injury. 2. Check product for damaged or missing parts. Call 1-800-230-6530 or email customerservice@asiadirectinc.net to order replacement parts.
-
Page 3: Table Of Contents
table of contents hardware parts list safety warnings assembly care instructions warranty... -
Page 4: Hardware
hardware (H1) x 8 (H2) x 8 tools required for assembly (not included): Phillips head bolt Phillips head screwdriver Adjustable wrench... -
Page 5: Parts List
ITEM DESCRIPTION QUANTITY roof assembly corner frame short frame support bar long frame support bar screen section base storage cover... -
Page 6: Safety Warnings
safety warnings and instructions WARNING WARNING READ AND FOLLOW ALL SAFETY • Outdoor use only. Never use in enclosed area. Use in STATEMENTS, WARNINGS, unventilated areas will endanger your life. ASSEMBLY INSTRUCTIONS AND • Do not use this unit on or near combustible surfaces or USE &... -
Page 7: Assembly
step 1. (H2) x 8 (H1) x 8 Phillips head bolt 1. Connect tops of two Corner Frames (B) together with Short Frame Support Bar (C). 2. Loosely secure bar to Frames with two Bolts (H1) and two Nuts (H2). LOOSELY HAND TIGHTEN NUTS ONLY. (Completely tightening hardware may make it difficult to complete next step in assembly). - Page 8 step 2. 1. Place assembled frame on Base (F). 2. Place Roof Assembly (A) on frame.
- Page 9 step 3. 1. Place Screens (E) on each side of frame, inserting screen tabs into base tab notches.
-
Page 10: Care Instructions
care instructions • Remove properly cooled ashes from bottom of fire bowl after each use. • Store fire pit in dry location out of the weather and elements when not in use for extended periods of time. • As with any outdoor grill, seasonal maintenance is required to return painted steel surfaces to original appearance. Remove any surface rust with sandpaper or steel brush and repaint with grill paint suitable for high-temperature surfaces after each season of use. -
Page 11: Warranty
Asia Direct, Inc. (“Manufacturer”) warrants that for a period of ninety (90) days from the date of original retail purchase, its product will be free from defects in material and workmanship. Manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid, by the consumer, for review and examination.
