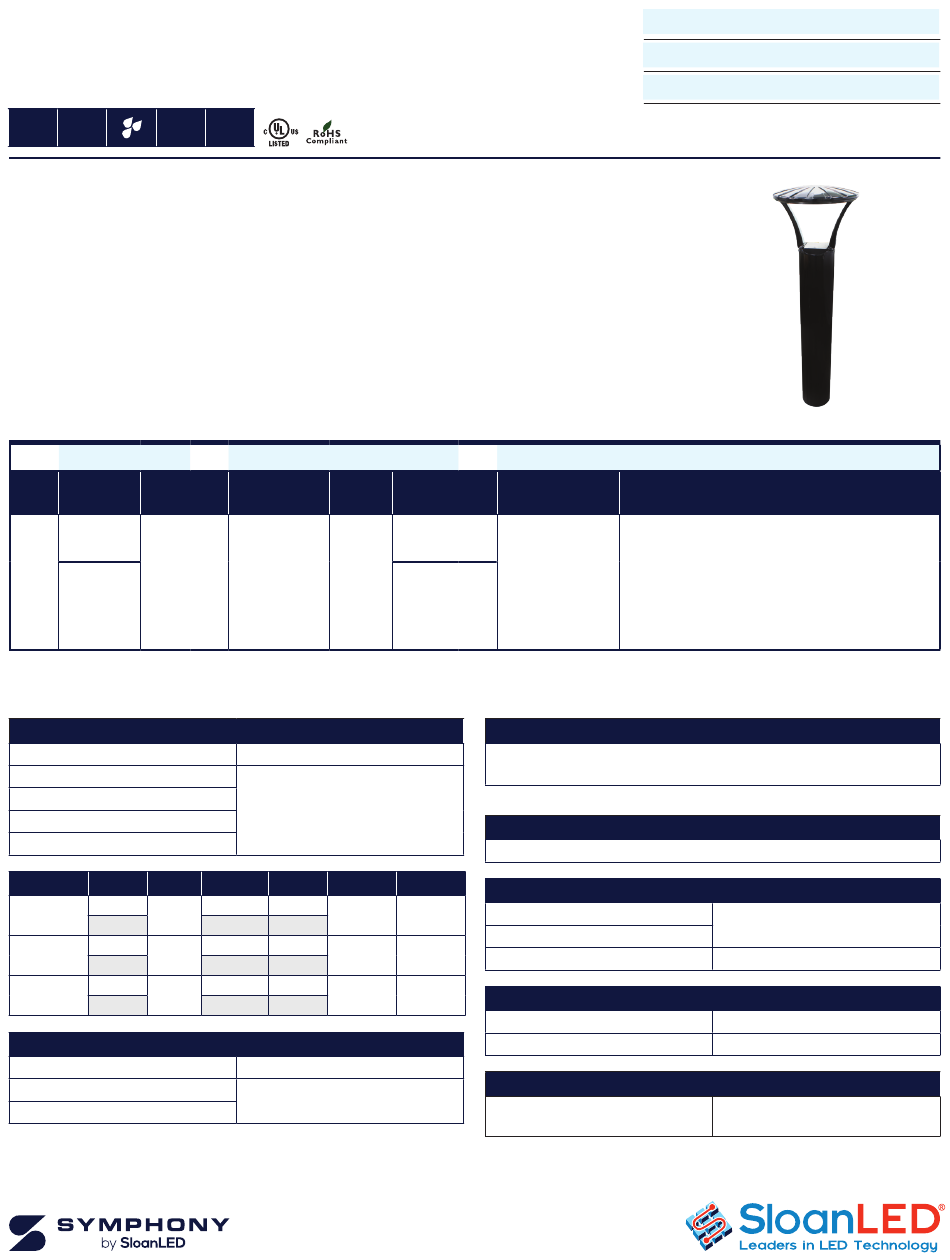

SloanLED Symphony Bollard SYM-BD6 Quick Start Manual

Symphony
Bollard
10Y P+ EM

Key features

• Modern design blends seamlessly with the architectural
landscape and other Symphony products
• Performance optics maximize uniformity and spacing
• Polycarbonate lensing help to protect your investment
• 20 and 30 W options in both asymmetric and Type V distributions
• Two standard finishes plus custom colors available

Product Option Matrix

Example: SYM-BD630U-850BKFL-D1PCEM
SYM-
Family Wattage
BD6 20
Dome top 20 W
30
BT6
30 W
Post top

Quick Reference

Input voltage: 120-277 V
System Watts: 20 W, 30 W
Dimming: 0-10 VDC standard
Surge protection: 4 kV
THD: <20%
Model Sys power Voltage
20 W
SYM-BD6
120-277
30 W
20 W
SYM-BT6
120-277
(Type V)
30 W
20 W
SYM-BT6
120-277
(Asymmetric)
30 W
Efficacy: >120 lm/W
CRI: >80
Distribution : Asymmetric & Type V
¤
† Based on 5000 K CCT.
‡ Input current +/-10% (A).
§ Performance+ Turnkey Service Warranty applies to U.S. & Canada installations ONLY.
¶ Mounting hardware ships separately.
¤ BT6 (Post top) only.
DIM
U-8
Color
temp. (CCT) Finish
30 BK
Δ
3000 K Black
40 BZ
Δ
4000 K Bronze
50 CC
*
5000 K Custom

Electrical

◊
Power factor: >0.9
Operating temperature:
BF6 & BD6: -40° F to +122 F
(-40° C to +50° C)
BT6: -4° F to +104 F
(-20° C to +40° C)
Current Lumens Efficacy
‡ †
0.17 / 0.07 2,286
113 lm/W
0.25 / 0.11 3,412
0.17 / 0.07 1,494
82 lm/W
0.25 / 0.11 2,230
0.17 / 0.07 861
48 lm/W
0.25 / 0.11 1,285

Performance

Color temps (CCT): 3000 K, 4000 K, 5000 K
Life rating: 50,000 hours reported,
150,000 hours calculated per TM21-11

Product description

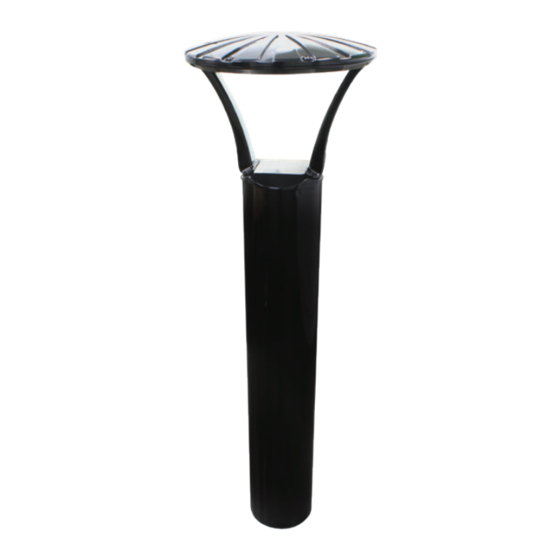

Symphony Bollard luminaires
combine high-performance with
modern aesthetics, enhancing
the architectural landscape by
day and providing a guiding
light at night. The bollard series
complements other Symphony
products providing seamless
continuity across all architectural
exterior applications.
-D1
Radiation
pattern Control
FL (blank)
Full lens None
PC
AS
Photocell
Asymmetric
V
Type V

Product Accessory

Bollard anchor bolt assembly
ABTBOL
◊
Includes bolts, nuts, washers, and template.
◊ Mounting hardware ships separately.
BUG
Housing: Aluminum alloy
1, 3, 3
Lens materials: Polycarbonate
1, 0, 1
Finish process: Powder coat
1, 0, 1
LM79 and LM80 available
10-year limited warranty
Emergency
(blank)
None
EM
90 min., 8 W
* RAL ID must be approved for Custom Color.
Δ Black (RAL-9004-BK), Bronze (RAL-8019-BZ).

Mounting

¶
Grade mount with embedded anchor bolts

Construction

cUL Listed for Wet Locations
Finishes: Black

Documentation

cULus

Warranty

Turnkey Service Warranty
PAGE 1 OF 3
Location rating:
, Bronze , Custom
¶ ¶ *
RoHS
IES files available
2-year Performance+
§
