Giant 22980 Quick Start Manual

Models

22980 - Unloader
22980R - Regulator
Item Part# Description
1 08500 Casing
2 06880 Spring Guide
3 07381 Inner Hexagon Screw
4 08503 Inner Hexagon Screw
5 08504 Stud Bolt
6 08505 Hand Wheel
7 08506 Hexagon Nut
7A 08882 Washer
8 08507 Disc
9 08508 Bearing Part I
10 12323 Axial Bearing
11 08510 Bearing Part II
12 12218 Spring Plate
13 06714 Centering Disc
14 06687 Piston
+0
15 06715 Seal Support
+0
16 06713 Hexagon Nut
+0
17 06716 Cylinder
18 12004 O-Ring
+0
19 08519 Spacer Ring
17 06716 Cylinder
20 08520 Guide Ring
21 07392 Support Ring
+0
21A 06718 Support Ring
+0
22 07391 Seal Pack
+0
22A 06717 Seal Ring
+0
23 08523 Valve Seat (22980)
+
23 08523 Valve Seat (22980R)
0
24 08524 Valve Plug
25 07489 O-Ring (22980)
+
25 07489 O-Ring (22980R)
0
26 12057 O-Ring (22980)
+
26 12057 O-Ring (22980R)
28 08530 Spacer Pipe (22980)
29 08531 Valve Plate (22980)
+
30 12216 Valve Spring (22980)
+
30 07423-0100 Plug, 22980R (not shown) 4
32 06934 Seal, 22980R (not shown) 4
09543 Unloader Repair Kit
+
09547 Regualtor Repair Kit
0

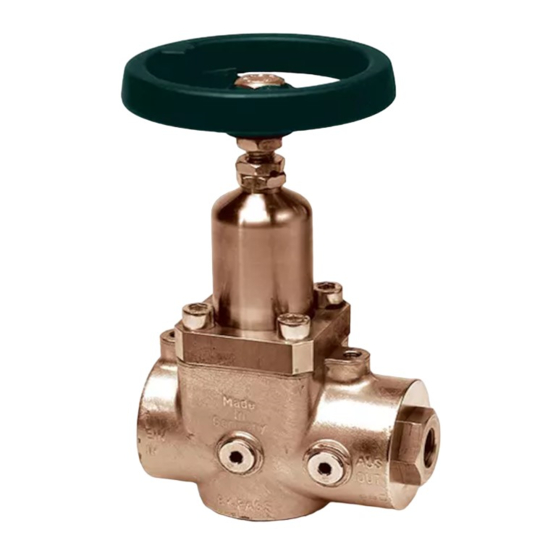

Industrial Unloader/Regulator
Quantity
1
1
4
1
1
1
3
2
2
1
1
1
18
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
2
1
2
1
1
1
1
(High Pressure)

Operating Specifications

U.S.
Max. Pressure: 7250 PSI
Maximum Flow: 26.4 GPM
Minimum: 2.1 GPM
Maximum Temperature: 160
o
Inlet Port:
Outlet Port:
Bypass:
Weight:
Metric
(500 bar)
(100 l/min.)
(8.0 l/min.)
F 70°C
3/4" BSP
1/2" BSP
1/2" BSP
15.4 lbs.
