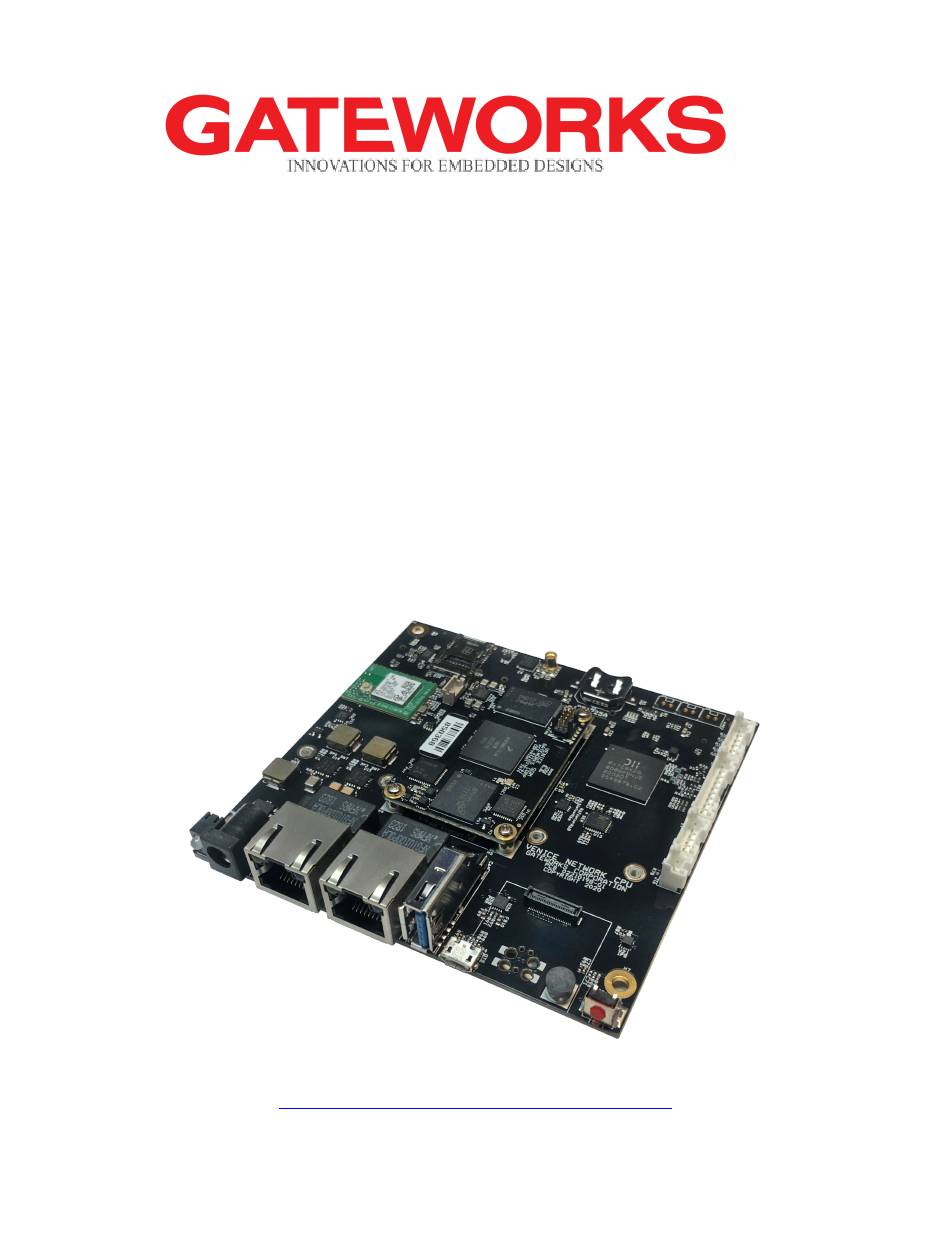

- Page 1 Venice GW7300 Single Board Computer Operating Manual Document #11000556 Revision 03 09 June 2021 Copyright 2021 Get Started Quickly www.gateworks.com/quickstart...
-
Page 2: Table Of Contents
Digital I/O Serial I/O Analog Input System Reset I2C Two Wire Interface SPI Serial Peripheral Interface Gateworks System Controller Real Time Clock with Battery Backup System Temperature and Voltage Monitor Configuration EEPROM Fan Speed Control Additional System Level Functions Battery Backup 3-Axis Accelerometer/Magnetometer Optional Laird Sterling 802.11b/g/n WiFi &... - Page 3 Optional USB Header (J23) USB OTG Port (J24) Test Header (J25) Optional Pushbutton Switch Connector (J26) JTAG Programming and Serial Console (SOM J4) SOFTWARE Getting Started Gateworks System Controller JTAG Programming Manufacturer's Website Links / Support Mailing List SPECIFICATIONS Electrical Environmental Mechanical...
-
Page 4: Introduction
1. INTRODUCTION 1.1. Product Description The GW7300-00 is a member of the Gateworks 7th generation Venice family of single board computers targeted for small embedded applications such as IoT Gateways, Machine Learning, Unmanned Aerial Vehicles (UAV) equipment, digital signage, and robotics. -
Page 5: Ordering Options - Standard Configuration
1.4. Ordering Options – Accessories Order Code Description GW11033 USB JTAG Programmer 10-pin Kit (Contains GW16099) GW10054 Gigabit PoE Injector GW10030 24V Supply GW11049 Development Kit, Includes GW7300 SBC GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 5 of 34... -
Page 6: Feature Locations
Venice Single Board Computer Operating Manual 1.5. Feature Locations Top Side Features GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 6 of 34... - Page 7 Venice Single Board Computer Operating Manual Bottom Side Features GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 7 of 34...
-
Page 8: Functional Blocks
Venice Single Board Computer Operating Manual 1.6. Functional Blocks The functional block diagram is shown below followed by a detailed description of each major functional block. Functional Block Diagram GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 8 of 34... -
Page 9: Armv8 Processor
● Slot J10 Supports PCIe, USB 2.0, SIM ● Slot J12 can support PCIe and USB 2.0. ● Slot J14 can support PCIe and USB 2.0. GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 9 of 34... -
Page 10: Pcie Socket Reset & Wifi Disable
The Mini-PCIe sockets support individual software programmable resets and shared WiFi disable signals. The reset signal is controlled through the processor PCIe interface and the WiFi disable signal is controlled through the Gateworks System Controller. Micro-SD and Nano SIM Expansion A combined Micro-SD and Nano SIM socket extends the functionality of the SBC. -
Page 11: Usb Ports
The last UART is used for the Bluetooth on the optional BLE/WiFi module. Analog Input There are two analog inputs that are available through the Gateworks System Controller. The 0 to 5V analog input is divided by two. System Reset The system reset signal is connected to the Gateworks System Controller pushbutton input and supports all of the associated features. -
Page 12: Spi Serial Peripheral Interface
Gateworks System Controller The GSC Gateworks System Controller is a custom battery-backed micro-controller designed by Gateworks to implement many of the embedded features found on the board. This includes features such as real time clock with battery backup, system temperature and voltage monitor, configuration EEPROM, and digital I/O. Software information can be found at http://trac.gateworks.com/wiki/gsc... -
Page 13: Configuration Eeprom
Battery Backup The Gateworks System Controller must be powered at all times if support features such as continuous real time clock, and programmable hardware sleep and wake-up are required. This power is supplied by a coin cell battery when the SBC is powered down. -
Page 14: 3-Axis Accelerometer/Magnetometer
● https://www.st.com/en/mems-and-sensors/lis2de12.html ● http://trac.gateworks.com/wiki/accelerometer Optional Laird Sterling 802.11b/g/n WiFi & Bluetooth Radio An optional Laird Sterling LWB 2.4GHz WiFi & Bluetooth Radio is soldered onto the board. It is based on Broadcom BCM4343W SoC. The WiFi radio is a 1x1 MIMO and supports 802.11b/g/n. -
Page 15: Jtag Programming Port
Label Function 3.3V Primary voltage rail is active Programmable using i.MX8M GPIO[5]:DIO[4] and GPIO[5]:DIO[5]and digital I/O signal Surface Mount Status LED Functionality GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 15 of 34... -
Page 16: Power Architecture
The input voltage range is 36-57V as defined by the PoE specification. The power and ground connections include full wave bridge rectification so that they can be connected on any two data pairs. More PoE information is available on the Gateworks wiki here: http://trac.gateworks.com/wiki/poe Passive Power over Ethernet One RJ45 Ethernet jack supports Passive Power over Ethernet. -
Page 17: Switching Dc/Dc Regulators
Protects against short circuits Controlled startup Reduces component stress and power surges Common mode input filter Reduces emissions for agency certification Switching DC/ DC Regulator Features GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 17 of 34... -
Page 18: Connectors
The 50 Ohm MMCX antenna connector (standard loading option) is a vertical mount Molex 73415-2061, or equivalent. The 50 Ohm U.FL connector (optional) is a vertical mount Sunridge MCBG-ST-00T, or equivalent. GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000... -
Page 19: Battery Coin Cell Socket (J3)
The mating connector is a JST PAP-06V-S, available from Digi-Key as part number 455-1490-ND. The mating connector pins are JST SPHD-002T-P05, available from Digi-Key as part number 455-1313-1-ND. GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000... -
Page 20: Fan Speed Control (J8)
DF13-4S-1.25C, available from Digi-Key as part number H2181-ND. The mating connector pins are Hirose DF13-2630SCF, available from Digi-Key as part number H9992CT-ND. Signal Gateworks System Controller - Fan Control Output Gateworks System Controller - Tachometer Input Ground Fan Speed Control Connector... - Page 21 Venice Single Board Computer Operating Manual Peripheral I/O Connector GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 21 of 34...
-
Page 22: Mini-Pcie (J10 & J12 & J14)
SOM would be removed and the user would interface with J11 and J13 directly. If more information is required, please contact Gateworks support. Software Programmable RS232/422/485 Serial Port (J15) A RS232/422/485 serial port is available through a 5-pin header in a 1x5 configuration with 2mm spacing. -
Page 23: External Tamper Switch (J16)
2mm pin spacing. The mating connector is a JST PAP-02V-S, available from Digi-Key as part number 455-1486-ND. The mating connector pins are JST SPHD-002T-P05, available from Digi-Key as part number 455-1313-1-ND. Signal Gateworks System Controller Tamper Switch Input Ground External Tamper Switch Connector GATEWORKS.COM... -
Page 24: Mipi Csi And Dsi Header (J17)
0.156-inch pin spacing as an ordering option. The mating connector is a JST B2P-VH-FB-B. The mating connector pins are a JST SVH-21T-P1.1. Signal 8VDC to 60VDC Ground Optional Input Power Connector GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 24 of 34... -
Page 25: Input Power Barrel Jack (J19)
Section 3. The RJ45 connector can be replaced with an 8-pin dual-row 2mm header as an ordering option. Signal Passive Power TX1+/RX1+ PoE V+ TX1-/RX1- PoE V+ TX2+/RX2+ PoE Ground TX3+/RX3+ PoE V+ TX3-/RX3- PoE V+ GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 25 of 34... -
Page 26: Usb Type-A Socket (J22)
The OTG USB port is available through a standard Micro-B connector. Signal USB OTG Switched 5V USB 2.0 OTG Data- USB 2.0 OTG Data+ USB 2.0 OTG Detect Ground USB 3.0 Type-A Connector GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 26 of 34... -
Page 27: Test Header (J25)
Venice Single Board Computer Operating Manual Test Header (J25) A test header is at J25. This is for internal Gateworks use. Please contact Gateworks technical support with any further questions. Optional Pushbutton Switch Connector (J26) The pushbutton switch signal can be applied through an optional latching 2-pin connector in a 1x2 configuration with 2mm spacing. -
Page 28: Software
3.2. Gateworks System Controller The GSC Gateworks System Controller is a custom battery-backed micro-controller designed by Gateworks to implement many of the embedded features found on the board. A complete list of GSC features is shown in the table below. The GSC communicates with processor I2C interface and the GPIO signal configured as an interrupt. -
Page 29: Manufacturer's Website Links / Support Mailing List
Venice Single Board Computer Operating Manual 3.4. Manufacturer's Website Links / Support Mailing List This section provides relevant links. Gateworks is committed to open source software. Links Product Change Notification (PCN): http://trac.gateworks.com/wiki/pcn. Gateworks Quick Start: http://www.gateworks.com/quickstart Gateworks Board Support Packages: http://trac.gateworks.com... -
Page 30: Specifications
105 x 100.0mm (4.1 x 3.93in) Dimensions, Height Top Side 15.5mm (0.61in) Bottom Side 6mm (0.24in) Total including circuit board 23mm (0.91in) Weight 4 ounces (113g) GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 30 of 34... - Page 31 Venice Single Board Computer Operating Manual Note a 3D model is available for download on the Gateworks website on the respective product page under the Documentation tab. Top Side with Mechanical Dimensions GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401...
- Page 32 Venice Single Board Computer Operating Manual Bottom Side GATEWORKS.COM 3026 S. Higuera St San Luis Obispo, CA 93401 P:(805)781-2000 32 of 34...
-
Page 33: Customer Support
Software is licensed AS IS. The liability of Gateworks under this agreement is limited to a refund of the purchase price of the product. In no event shall Gateworks be liable for loss of profits or other damage. 5.4. Return for Repair You must obtain a Returned Material Authorization (RMA) number before sending any product to Gateworks. -
Page 34: Life Support Policy
Address: 3026 South Higuera Street, San Luis Obispo, CA 93401 5.5. Life Support Policy Gateworks products are not authorized for use as critical components in life support devices or systems without the express written approval of the president of Gateworks Corporation.
