FIREPIT
ITM./ART.#: FOP-210020
MODEL#: F210020-A1
ANS Z21.97 CSA 2.41-2017
Outdoor Decorative Gas Appliances
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire
department.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
DANGER
WARNING:
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, car or home.
WARNING: For Outdoor Use Only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
WARNING
Do not store or use gasoline, or other
flammable vapors and liquids,in the
vicinity of this or any other
appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Depot F210020-A1
Summary of Contents for Home Depot F210020-A1

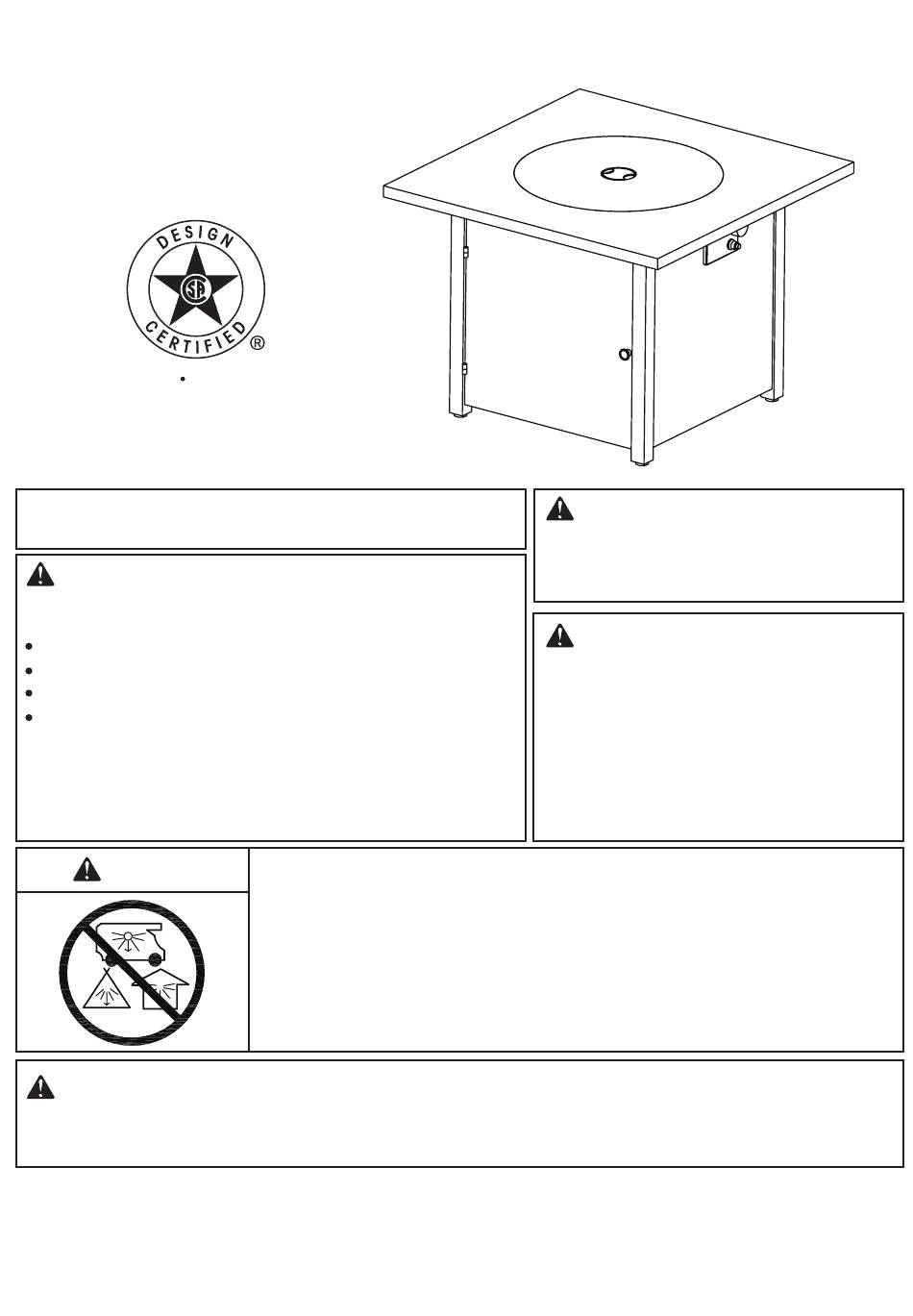

- Page 1 FIREPIT ITM./ART.#: FOP-210020 MODEL#: F210020-A1 ANS Z21.97 CSA 2.41-2017 Outdoor Decorative Gas Appliances INSTALLER: Leave this manual with the appliance. WARNING: For Outdoor Use Only. CONSUMER: Retain this manual for future reference Installation and service must be performed by a qualified installer, DANGER service agency, or the gas supplier.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, CSA B149.2, as applicable. The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa). -
Page 3: Specifications
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS The LP-gas supply cylinder to be used must be constructed and marked in accordance with the U.S. Deparment of Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable. -
Page 4: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY 1 pc Lava rock (6.6 lbs / pack) 2 pack 1 pc 1 pc Table top assembly Weather cover 1 pc 1 pc Front panel Door handle 1 pc Natural gas orifice 1 pc Door panel Back panel... - Page 5 ASSEMBLY INSTRUCTIONS 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product.
- Page 6 4. Attach right panel (F) to front-right leg (G) and back-right leg (J) with bolts (AA) and washer (CC) using hex screw driver (DD), (see Figure 4). NOTE: DO NOT tighten the screws completely. Hardware Used: Bolts (M6 x 15) Washer (M6) Hex screw driver Figure 4...
- Page 7 6. Attach gas cylinder support (K) to back-left leg (I) and back-right leg (J) and front-left leg (H) and front-right leg (G) with bolts (BB) and washer (CC) using hex screw driver (DD), (see Figure 6). NOTE: Tighten all screws completely. Hardware Used: Bolts (M6 x 25) Washer (M6)
- Page 8 9. Open the box of lava rocks, put the lava rocks (L) into the fire bowl of the fire table, (see Figure 9). A gas fire pit requires 13.2 lbs lava rocks. WARNING: Keep children away during assembly, as this item contains lava rock, which are small pieces and can be swallowed by children.
- Page 9 10. Open the door panel (D). Place the gas cylinder into the gas cylinder support (K) and connect the regulator by turning the black handle clockwise to tighten. To remove the regulator, turn the black handle counter-clockwise. Secure the gas cylinder by tightening clockwise the retention point found on gas cylinder support (K), (see Figure 10), so that the gas cylinder cannot move from side to side or fall down.
-
Page 10: Natural Gas Conversion
STOP STOP NATURAL GAS CONVERSION Natural gas conversion must be performed only by natural gas provider or a service company. 1. Disconnect the propane hose from the gas valve (see Figure 12). Caution: The propane tank shall be shut off prior to disconnecting the propane hose, before proceeding with the conversion. - Page 11 4. Connect the natural gas hose to the gas valve by screwing clockwise tightly (see Figure 15). Plug the natural gas fixture into the natural gas supply system (see Figure 16). The conversion kit should be CSA certified. Below are several suggested CSA certified conversion kits for your reference.
- Page 12 BATTERY Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignitor module located on the control panel to access the battery compartment. The ignitor module requires one AAA size battery, (see Figure 18). BATTERY IS NOT INCLUDED.
-
Page 13: Lighting Instructions
gas valve / regulator hose connection (Figure 22) inlet tube / bellows connection (Figure 23) To perform a leak test: 1. Make 2~3 oz. of leak solution by mixing one part liquid dishwasher detergent and three parts water. Noted: make sure control knob is “OFF”. -
Page 14: Care And Maintenance
Observe Flame Height When Lit: The burner will display blue and yellow flames. These flames should be a blue / yellow color between 1~2 in. height, (see Figure 25). These flames should not be yellow or produce thick smoke. This would indicate an obstruction of airflow through the burners. The flames should be blue with straight yellow tops. Good Yellow Yellow... -
Page 15: Replacement Parts List
REPLACEMENT PARTS LIST Firepit round lid, 530mm x 9 L-530 Table top assembly F210020-B Front panel F210020-C Door panel F210020-D Back panel F210020-E Right panel F210020-F Front-right leg F210020-G Front-left leg F210020-H Back-left leg F210020-I Back-right leg F210020-J F210020-K Gas cylinder support Firepit lava rock (red), 6.6 lbs x 2 EFP-LVRK-13.2 Weather cover... -
Page 16: Warranty
WARRANTY Firepits Burner, steel fire pit bowl, all mechanical parts and fittings to control panel and burner assembly, and all fire pit tops that are not cast aluminum are warranted for a period of one (1) year from original date of purchase, against defects in material and or workmanship.
