- Page 1 DAC-8 Affordable High-End DAC USER’S MANUAL...
-
Page 2: Table Of Contents
........................... 8 Specifications ..........................10 Quick Start Guide .......................... . 11 Display ............................Rear Panel ............................13 IIS / DSD Pin define ........................Remote Control ..........................NuPrime’s Limited Warranty and Limitation of Liabilities .............17 www.nuprimeaudio.com... -
Page 3: Fcc Notice - Declaration Of Conformity Information Nf
FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Eu Declaration Of Conformity
Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA. -
Page 5: Safety Instructions
Safety Instructions There are two categories of Safety Instructions included in this manual: • Product Warnings, (i.e., what must never be done to assure avoiding those hazards that • could cause bodily injury or property damage); and • User Directions (i.e., what must always be done to assure the safe use of your device). The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words. - Page 6 WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself. WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
- Page 7 Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent.
- Page 8 1⁄32768 of its 16-bit resolution). The same music in DSD64 (2.8 MHz sampling rate) format takes up about 20% more storage space than 24-bit/96kHz format. The NuPrime DAC-8 is designed to faithfully reproduce the music irrespective of the format used.
-
Page 9: Lntroduction
Introduction With eight digital (including 2 x IIS/DSD) inputs , RCA stereo output, and decoding capability of PCM 384K, DSD256, the NuPrime DAC-8 is an affordable high-end DAC designed for audiophiles. Main features: • NuPrime SRC IC chip (co-developed with IC vendor) provides DSP processing where Input signals are up-sampled to megahertz before down converted to the targeted sampling rate with ultra-low jitter and distortion. - Page 10 NuPrime Extension Port NuPrime defined an USB Type-A port to carry S/PDIF data and 5V power for connecting to external wireless audio receiver using just one standard USB cable. The NuPrime Omnia WR-1, BTR-HD, Stream Mini, and Stream Mini DAC wireless receivers have a micro USB port that is compatible this specification.
-
Page 11: Specifications
Specifications: Inputs : Rear panel • USB : Type B 2.0 Hi-Speed, Windows OS : data stream up to 384KHz/24Bit and Native DSD 256. Type B 2.0 Hi-Speed, Mac / Lunix OS : data stream up to 384KHz/24Bit and DOP DSD 128. •... -
Page 12: Quick Start Guide

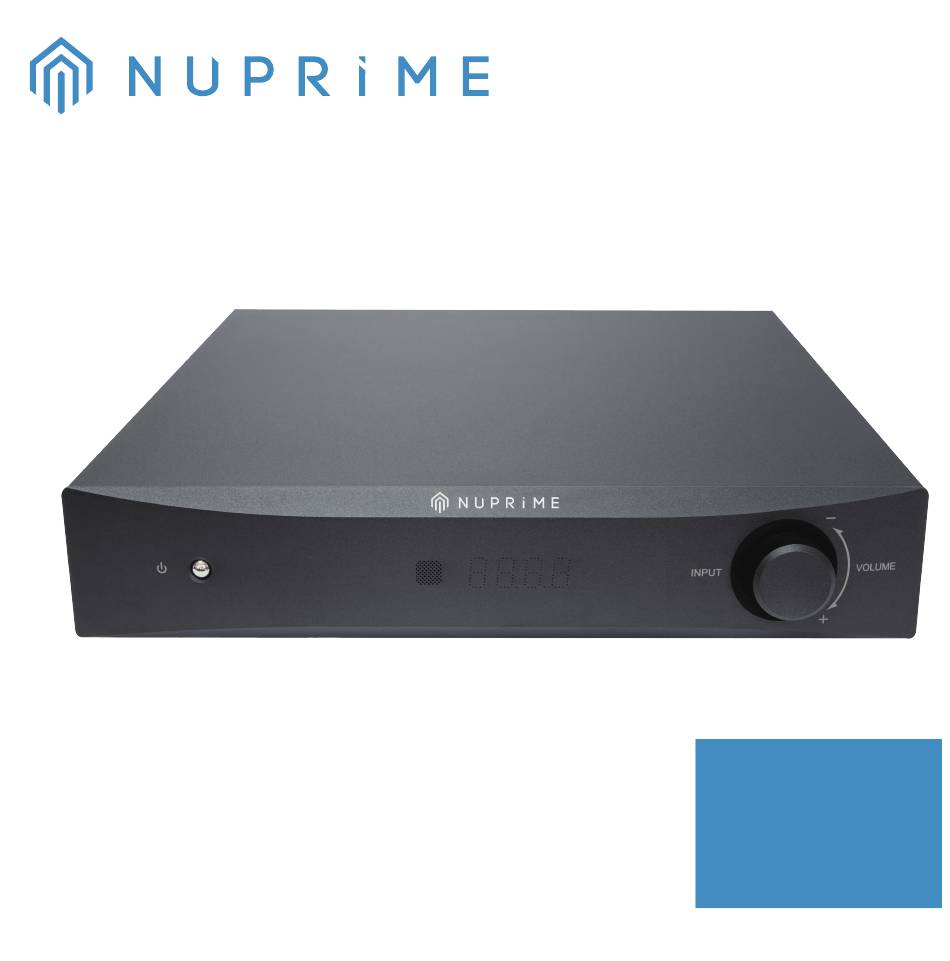

Quick Start Guide Front Panel Power: Briefly press for 3 sec to On/Off standby mode Remote IR receiver Display Volume control: Turn the knob clockwise to increase volume Turn the knbo counterwise to decrease volume Briefly press the knob to input selection www.nuprimeaudio.com... -
Page 13: Display
Display PCM Sample rate: DSD Sample rate : 44.1 d2.8 (64) d5.6 (128) 88.2 d11.2 (256) 176.4 352.8 Volume display: Inputs Display: 00 ~ 99 C1: Coaxial input O1: Optical input C2: Coaxial input O2: Optical input U: USB input E: Extension port input H1: IIS/DSD Digital H2: IIS/DSD Digital... -
Page 14: Rear Panel
Rear Panel WIFI Router NuPrime STREAM-9 S(I) S(II) Extension STREAM-mini / BTR-HD NuPrime CDT-8 IIS/DSD Digital Output www.nuprimeaudio.com... - Page 15 H1&H2: IIS/DSD Digital input With HDMI cable to transfer IIS and DSD data from NuPrime source devices. Do not connect to the HDMI output of Set Top Box or BD / DVD player. Note: DAC-8 does not guarantee that all NAS will operate and be compatible due to wide variety of brands and custom specs.
-
Page 16: Iis / Dsd Pin Define
PIN10 : NC PIN15 : NC PIN5 : GND Note : DAC-8 does not guarantee that all IIS/DSD source will operate and be compatible due to wide variety of brands and custom specs. Others : AC Inlet : Connect the supplied mains lead to the AC IN (115V or 230 V) terminal on the rear of the DAC. -
Page 17: Remote Control
Remote Control • Toggle power STANDBY and ON • DIS:Sample Rate • Ch+:Input selection next channel • Ch-:Input selection previous channel • Vol +:Volume up • Vol -:Volume down • C: Coaxial 1 & Coaxial 2 input selection • O: Optical 1 & Optical2 input selection •... -
Page 18: Nuprime's Limited Warranty And Limitation Of Liabilities
If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product. - Page 19 When a refund is given, your product becomes NuPrime's property. OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product.
