Micro Id MF61 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MF61
Access Control
User Manual
2012.09.26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF61 and is the answer not in the manual?

Questions and answers

Summary of Contents for Micro Id MF61

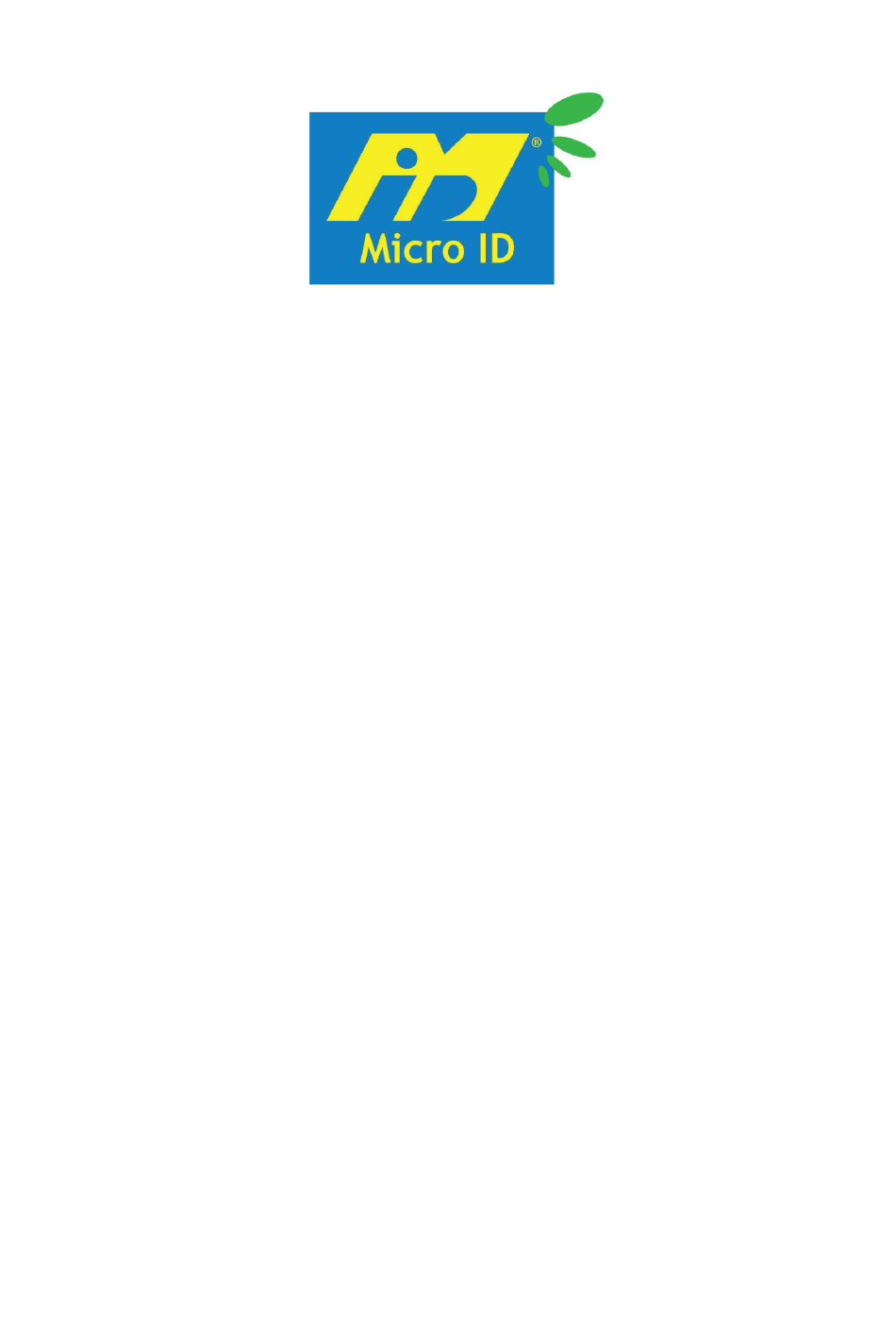

  • Page 1 MF61 Access Control User Manual 2012.09.26...

  • Page 2: Table Of Contents

    5.1.4 Inactivate User account to MF61 system ....................13 5.2 System Setup ..............................14 5.2.1 Date and Time：Setup time, date and weekday for MF61 ..............14 5.2.2 Admin setup: modify admin password and setup certain user to be system administrator ...... 15 5.2.2.1 Modify system administrator log in password ................
  • Page 3 5.3.3 IP Config：Reset to default IP ........................ 20 5.4 Misc..................................21 5.4.1 User and log: display registry user account number and log entry amount ..........21 6、Technical information for MF61 series ........................22 6.1 Physical features ............................22 6.2 Power consumption ............................. 22 6.3 Environment..............................

  • Page 4: 1、About Mf61 Access Controllers

    1、About MF61 access controllers MF61 series is designed for both access controls to secure work places like parking space, lift & floor control and time attendance, overtime with personal ID authentication and Time attendance, overtime, shift, rotation. 2、Main Features 2.1 Features ⚫...

  • Page 5: Access Control

    ➢ Web based access log report extraction (TXT and XLS). ➢ Software based log extraction. 2.2.5 Verification mode ➢ MF61 series provide 6 verification mode for user account, including 1.Fingerprint 2.RFID Card 3.Password 4.Fingerprint and Password 5.Fingerprint or Password 6.Fingerprint and Mifare card – for Mifare Terminal only) ➢...

  • Page 6: 3、On Screen Display Setup

    3、On screen display setup: Standby Screen Wednesday , Oct-26 10：20 Scan Card Press“F1”twice Press ”# ” Card Wednesday , Oct-26 Wednesday , Oct-26 Present Manager： No.：0123456789 10：20 10：20 Employee ID：A001 Name：John Verify in progress… ID number： 驗證完成 Verify is succeed Log in with Put finger to be scan Input ID number...

  • Page 7: 4、User Account Menu

    4、User Account menu 4.1 Fingerprint verification Wednesday , Oct-26 10：20 Scan fingerprint Wednesday , Oct-26 10：20 … Verify in progress.. Failure Succeed Card Wednesday , Oct-26 No.：0123456789 10：20 Employee ID：A001 Name：John Verify failed Verify succeed ☞ Function Key : ☞ Operation mode ：Activate administrator menu A.

  • Page 8: Password Verification

    4.2 Password verification Wednesday , Oct-26 10：20 Press # for 1：1 Wednesday , Oct-26 Wednesday , Oct-26 10：20 10：20 ID err ID No. ID is not found ID Registry Wednesday , Oct-26 10：20 pass： Password Error Password OK Name：E041 Wednesday , Oct-26 Mary 10：20 ID No.：11647520...

  • Page 9: Rfid Card Verification

    4.3 RFID Card verification ☞ Verification mode： Scan card directly over terminal Wednesday , Oct-26 Note：1. When Function key applied, Press Function key +“＃”for 1:N fingerprint verification 10：20 2. When user name is required to be display on MF631/MF670 LCD, registry user account name over Software or Web Server is 1：N verification needed.

  • Page 10: Fingerprint Or Password Verification

    ☞ Verification mode： ☞ Function key： A：Scan card and fingerprint over terminal ：Enable administrator menu ～ Input admin password ： Delete (Backspace) ＃ Press＃to confirm 3333 ＃ ：Confirm to process B：1：N mode : Less than 1,000 user account (Free scan mode enabled) ＊...

  • Page 11: 5、 Administrator Operation Menu

    5、 Administrator operation menu Administrator menu offers registration, modification, delete user account, and system setup. Access to administration mode by double pressing F1 key over terminal. Wednesday , Oct-26 10：20 Double press“F1” Present Manager Default is “111111” ****** Password OK Password error 1.User Present Manager：...

  • Page 12: User

    5.1 User 5.1.1 Add User：Enroll new user to terminal 5.1.1.1 Enroll fingerprint to system 1.Add User 2.Delete User 3.Activate User 4.Inactivate User Press“1 ☞ Operation： ” ～ Press 1 for add user 1.Single Registry ～ 2.Continual Registry Input user ID ＃...

  • Page 13: Registry Password

    5.1.1.2 Registry Password ☞ Operation： 1.Add User 2.Delete User Press 1 to add user ～ 3.Activate User 4.Inactivate User ～ Input ID Press“1 ” ＃ Press＃ to confirm 1.Single 2.Continue ＊ Press ＊ to cancel card registry ＊ Press＊取 to cancel fp registry ＃...

  • Page 14: Registry Card

    5.1.1.3 Registry Card ☞ Operation： 1.Add user 2.Delete user ～ Press 1 to add user 3.Activate user 4.Inactivate user Add User ID Press“1 Scan card ” 1.Single ＊ Press＊to cancel fingerprint registry 2.Continue ＊ Press＊to cancel password registry ＃ Press＃to confirm Input User ID: XXXXXX Registry card...

  • Page 15: Delete User：delete Single User

    Deleted User not registry ：Delete (Backspace) ＃ ：Confirm ＊ ：Cancel/Return ～ ：Numeric 5.1.3 Activate user account for MF61 system ☞ Operation： 1.Add user ～ Press 3 to activate user 2.Delete user 3.Activate user Input ID or Scan card 4.Inactivate user ～...

  • Page 16: Inactivate User Account To Mf61 System

    5.1.4 Inactivate User account to MF61 system ☞ Operation： 1.Add user Press 4 to inactivate user ～ 2.Delete user 3.Activate user Input ID or scan card 4.Inactivate user ～ Press“4 Press #to confirm when input ＃ ” ID over keypad Scan card..

  • Page 17: System Setup

    5.2 System Setup 5.2.1 Date and Time：Setup time, date and weekday for MF61 ☞ Operation： Press 1 to set system time 1.Date and Time ～ 2.Administrator setup Input time format as 3.IP address ～ HHMMSS 請以24小時格式輸入 ＃ Press＃ to confirm Press“1...

  • Page 18: Admin Setup: Modify Admin Password And Setup Certain User To Be System Administrator

    5.2.2 Admin setup: modify admin password and setup certain user to be system administrator 5.2.2.1 Modify system administrator log in password ☞ Operation： 1.Date and Time 2.Administrator Press 2 for Administrator ～ 3.IP config setup ～ Press 1 to modify admin password Press “3”...

  • Page 19: Set Manager

    5.2.2.2 Set manager 5.2.2.2.1 Set manager to system：5 Users can be assigned for administrator for system 1.Date and Time ☞ Operation： 2.Set manager 3.IP config ～ Press 2 to set manager ～ Press 2 to configure user Press“2 Press 1 to confirm new ”...

  • Page 20: Delete Manager：delete Manager For System

    5.2.2.2.2 Delete manager：Delete manager for system ☞ Operation： 1.Date and Time 2.Set manager ～ Press 2 to set manager 3.IP config function ～ Press 2 to set manager Press“3 ～ Press 2 to delete manager 1.Set P/W ” 2.Set manager Input ID or scan card ～...

  • Page 21: Ip Configure: Setup Ip Address For Mf61 System

    5.2.3 IP Configure: Setup IP address for MF61 system ☞ Operation： ～ Press 4 to set IP 1.Date and Time 2.Set manager Input IP、Subnet mask、 ～ 3.IP config Gateway ＃ Press＃to confirm Press 4 Press * Note：IP, Subnet mask, Default Gateway format as: IP：192168000066...

  • Page 22: System Restore And Delete

    5.3 System restore and delete 5.3.1 Delete all user ☞ Operation： 1.Delete all user ～ Press 1to delete all user 2.Delete all record 3. IP config ＃ Press＃ to confirm Press 1 Delete all user Press * Confirm? ☞ Function key： Yes(#)/No(*) ：Enable administrator menu Press #...

  • Page 23: Ip Config：reset To Default Ip

    5.3.3 IP Config：Reset to default IP 1.Delete all user ☞ Operation： 2.Delete all record ～ 3. IP config Press 3 to set to default IP ＃ press＃to confirm Press 3 Set to default IP Press * Confirm? Yes(#)/No(*) ☞ Function key： Press # ：Enable administrator menu Please Wait…...

  • Page 24: Misc

    5.4 Misc. 5.4.1 User and log: display registry user account number and log entry amount ☞ Operation： 1.User account number and log ～ Press 1 to check user and log number amount Press 1 ☞ Operation： User： 00066 ：Enable administrator menu LOG：...

  • Page 25: 6、Technical Information For Mf61 Series

    6、Technical information for MF61 series 6.1 Physical features ➢ CPU board ➢ Keypad/LCD ➢ Fingerprint Module (BF-630W) 6.2 Power consumption 6.2.1 Voltage ➢ +9V--+30V DC 6.2.2 Currency ➢ General power consumption： 600mA, 12V /avg. ➢ Max power consumption：800mA, 12V 6.3 Environment 6.3.1 Temperature and Humidity...

  • Page 26: Log Capacity

    ➢ Up to 65536 log entries 6.8 Dimension ➢ CPU board：109mm(H) X 82mm(W) ➢ LCD/Keypad：106mm(H) X 82mm(W) ➢ MF61 : 125mm(H) X 145mm(W) X 33(D) 6.9 Weight ➢ 340g 6.10 Fingerprint template size (BF-630W only) ➢ 256 ~ 384 bytes 6.11 Input...
