Summary of Contents for Hored RD-S800QCPE

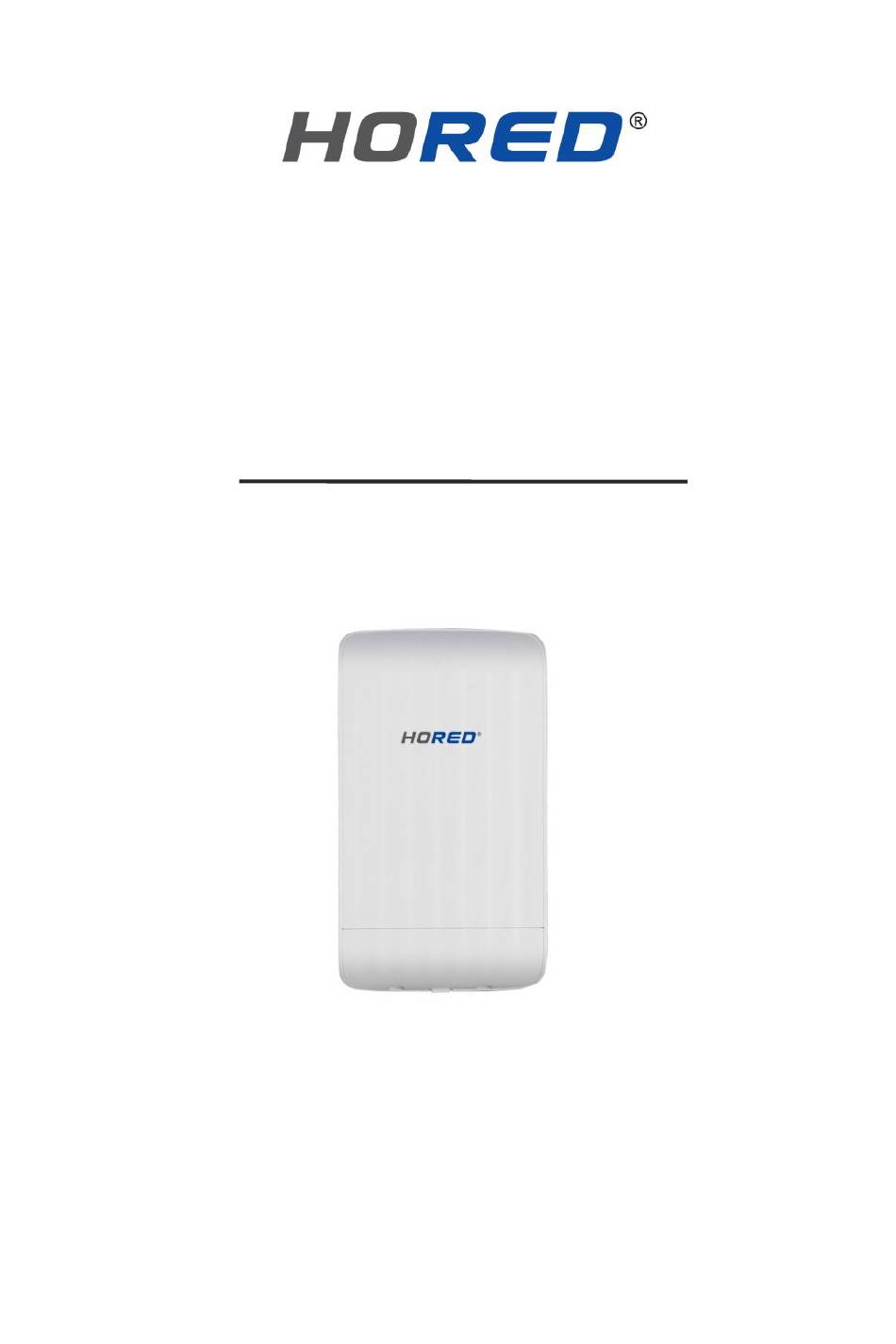

- Page 1 RD-S800QCPE User Manual...
- Page 2 1. Introduction .RD-S800QCPE is a 5G wireless bridge developed by HORED. The maximum wireless speed is 300Mbps, and the farthest transmission distance is 5KM, more suitable for long-distance environment. Point-to-point wireless internet transmission help you save lots of wire network cost. Support PoE power supply, it makes the installation more simple and quick.
- Page 3 Flashing indicates data transmission; Signal strength The more lights that are lit, the stronger the indicator signal is. 1.3Interface Description HORED bridge interface description follows, specific please in kind prevail!. Reset button.: Press and hold for 5-10 seconds to reset the system.
- Page 4 thePoE power input port for connecting to the PoE port of the PoE power adapter. LAN2 port, RJ45 port, can be used to connect switches. Chapter 2 Configure Connections...
- Page 5 2.1 Method one: Automatic connection (default) A pair of bridges in the same box is configured by default at the factory and can be used after plugging in. No configuration is required. Applicable to a simple environment, only a pair of bridges around, point to point.
- Page 6 the corresponding subnet mask: ⑵ Open a browser, enter http://192.168.248.1 in the address bar and press Enter to log in to the web management interface. To ensure a good user experience, it is recommended to use the latest version of Chrome // Firefox browser: ⑶...
- Page 7 ⑷The interface will be showed as below after you login successfully. ⑸Configure the connection...
- Page 8 Chapter3 Cautions 3.1 Installation Notes Fengrunda wireless bridge installation should pay attention to the following two points Height In the course of wireless transmission, obstacles such as trees, tall buildings, and large-scale reinforced buildings will weaken wireless signals. To improve the wireless transmission performance and prevent the signal from being blocked, please ensure that there is no obstruction in the line of sight between the wireless CPEs during installation.
- Page 9 can use Google Maps, GPS, and other tools, combined with the horizontal lobe width of the CPE device to roughly determine the orientation of the CPE. 3.2 Configuration instructions The pairing IDs of the master and slave must be the same. The default is consistent and does not need to be changed.
- Page 10 consistent. The default is the same and no change is needed. The main bridge signal indicator on the slave side is on, indicating that the bridge is successful. During the manual configuration process, you can use the Quick Installation or the Manual Scan feature to facilitate configuration and connection.
-
Page 11: Chapter4 Product Specification
Chapter4 Product Specification Qualcomm Industrial Chipset Flash 8Mbyte 64MB DDR2 Frequency 5.15~5.25GHz、5.735~5.835GHz Wireless 802.11a/n Standards Wireless Speeds Up to 300Mbps Transmission MAX 20dBm Power Maximum 5KM(point to point) transmission Stable bandwidth up to 90M (no interference distance environment) Multi-port Support 2 ports above; Default setting point to transmission point... - Page 12 receive sensitivity Up to -97dBm 2 10/100M adaptive LAN ports, LAN1 support Port 24V PoE power supply reset (long press 5-10 seconds to restore Button default setting) Radio signal: all bright signal best LAN indicator light: the bright represents the connection;...
- Page 13 Operating Temperature: : -30°C~55°C Storage Temperature: : -40℃～70℃ Operating Humidity: 10% ~ 90%RH Environment condensation Storage Humidity: 90%RH condensing Support power on at -40℃ The leading provider of data transmission products and services Shenzhen Fengrunda Technology Co.,Ltd.
