Summary of Contents for BAS-IP SH-20.4

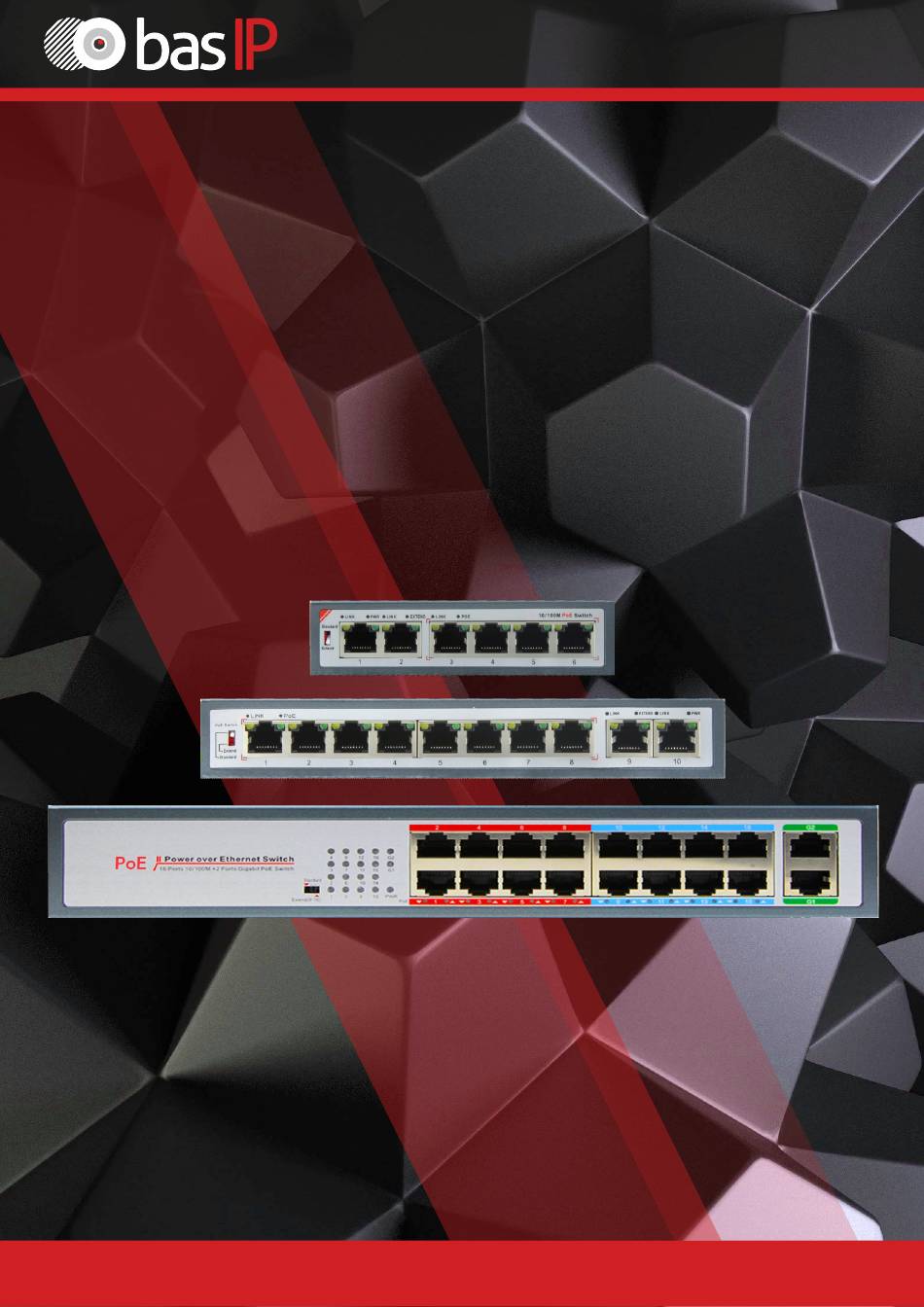

- Page 1 USER MANUAL SH-20.4/8/16 POE SWITCH...
- Page 2 The maximum cable length when connecting to ports with PoE: 100 meters. Power supply: External 48 V 1.25 A (included). Dimensions: 118 × 95 × 28 mm. POE SWITCH SH-20.4 Full User Manual wiki.bas-ip.com Device description 10/100Base-TX unmanaged PoE switch for connecting network devices supporting Power over Ethernet technology.
- Page 3 Power supply: External 48 V 3 A (included). Dimensions: 190.5 × 105 × 29 mm. POE SWITCH SH-20.8 Full User Manual wiki.bas-ip.com Device description 10/100Base-TX unmanaged PoE switch for connecting network devices supporting Power over Ethernet technology. 8 x PoE IEEE802.3af ports, 2 x 10/100M Uplink ports.
- Page 4 Power supply: Internal. Dimensions: 270 × 181 × 44.5 mm. POE SWITCH SH-20.16 Full User Manual wiki.bas-ip.com Device description 10/100Base-TX unmanaged PoE switch for connecting network devices supporting Power over Ethernet technology. 16 x PoE IEEE802.3af ports, 2 x 10/100M/1000M Uplink ports.
- Page 5 Warranty The warranty card number Model name Serial number Seller name With following stated terms of warranty is familiar, functional test was performed in my presence: Customer signature Warranty conditions The warranty period of the product — 36 (thirty-six) months from the date of sale.
- Page 6 Notes...
- Page 7 Notes...
- Page 8 www.bas-ip.com...
