RAD MINI 5.8G VTX
Summary:

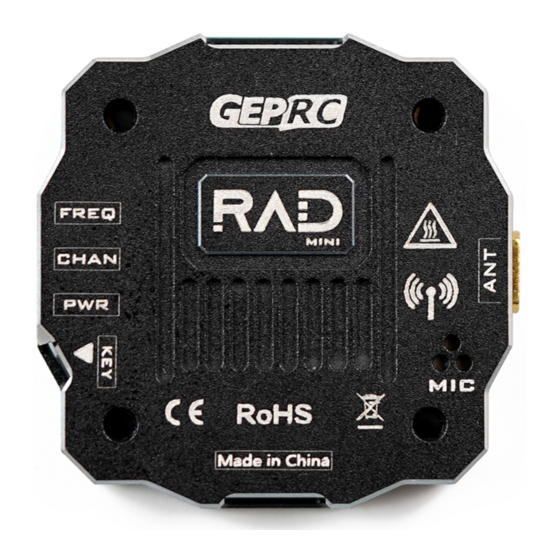

RAD MINI VTX is the latest 1W high-power VTX developed by GEPRC.It has 4 adjustable power
levels and a maximum power of 1000mW,with a stable transmission signal,suitable for short and
medium range flight to ensure image transmission quality.
RAD MINI adopts 6061 high-strength aluminum alloy shell to assist in heat dissipation,which has
stronger impact resistance and better heat dissipation.
IRC Tramp protocol,OSD settings adjustment,Built-in microphone can provide a real-time sound
transmission.
7-28V wide voltage input,with temperature control protection function to prevent overheating and
burnout.
With 20x20mm PCB mounting hole,and the diameter of single hole is 3.05mm.The aluminum alloy
shell can be removed and installed as a stack.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAD MINI 5.8G VTX and is the answer not in the manual?

Questions and answers

Related Manuals for GEPRC RAD MINI 5.8G VTX

Summary of Contents for GEPRC RAD MINI 5.8G VTX

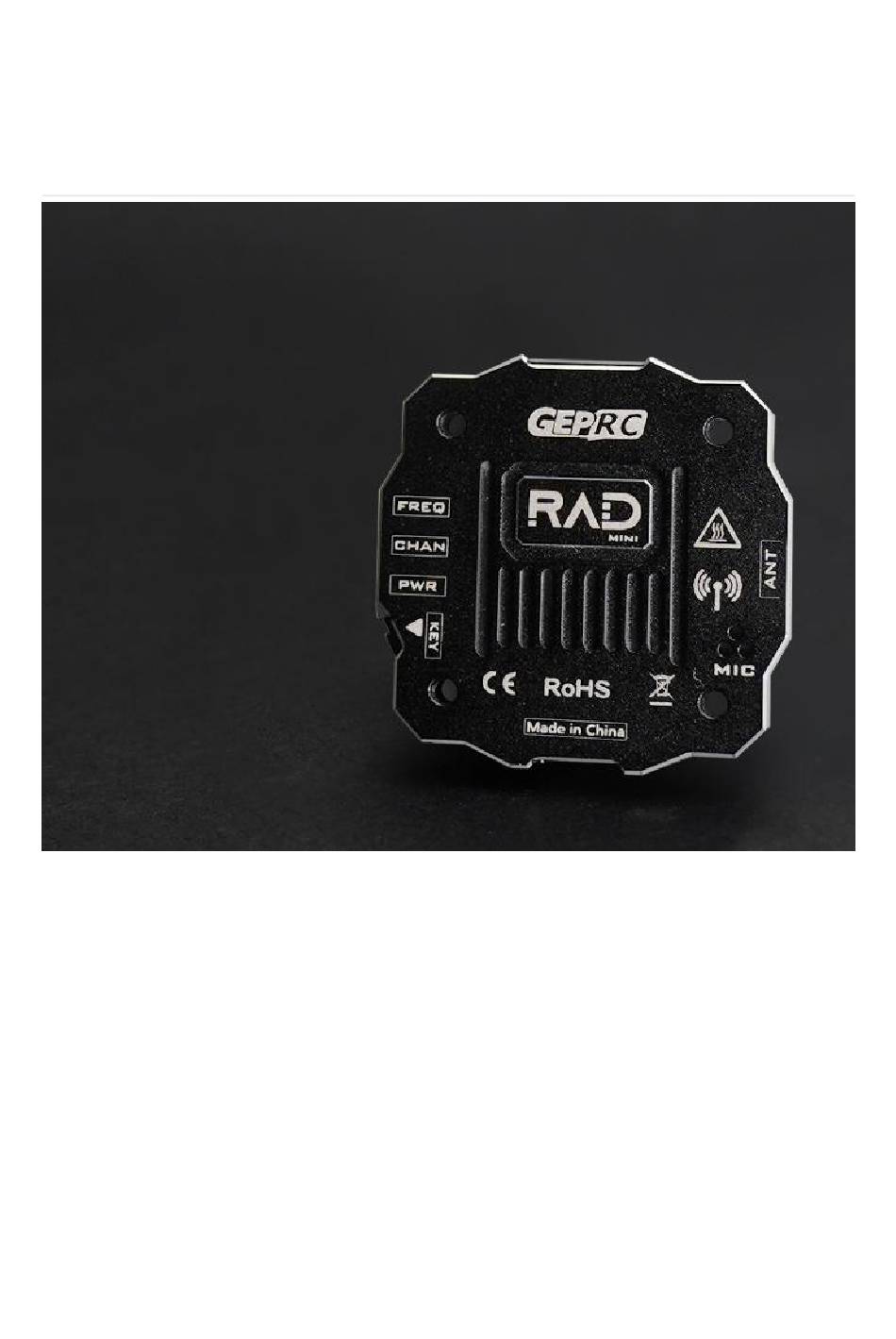

  • Page 1 RAD MINI 5.8G VTX Summary: RAD MINI VTX is the latest 1W high-power VTX developed by GEPRC.It has 4 adjustable power levels and a maximum power of 1000mW,with a stable transmission signal,suitable for short and medium range flight to ensure image transmission quality.

  • Page 2: Specification

    20X20 holes. Pay attention to insulation when installing,the PCB side down, and pad with four nylon spacers for installation. (included in the package) Specification: Model：GEPRC RAD MINI 5.8G 1W VTX  Input voltage：DC7-28V（2-6S Battery） ...
  • Page 3 8. Built-in microphone can provide a real-time sound transmission. 9. One adjustment button, three indicator lights, easy to operate Includes： 1 x GEPRC RAD MINI 5.8G 1W VTX Copper tube antenna MMCX 80mm MMCX to SMA（Internal foramen）connector 1 x SH.0 5pin VTX cable(100MM) 1 x SH1.0 to SH1.25 camera cable(65MM)

  • Page 4: Adjustment Method

    Connection Diagram Regional Frequency Band: Blue, green, and red lights, flashing once at the same time represents the universal regional frequency band; flashing twice at the same time represents the US FCC frequency band; flashing three times at the same time represents the European EU frequency band. Adjustment method: Long press the function button for 8 seconds and then release, three LEDs will flash at the same time,...
  • Page 5 the flashing times represent different regional bands. Channel Universal regional （BAND） 5845MH 5825MH 5725MH 1，A（BOSCAM） 5865MHz 5805MHz 5785MHz 5765MHz 5745MHz 5752MH 5771MH 5866MH 2，B（BOSCAM） 5733MHz 5790MHz 5809MHz 5828MHz 5847MHz 5685MH 5665MH 5945MH 3，E（BOSCAM） 5705MHz 5645MHz 5885MHz 5905MHz 5925MHz 5760MH 5780MH 5880MH 4，F（FATSHARK) 5740MHz...
  • Page 6 5880MH 4，F（FATSHARK) 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5917MH 5，R（RACEBAND) 5658MHz 5695MHz 5732MHz 5769MHz 5806MHz 5843MHz 5880MHz Channel EU Frequency Band （BAND） 1，A（BOSCAM） 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5745MHz 2，B（BOSCAM） 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz 3，F（FATSHARK) 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5860MHz 4，R（RACEBAND)
  • Page 7 input to the 5V output port, otherwise the VTX will be seriously damaged. WARNING 1.When using this product, please comply with local radio laws and regulations, and use the local permitted frequency band and channel. 2. To prolong the service life of the VTX, please install the antenna before power on. 3.
